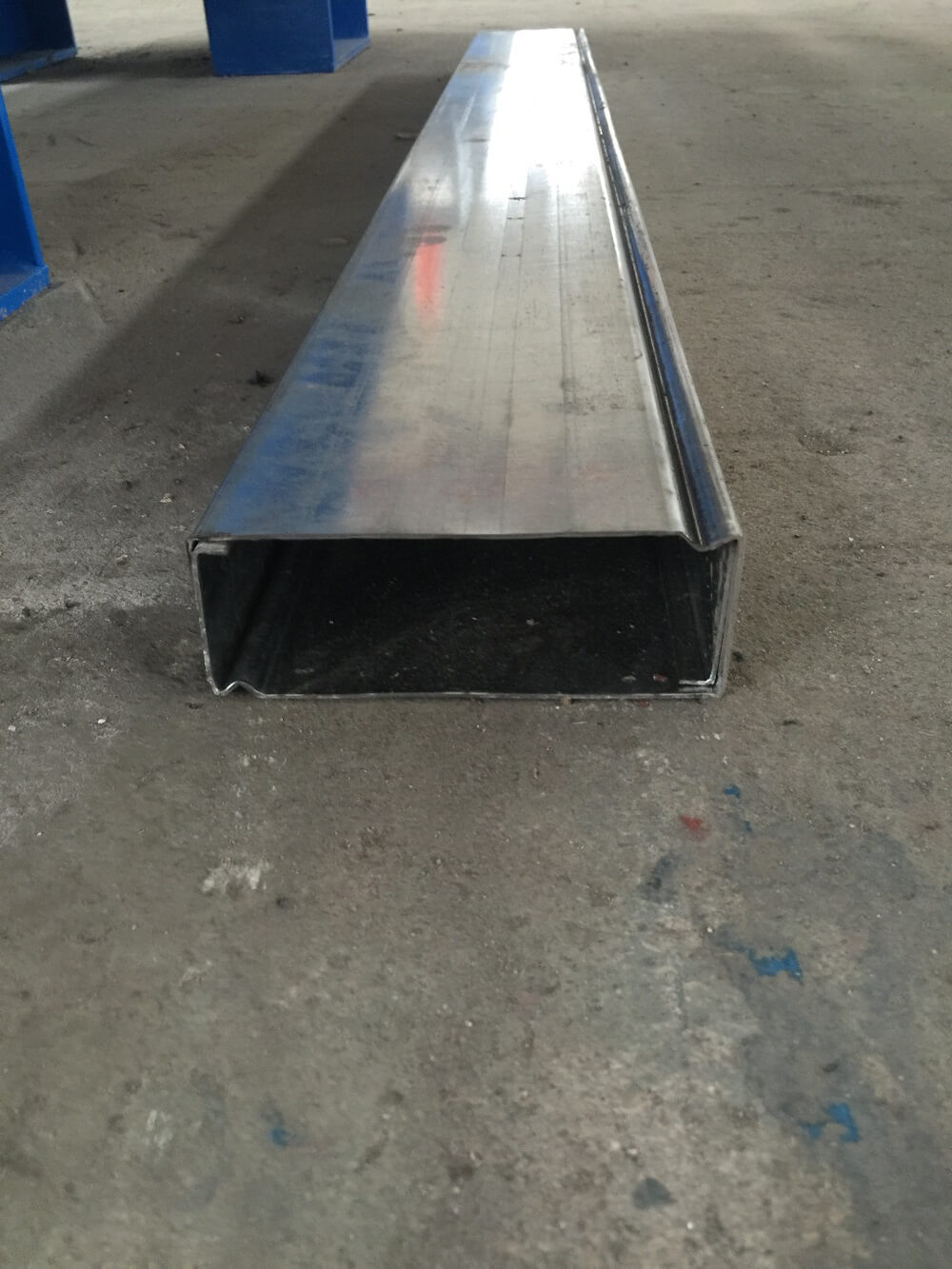

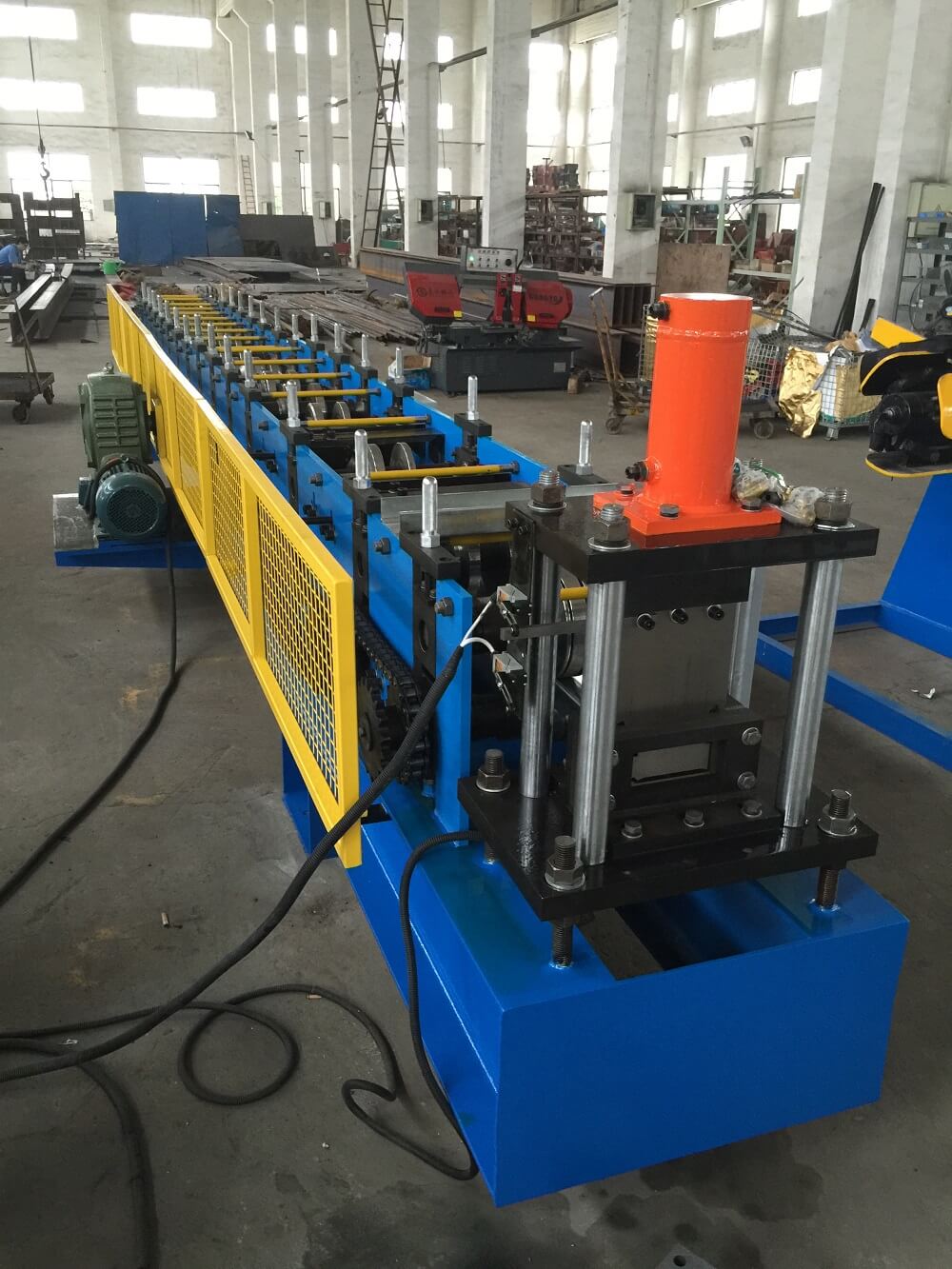

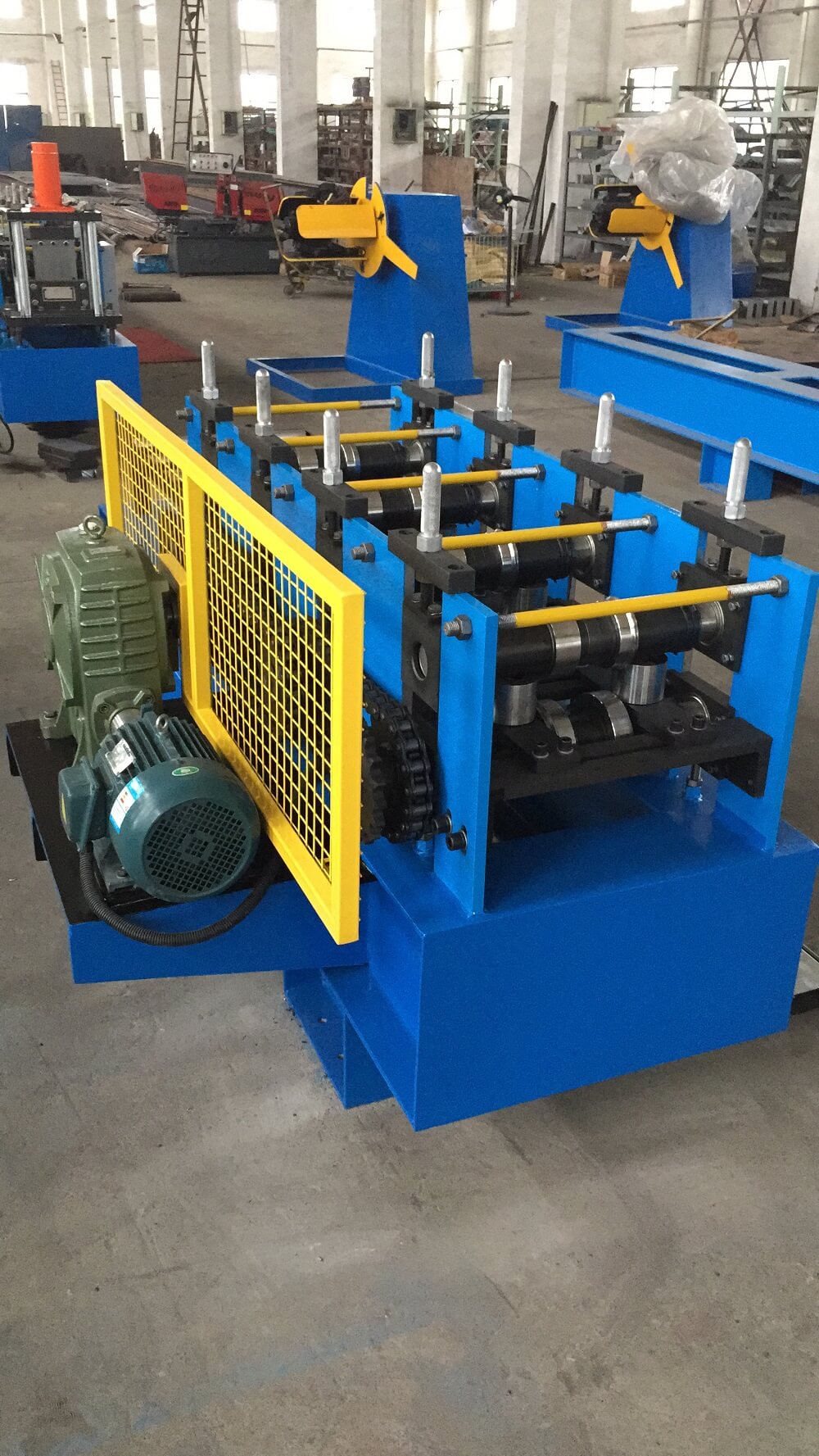

Box Beam Forming Machine
Box Beam Forming Machine
Box Beam Forming Machine
Box Beam Forming Machine
Box Beam Forming Machine
Box Beam Forming Machine
Jingshirui is one of the toppest roll forming machines,c profile forming machine,Box Beam Forming Machine in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets
  • Advantage
  • Customer Comment
Technical Details
Machine Specifications
Weight About 5500kgs
Size About 8m x 1.6m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 1.5mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations about 16
Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min
Forming rollers material GR15 with quench treatment

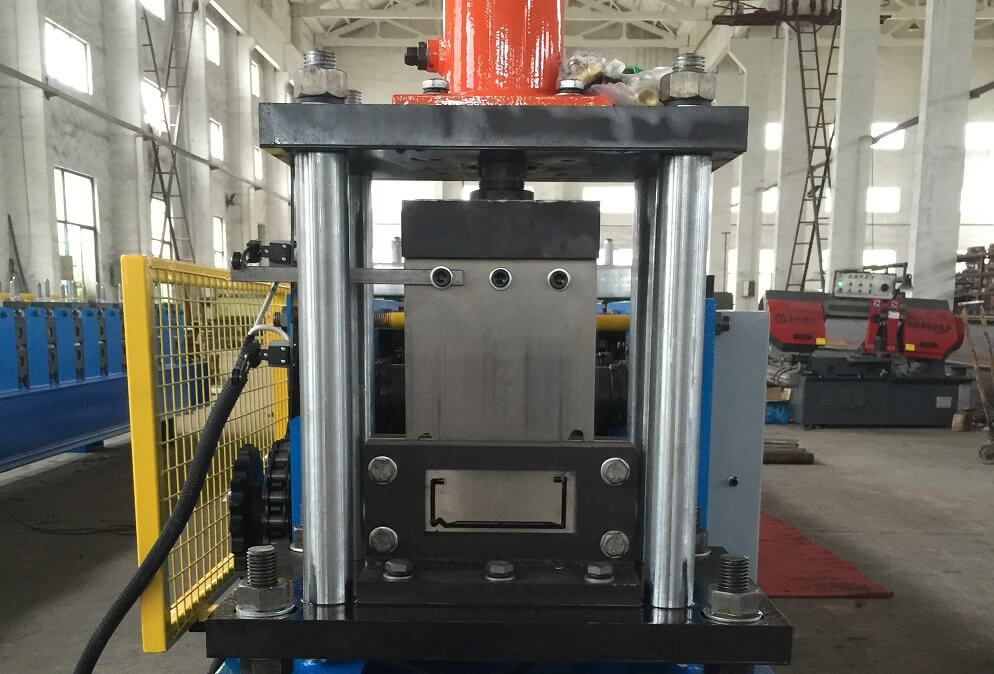

Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: about11kw
Hydraulic unit motor power: about 5.5kw
Electric voltage According to customer’s requirement

  • Layout drawing of machine for reference

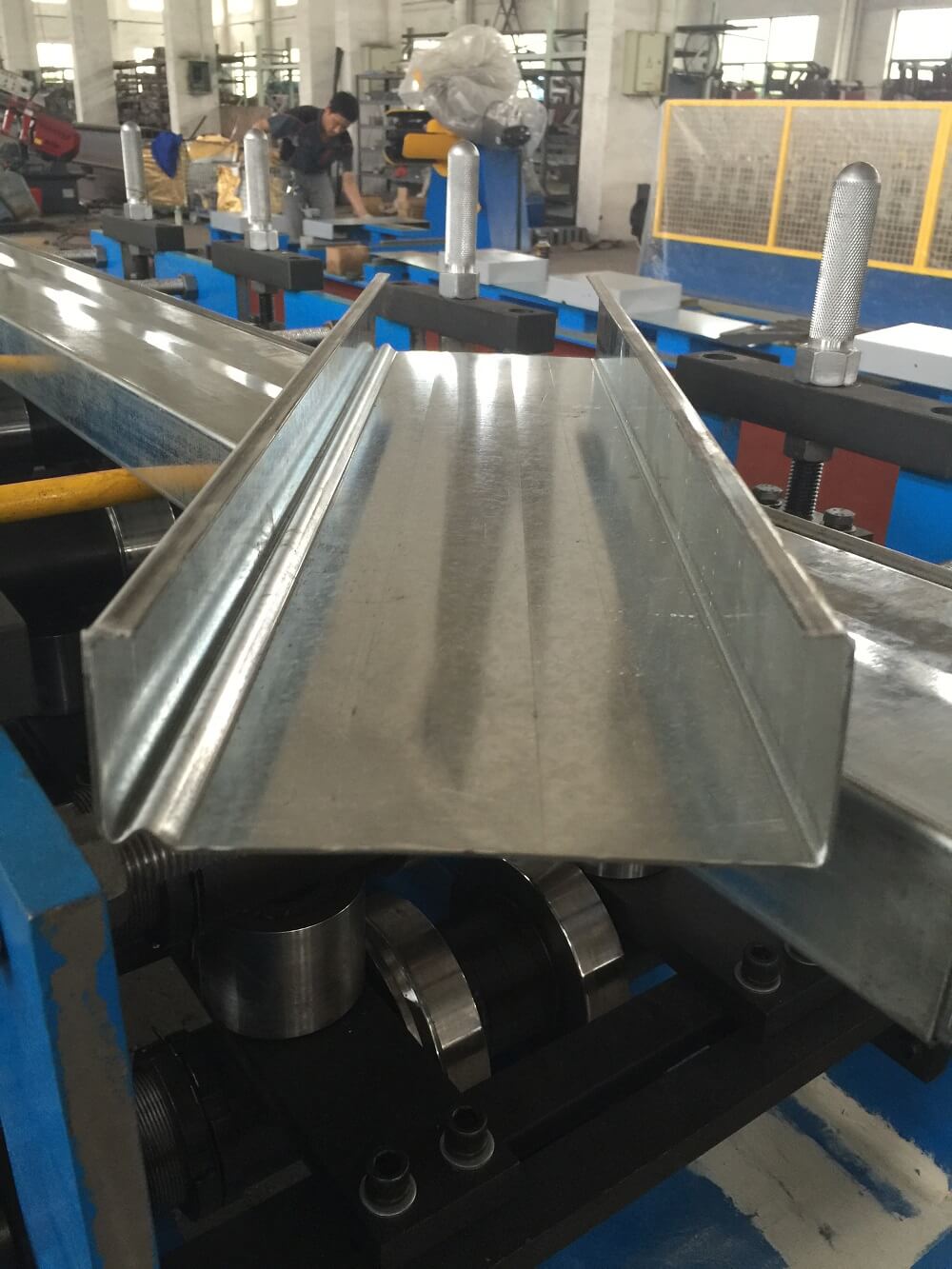

  • Special rollers design, more precise and solid
  • Shaft diameter: 55mm or more, according to profile
  • Wall plate thickness 18mm
  • Mitsubishi PLC and converter
  • Tool box and technical support



  • India Customer
  • Australia Customer
  • South America Customer
