C Purlin Forming Machine
Jingshirui is one of the toppest roll forming machinery,rail forming machines,C Purlin Forming Machine in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets
  • Advantage
  • Popular profile
  • Application
  • Customer Comment
  • working video in customer factory
Technical Details
Machine Specifications
Weight About 6000kgs
Size About 7m x 1.4m x 1.8m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 1.5mm
Coil width According to products size
Yield strength 235Mpa
Main Technical Parameters

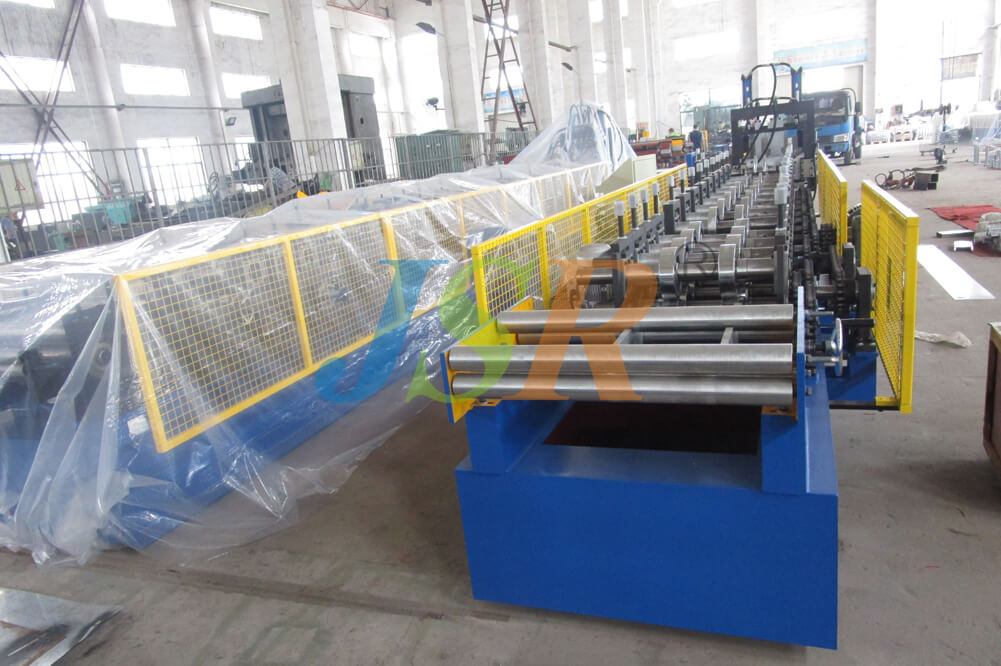

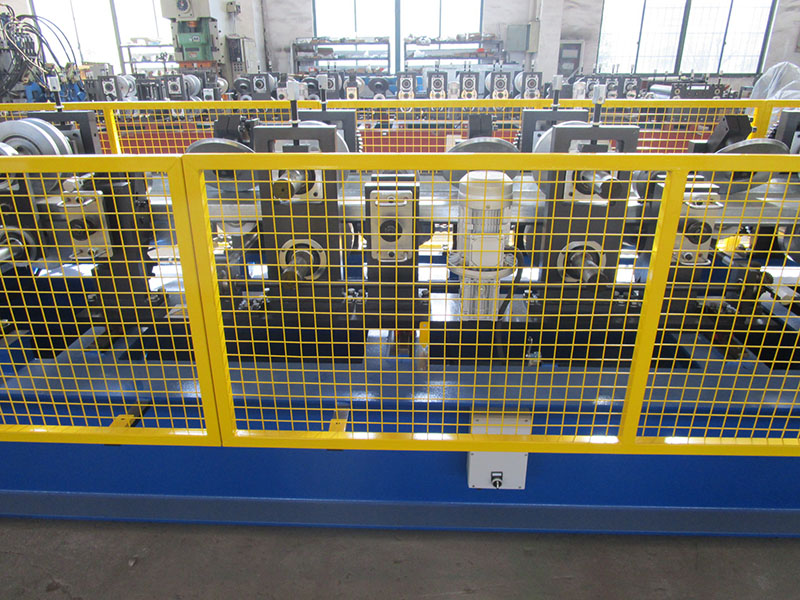

Quantity of forming rollers stations 14-16
Diameter of forming rollers shafts 75mm
Roll Forming Speed 10-15m/min
Production Speed 4-6m/min
Forming rollers material GCR15 mould steel, with quenched treatment

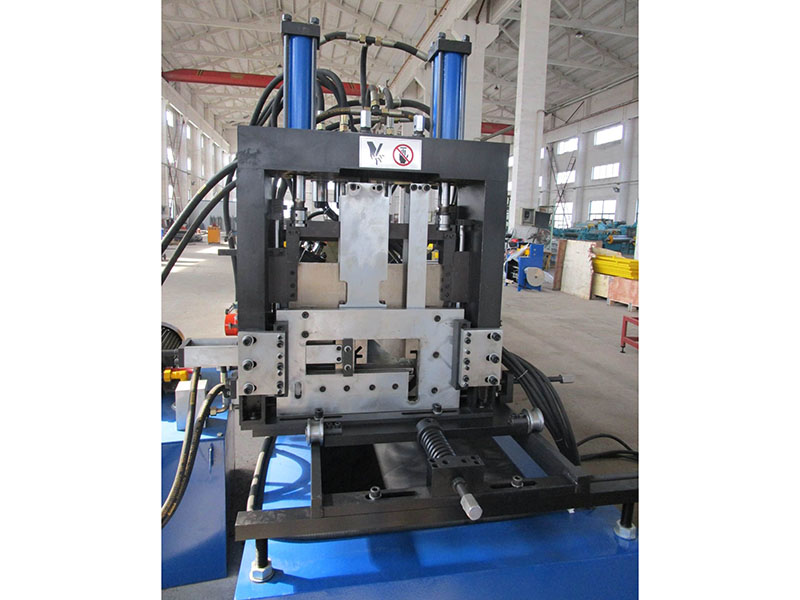

Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric power requirement Main motor power: 15kw
Hydraulic unit motor power: 5.5kw
Electric voltage According to customers requirement


Layout of CZ

Change size within 10 minutes

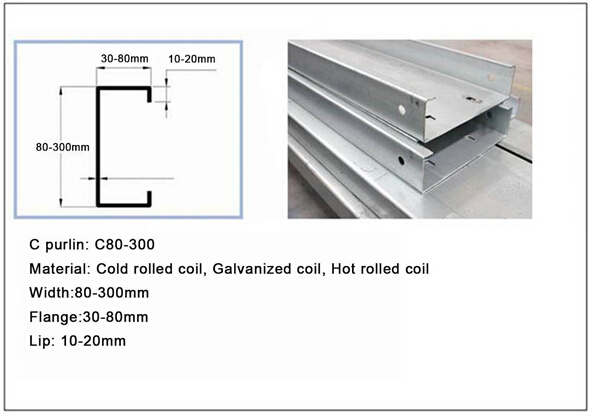

  • C80-300

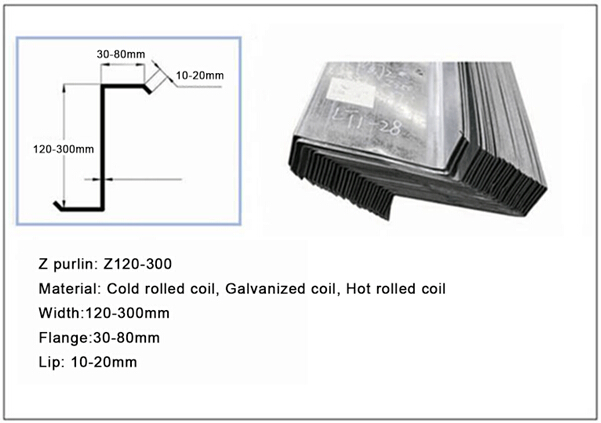

  • Z120-300

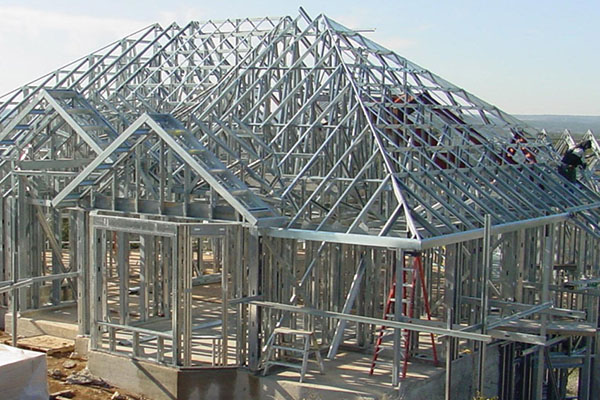

Purlins are quite popular these days and are available in different shapes and sizes, most commonly use as C purlins and Z purlins.
JSR machinery factory make Purlin forming machine, which can produce both C and Z in the same machine, only change one hour to change between C and Z.

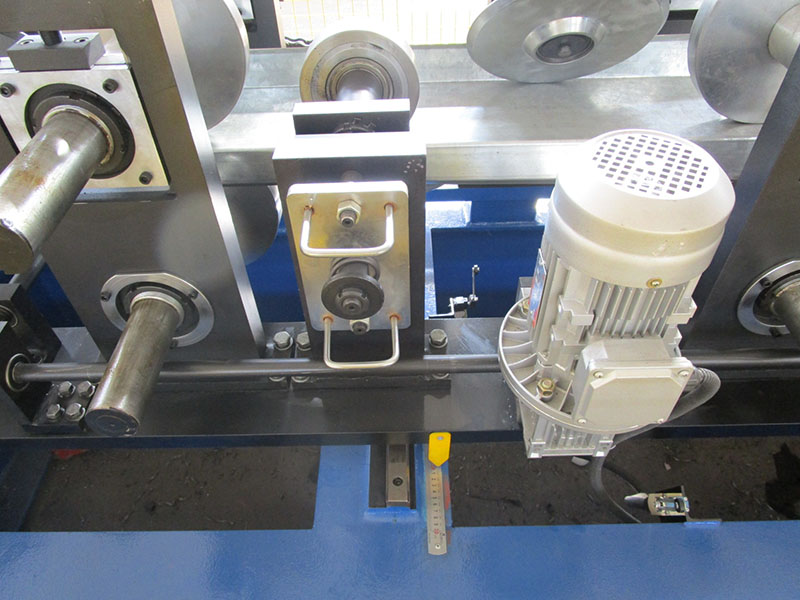

Besides, Purlin machine can produce size between 100-300 with easy adjustment, which take only ten minutes.
Important, our purlin machine can design with punch device with function of punch holes on purlin for screwing during installation.

Operate easily , work automatically with PLC controller control.

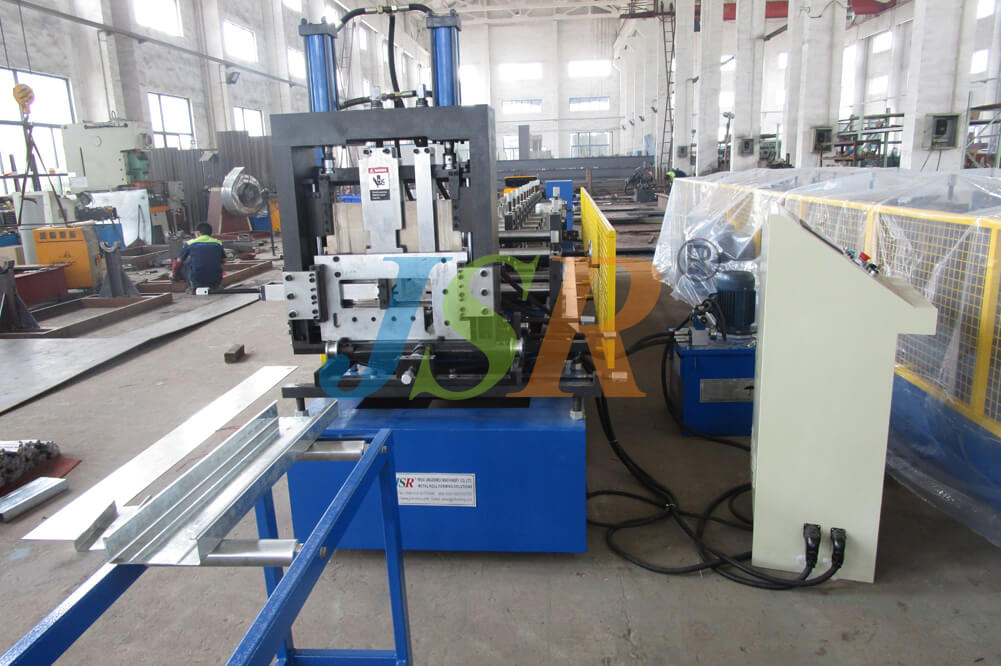

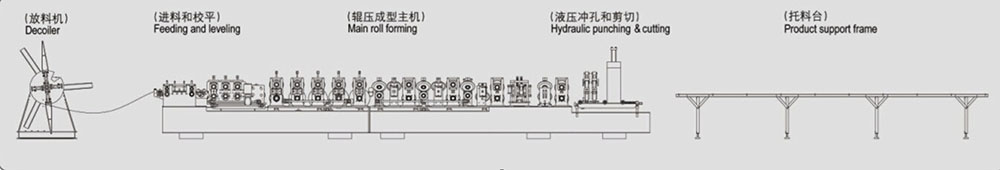

Decoiler- forming- punch - cut - run out


  • India Customer
  • Australia Customer
  • South America Customer

machine makes 3inch to 8 inch c profile in honduaras

cz purlin machine make section height till14 inch in guatemala

standard cz purlin machine in india, 100-300mm and 1.5-3.0 mm thickness

c purlin machine in brazil

cz purlin machine in ghana
