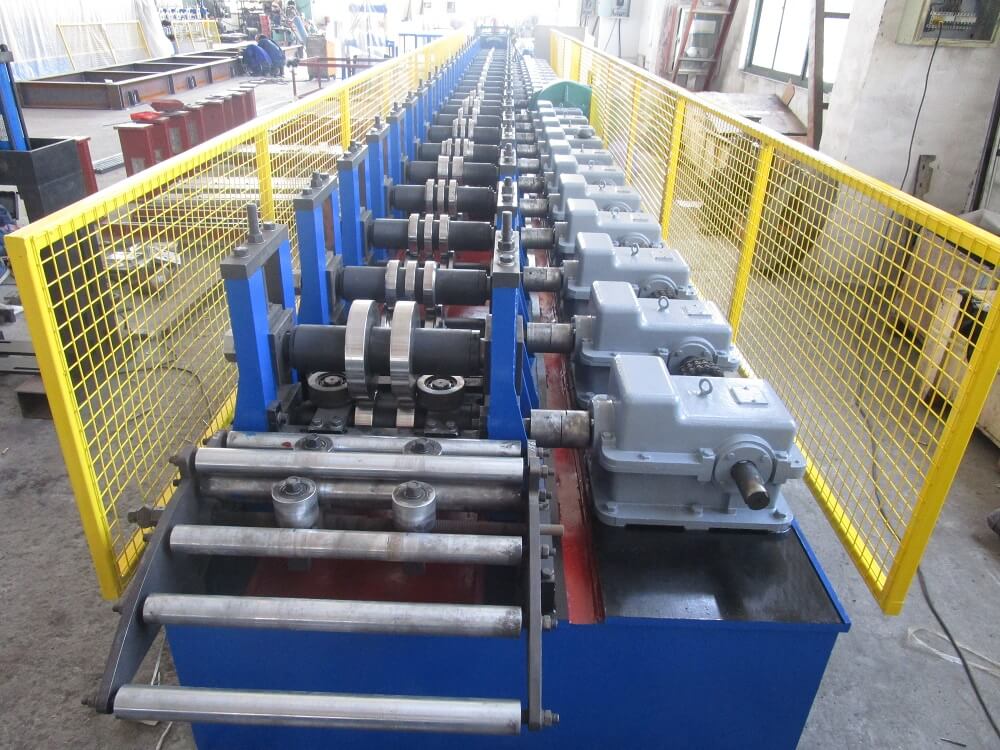

C Strut Channel Forming Machine
C Strut Channel Forming Machine
C Strut Channel Forming Machine
C Strut Channel Forming Machine

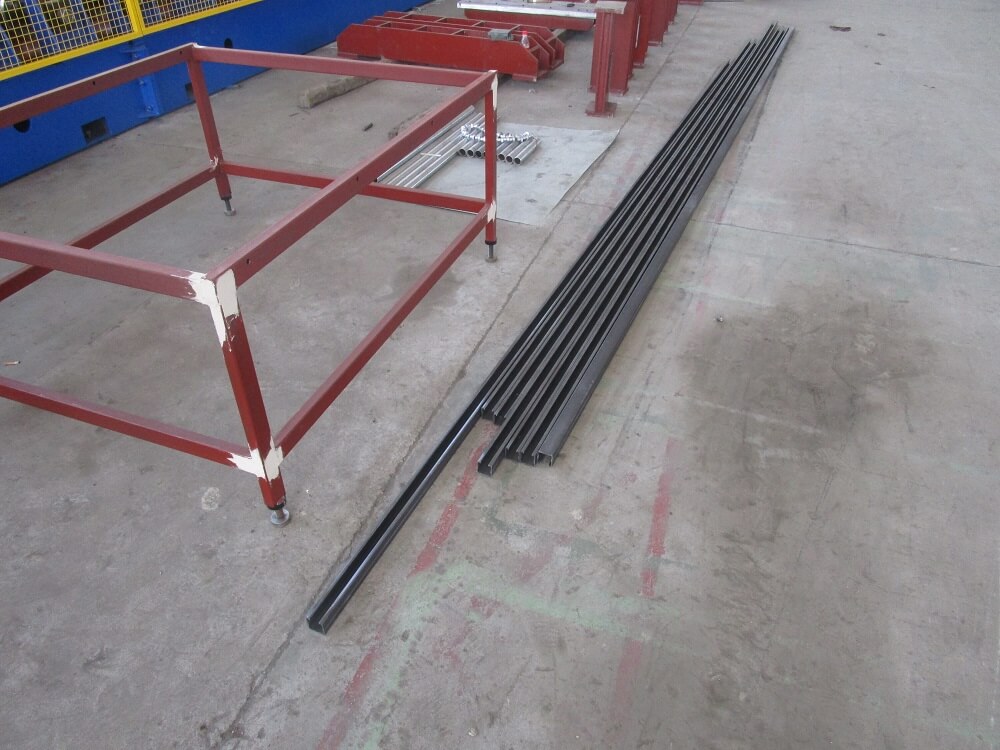

according to requirement of working speed, C Strut Channel Forming Machine can equip with hydraulic punch, working speed 4m/min, with punch machine more than 8m/min. one roll former can make two sizes , 21x41 and 41x41
  • Specification
  • India Customer
  • Australia Customer
  • South America Customer
Technical Details
Machine Specifications
Weight About 10000kgs
Size About 20m x 1.0m x 1.0m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized steel
Thickness 1.5mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 22
Diameter of forming rollers shafts 60mm
Working Speed 4m/min
Forming rollers material Gr15 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: about 22 kw
Hydraulic station Motor 35.5kw

  • Layout drawing of machine for reference

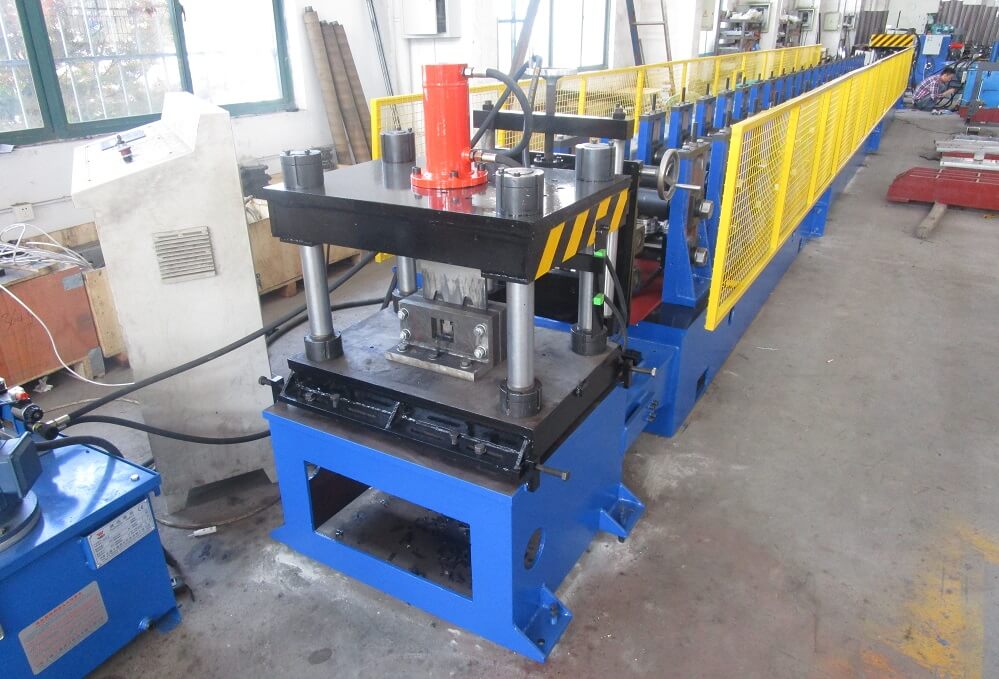

this c strut profile line with HYDRAULIC PUNCH, working speed about 4m/min

and this c profile roll former with punch machine, working speed about 8m/min, if you make loop in the floor , speed faster

above two machines, punch hole before forming,  while this line only form and cut c strut channel shape, workers takes to punch manually. machine working speed about10m/min
