Cable Tray Production Line
Cable Tray Production Line
Cable Tray Production Line
Jingshirui is one of the toppest cable tray making machines,cable tray roll forming machine,Cable Tray Production Line in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets
  • Advantage
  • Popular profile
  • Customer Comment
Technical Details
The Line’s Specifications
Weight About 50000kgs
Whole line’s dimension About 45m x 3m x 1.5m (length x width x height)
Color Main color: green
Warning color: yellow
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 0.6-2.0mm
Coil width According to products size
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations About 24
Diameter of forming rollers shafts 75mm
Roll Forming Speed 10-15m/min
Production Speed 4-6m/min
Forming rollers material Gcr15 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system Panasonic PLC and Yaskawa Converter
Electric Power requirement Main motor power: 4x5.5kw
Hydraulic unit motor power: 5.5kw
Electric voltage

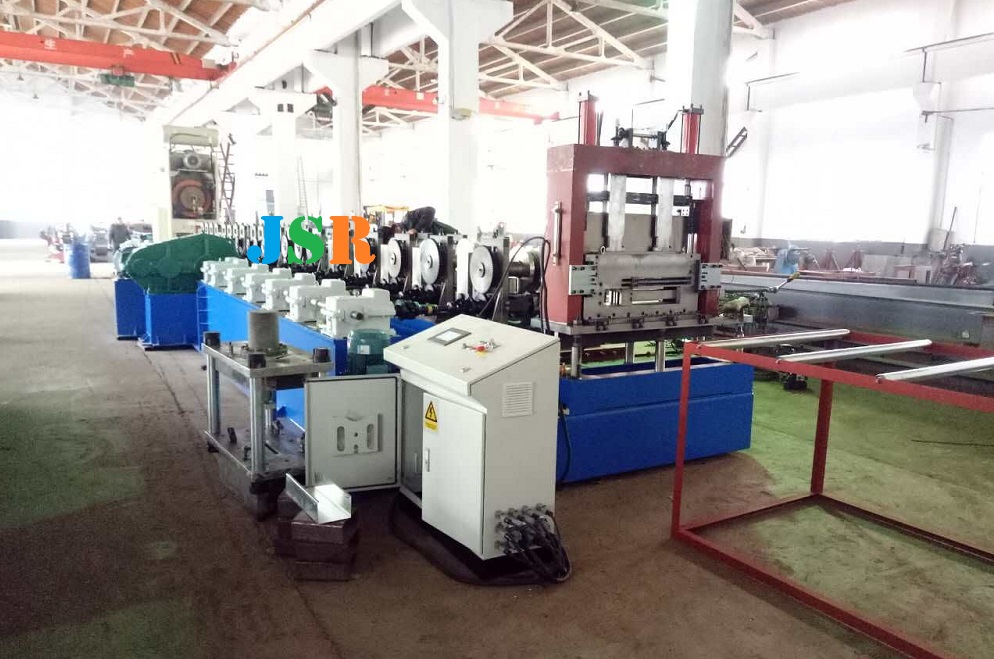

Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Leveling system 1 set
Punching machine 1 set
Roll Forming system 1 set
Hydraulic Cutting system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Run outs tables 1 set


  • Special rollers design, more precise and solid
  • Solid Shaft diameter: 75 mm according to profile
  • Mitsubishi PLC and converter
  • Tool box and technical support

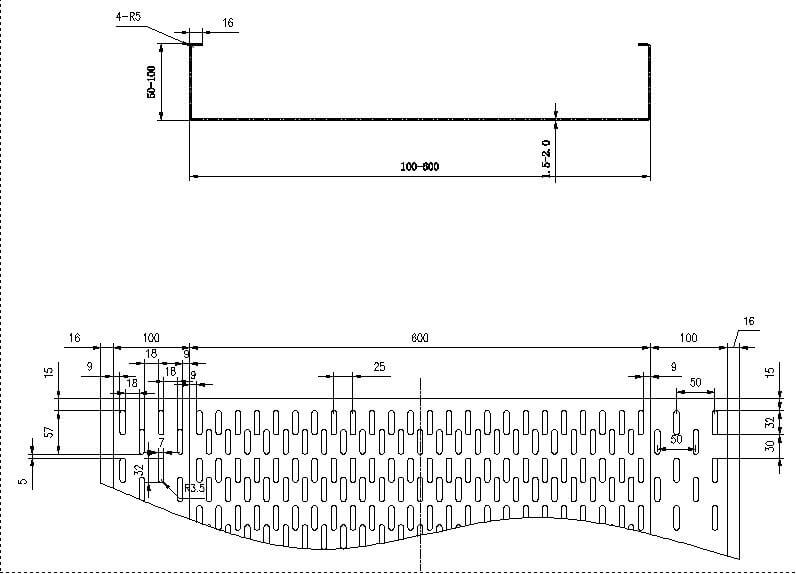

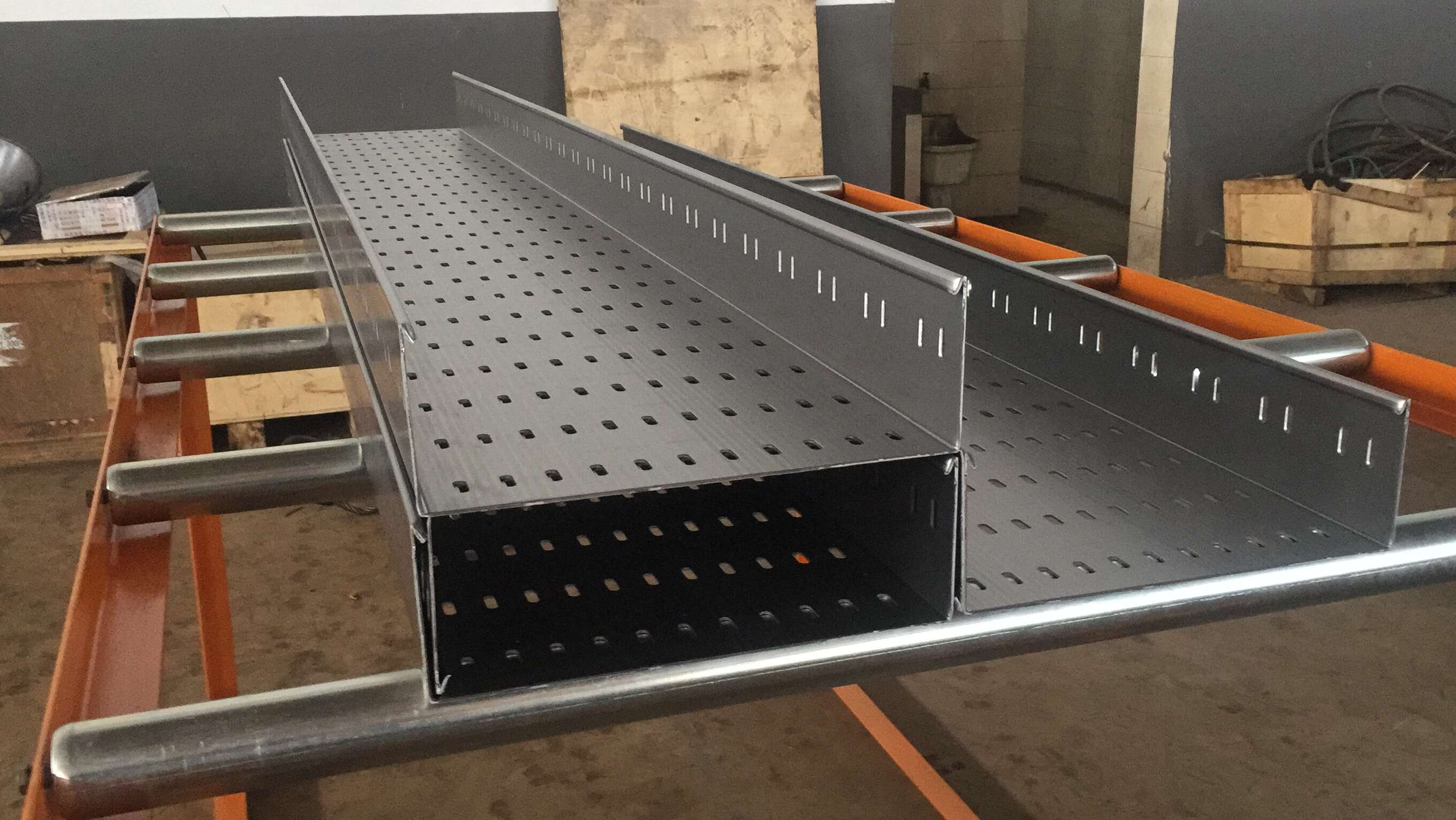

Width 100-600mm  Height 50-100mm
