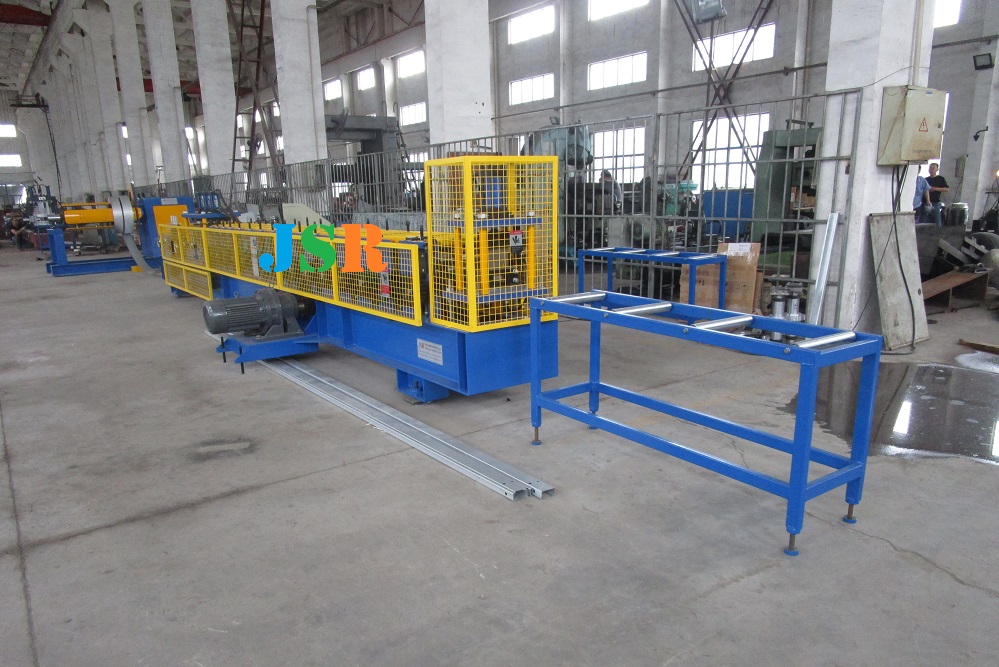

C & G Purlin Forming Machine
C & G Purlin Forming Machine
C & G Purlin Forming Machine
You can buy good quality C & U profile roll former,C & G profile forming machine,C & G purlin forming machine, we are the best distributor from China market.
  • Advantage
  • Specification
  • Customer Comment
  • working video in customer factory

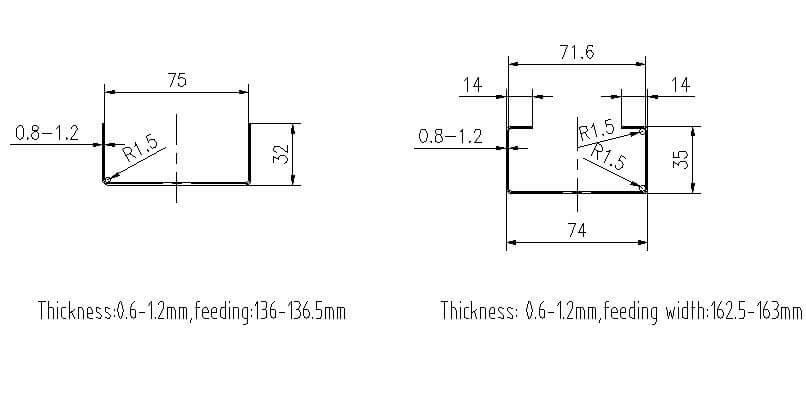

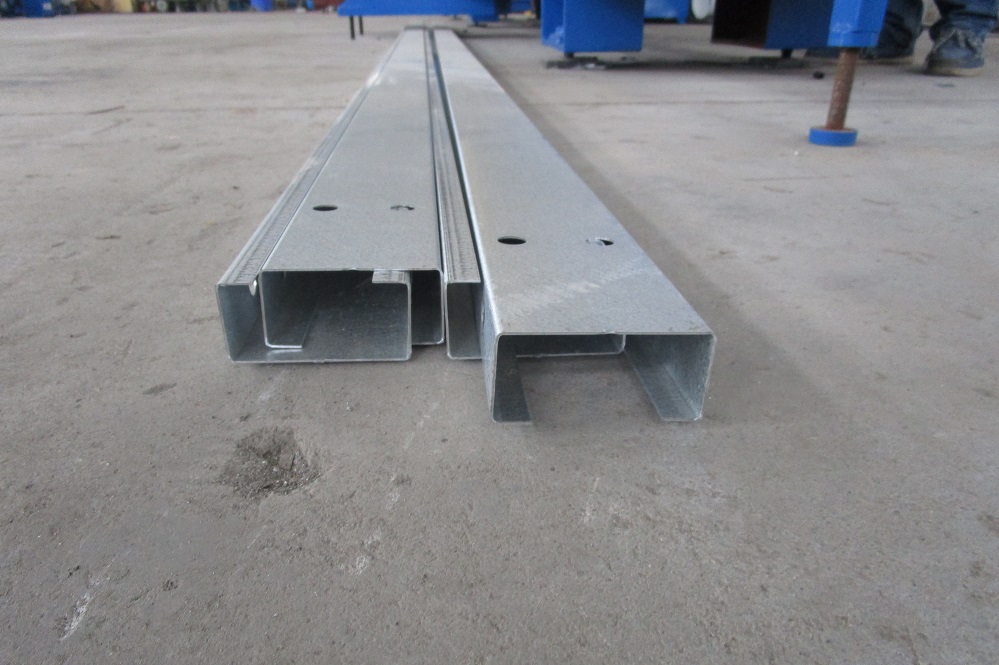

One machine can make C and G by feeding different width raw material,

  • Special rollers design, more precise and solid
  • Shaft diameter: 55mm or more, according to profile
  • Wall plate thickness 18mm
  • Mitsubishi PLC and converter
  • Tool box and technical support



Technical Details
Machine Specifications
Weight About 5500kgs
Size About 8m x 1.6m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 1.5mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations about 16
Diameter of forming rollers shafts 75mm
Roll Forming Speed 15-20m/min
Forming rollers material GR15 with quench treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: about7.5kw
Hydraulic unit motor power: about 11kw
Electric voltage According to customer’s requirement
  • India Customer
  • Australia Customer
  • South America Customer

machine makes 3inch to 8 inch c profile in honduaras

cz purlin machine make section height till14 inch in guatemala

standard cz purlin machine in india, 100-300mm and 1.5-3.0 mm thickness

c purlin machine in brazil

cz purlin machine in ghana
