Cold Formed Steel Box Beams Machine 2020

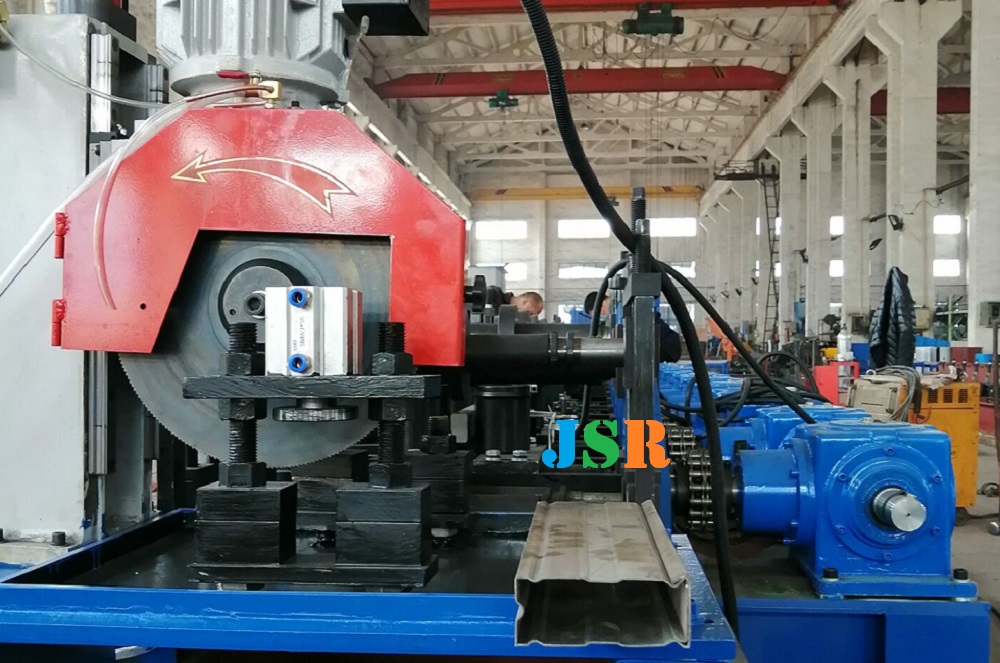

This steel box beams machine make one whole piece of box beam, one step and finished. traditionally, machine make c shape purlin, welding two c purlin together or attached two purlin together.

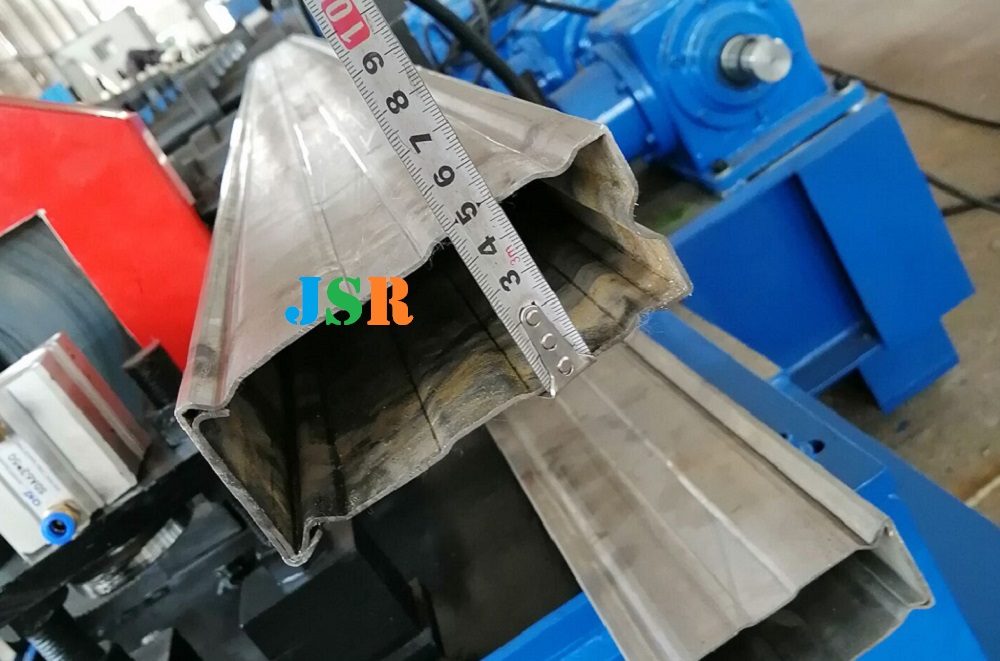

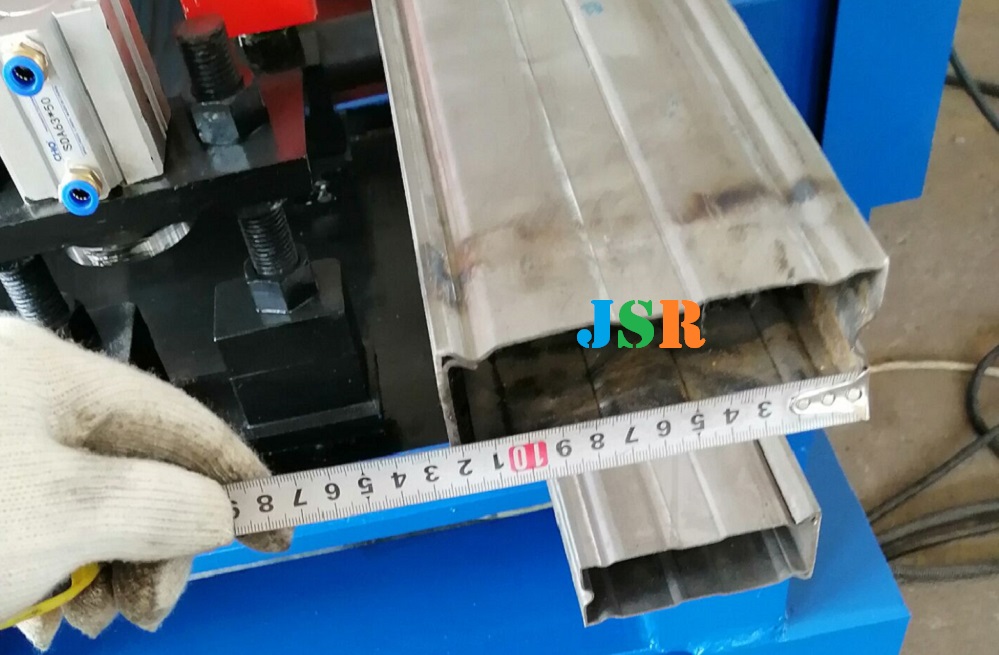

this one whole piece of box beam, save extra work and more stronger and bigger load capicity.
Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 15000kgs |
| Size | About 16m x 1.3m x 1.5m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Stainless steel |
| Thickness | 2mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | ABOUT 26 |
| Diameter of forming rollers shafts | 75mm |
| Working Speed | about 10m/min |
| Forming rollers material | GCR15 mould steel, with quenched treatment |
| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power:22 kw |
| Hydraulic station | Motor 3kw |
-
Special rollers design, more precise and solid
-
Solid Shaft diameter: 60 mm according to profile
-
Mitsubishi PLC and converter
-
Tool box and technical support
-
India Customer
-
Australia Customer
-
South America Customer
