European Style Tile Forming Machine
European Style Tile Forming Machine
European Style Tile Forming Machine
Jingshirui’s Roof Tile Roll Forming Machine Produce Beautiful Steel Sheet Roof Tile, Working Speed about 6m/min
  • Advantage
  • Popular profile
  • Application
  • Customer Comment
  • working video in customer factory
Technical Details
Machine Specifications
Weight About 11000kgs
Size About 11m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
Material Pre-painted Galvanized Steel Coils
Thickness 0.4-0.6mm
Coil width 1220mm
Yield Strength 235Mpa
Main Technical Parameters

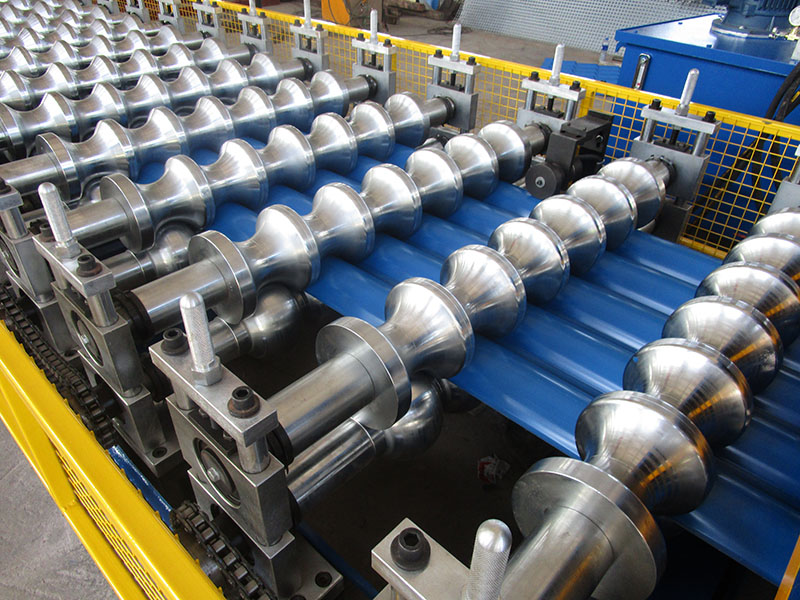

Diameter of forming rollers shafts 75mm
Roll Forming Speed 10-15m/min
Production Speed 6m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5kw
Hydraulic unit motor power: 11kw
Electric voltage According to customer’s requirement

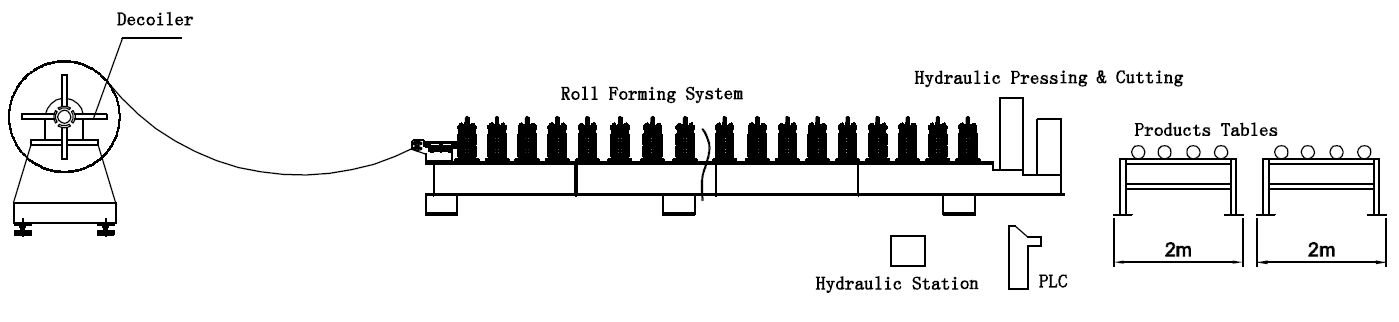

Layout drawing of machine (reference only)

what is very important for roofing tile forming machine?

we think that is each step length tolerance.

only each step length same, when two tile sheet connect left and right will well fixed, will be water proof.

how to make high precision?

control system is important factor.

  • Guide pillar design
  • Sold shaft diameter 75mm
  • Mitsubishi PLC and converter
  • Tool box and technical support

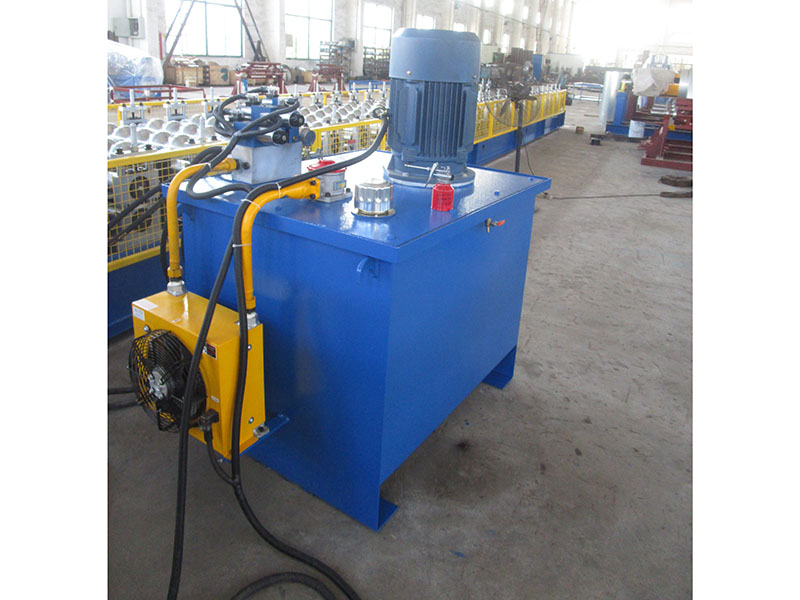

  • 11kw hydraulic station to improve press speed



  • 25-183.3-1100
  • 950 tile profile
  • Metrocopo 900
  • Metrocopo 960
  • metrocopo sheet
  • profile drawing
  • Tile & Roof Profile
  • Tile 800
  • Tile 997.5
  • Tile 1100
  • Tile Profile 833
  • YX29-216-1080
  • YX31-144-1008 Tile
  • YX42-200-1000 tile



JSR tile forming machine can produce steel sheet tile, which is light weight, durable and beautiful.
Now, we improve machine working speed to 4m/min (include press and cut).

Operate easily , work automatically with PLC controller control.
Decoiler- forming- press -cut - run out
