Floor Deck Forming Machine
Floor Deck Forming Machine
Floor deck forming machine well installed and tested before delivery, and we offer you very details install video and instruction book in English, so you can use and start our forming lines immediately. JSR offer you best rollforming machine with our service. we will be always on line to give you technical support and solutions.
  • Advantage
  • Popular profile
  • Application
  • Customer Comment
  • Machine working video in customer factory
Technical Details
Machine Specifications
Weight About 15000kgs
Size About 16m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 0.8-1.2mm
Yield Strength 235Mpa
Main Technical Parameters
Diameter of forming rollers shafts 85mm
Roll Forming Speed 10-15/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 2x11kw
Hydraulic unit motor power: 5.5kw
Electric voltage According to customer's requirement

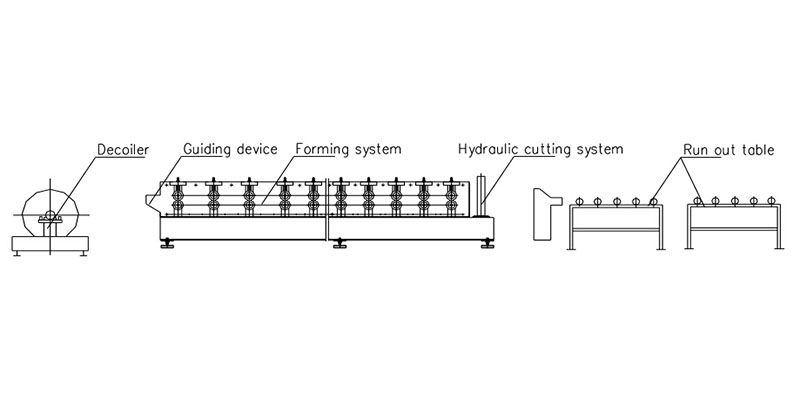

  • Layout drawing of machine for reference

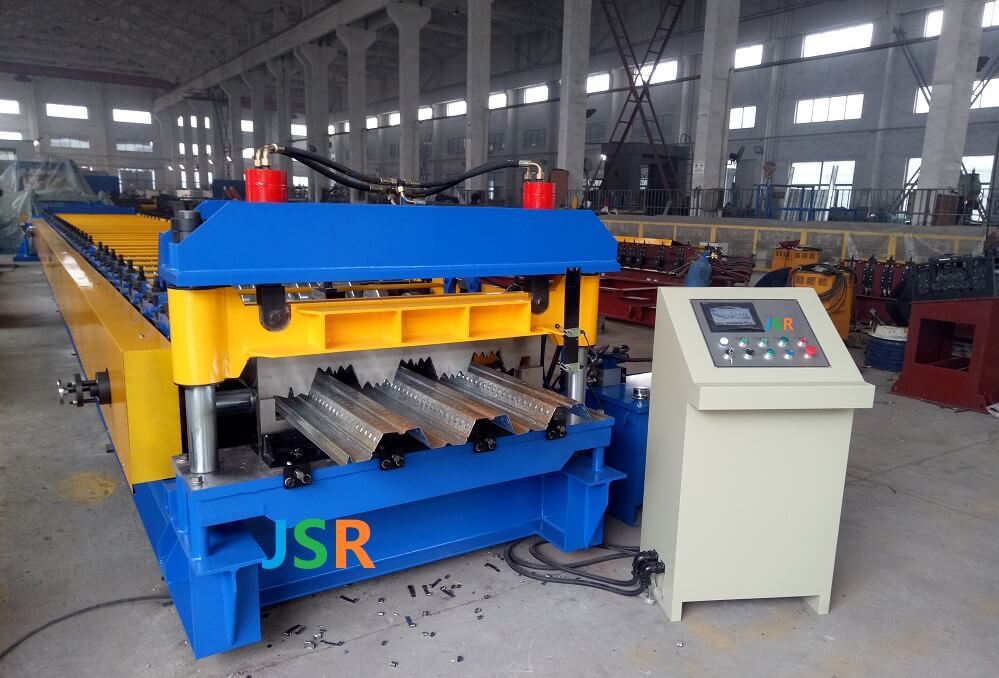

Metel deck  roll forming machine with about30 roller stations powered by two 11kw motor , weight about 15 ton, it is a resistance machine.
more roller station to garantee the final floor deck even and perfect in shape.

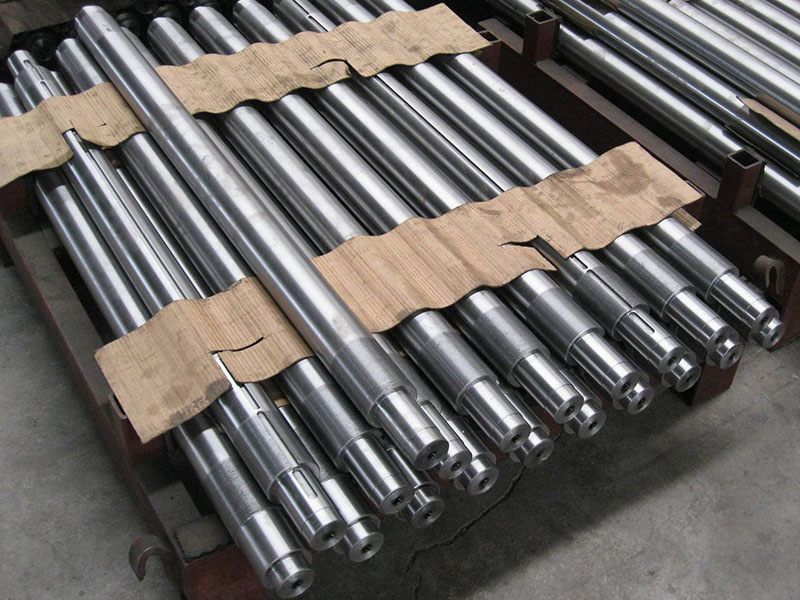

85 mm solid shaft,rollers chromed with hard chrome, cut frame and blade heat treatment to machine stable running for more than 10 years.
mitsubishi or siemens control
  • Solid shaft diameter 85 mm or more according to design

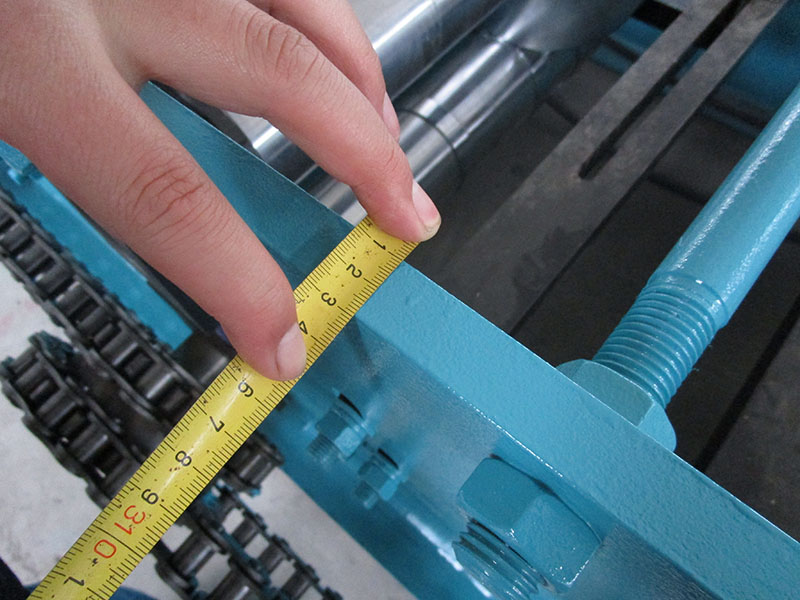

  • Wall thickness 20mm
  • Mitsubishi PLC and converter
  • Tool box and technical support



  JSR manufacture roll forming lines for construction,  such as for roofs profiles, facades, doors, and frames , as well as blinds and custom roll forming machines

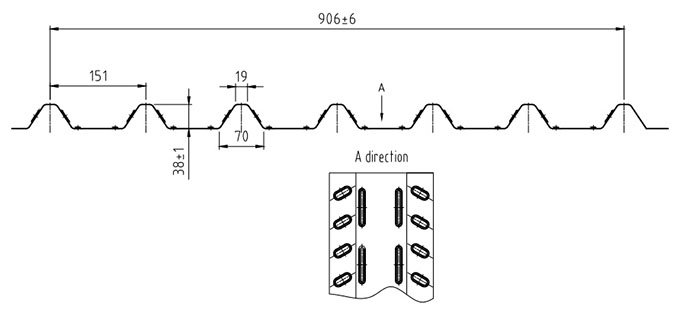

  • YX38-151-906

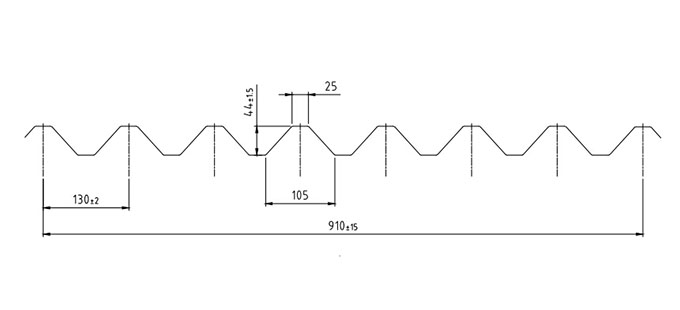

  • YX44-130-910

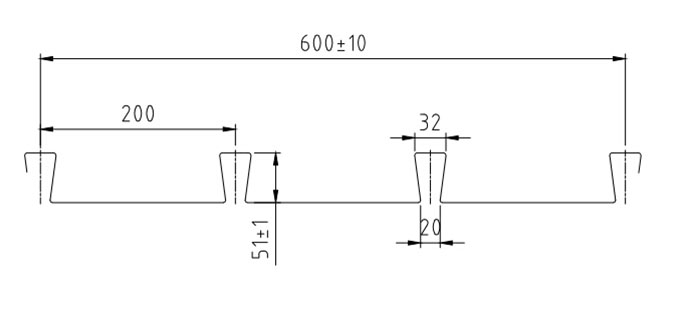

  • YX51-200-600

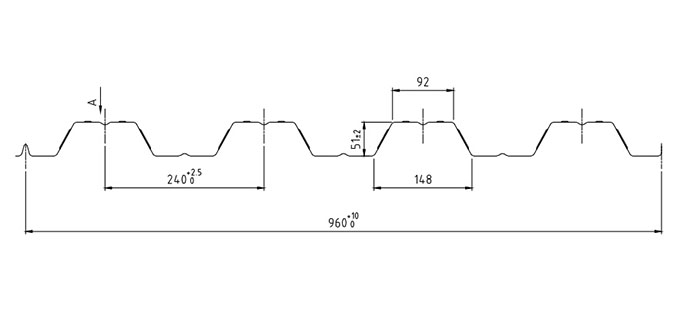

  • YX51-240-960

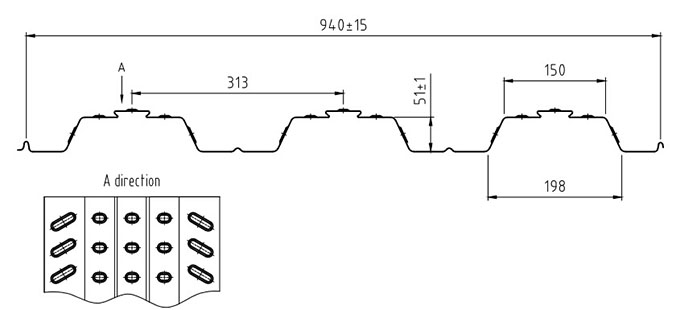

  • YX51-313-940

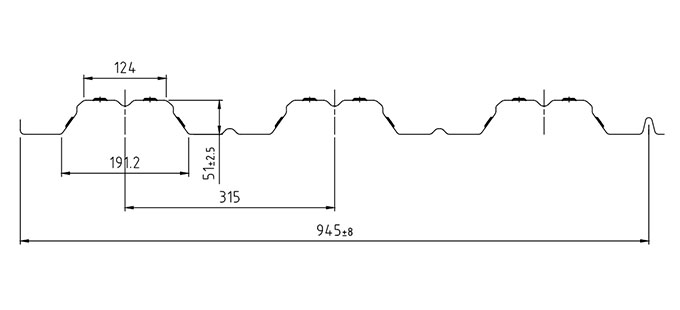

  • YX51-315-945

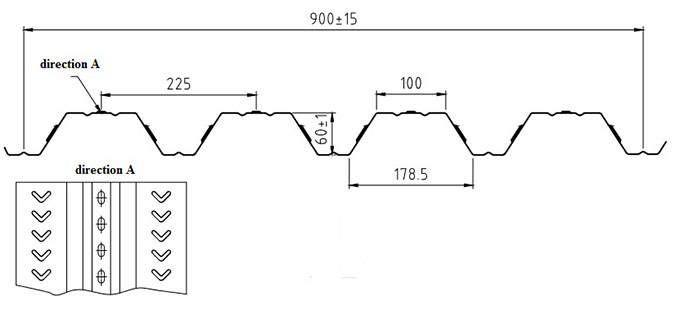

  • YX60-225-900

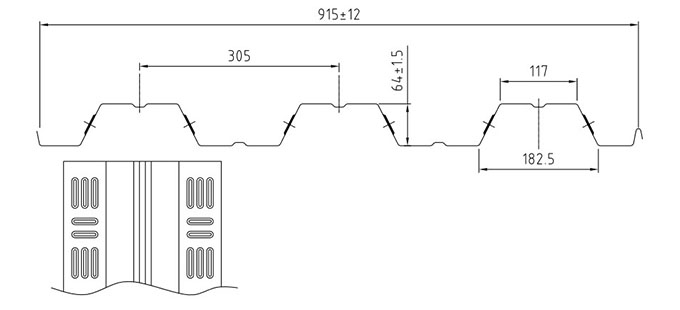

  • YX64-305-915
  • YX65-185-555

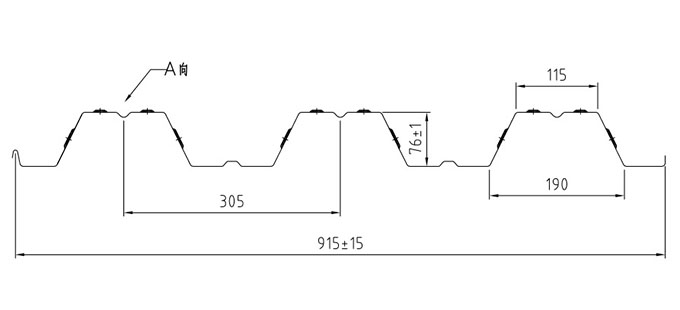

  • YX76-305-915

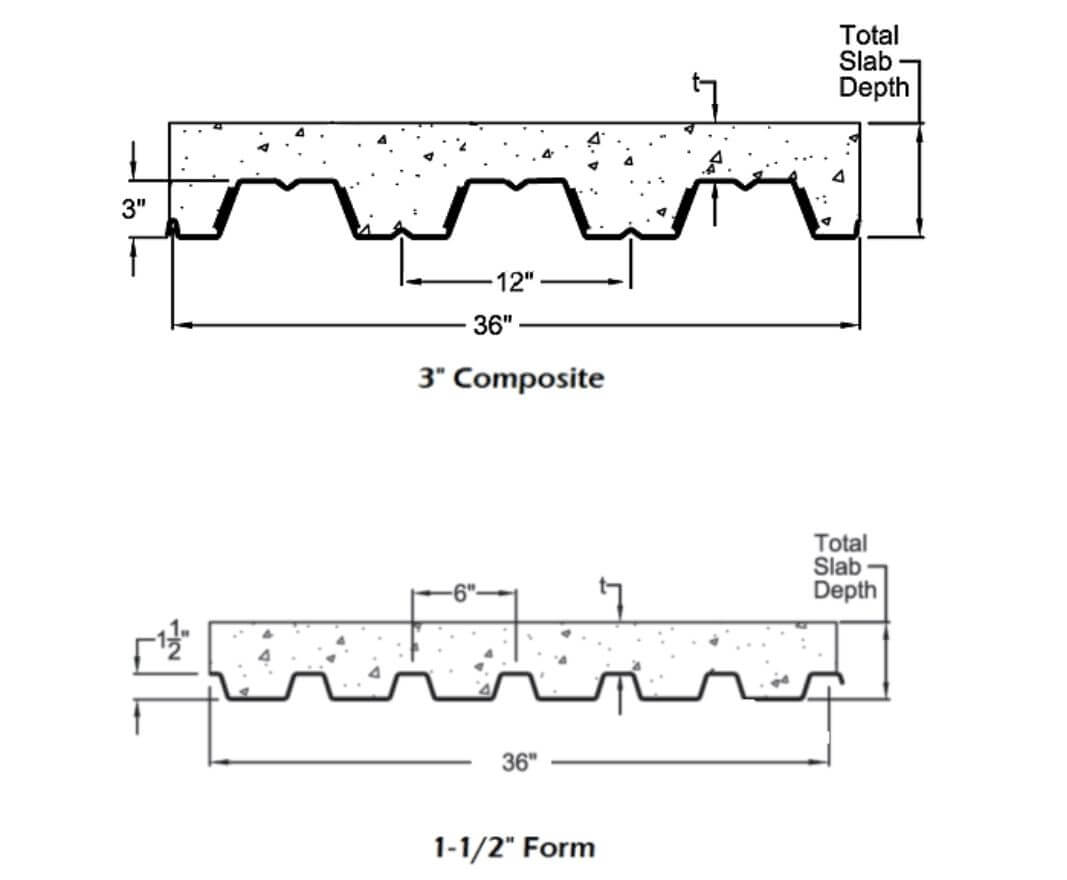

What is floor deck?

now it is popular and money save to make metal deck with concrete for floor deck.


How floor deck work?

metal deck is laid and fasted to a support structure,they can be done with composite or not.

concrete pour over the metal decking to became mezzanine floor.


why metal deck popular?

this floor deck use less concrete and time save


  • India Customer
  • Australia Customer
  • South America Customer
