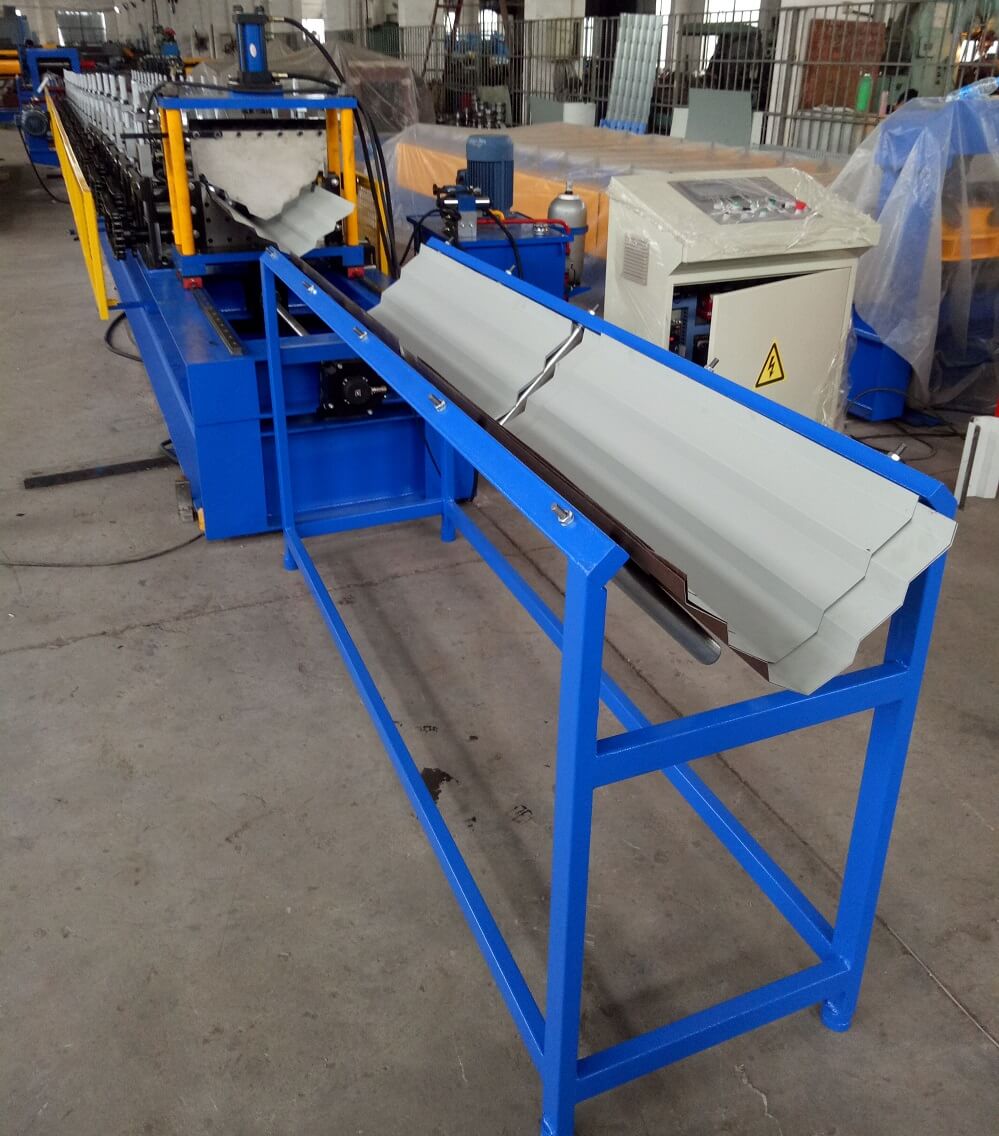

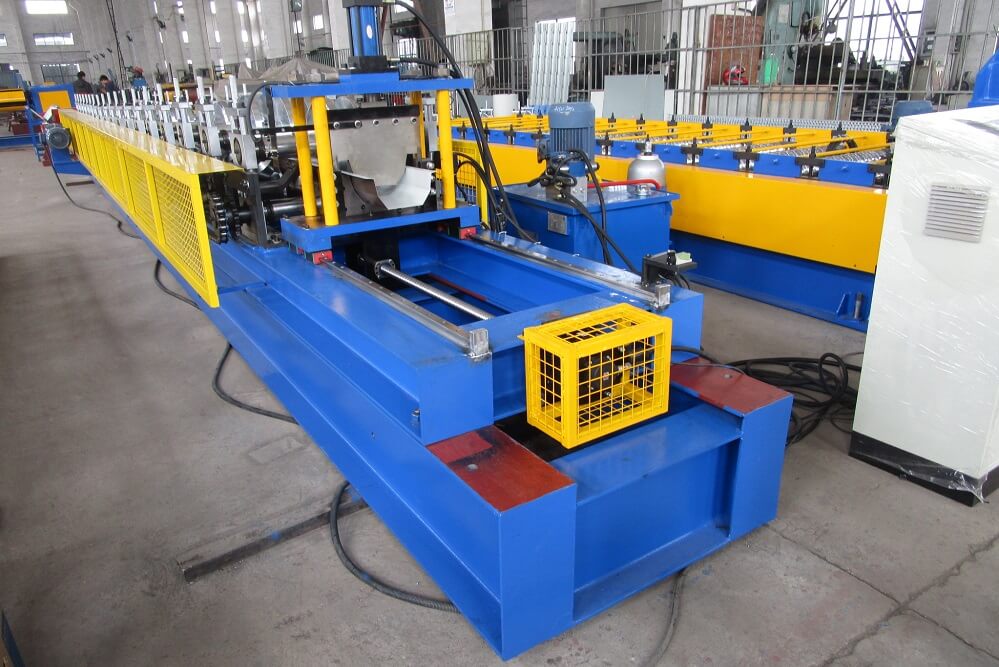

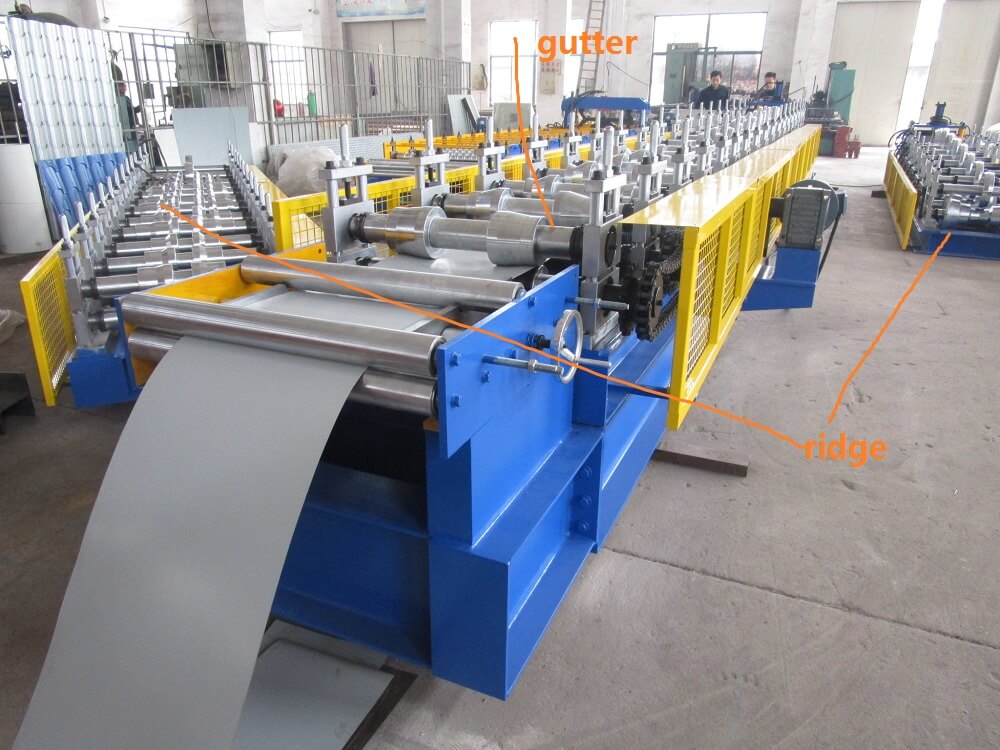

Fly Cut Gutter Forming Machine with Cassette structure
Jingshirui is one of the toppest gutter roll forming machines,gutter machine,Fly Cut Gutter Forming Machine with Cassette structure in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets
  • Advantage
  • Application
  • Customer Comment
Technical Details
Machine Specifications
Weight About 10000kgs
Size About 12m x 1.0m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.8mm
Yield Strength 235Mpa
Main Technical Parameters
Diameter of forming rollers shafts 55mm
Roll Forming Speed 25m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 7.5kw
Hydraulic unit motor power: 5.5kw
Electric voltage According to customer’s requirement

  • fly cut, speed about 25m/min
  • cassette structure

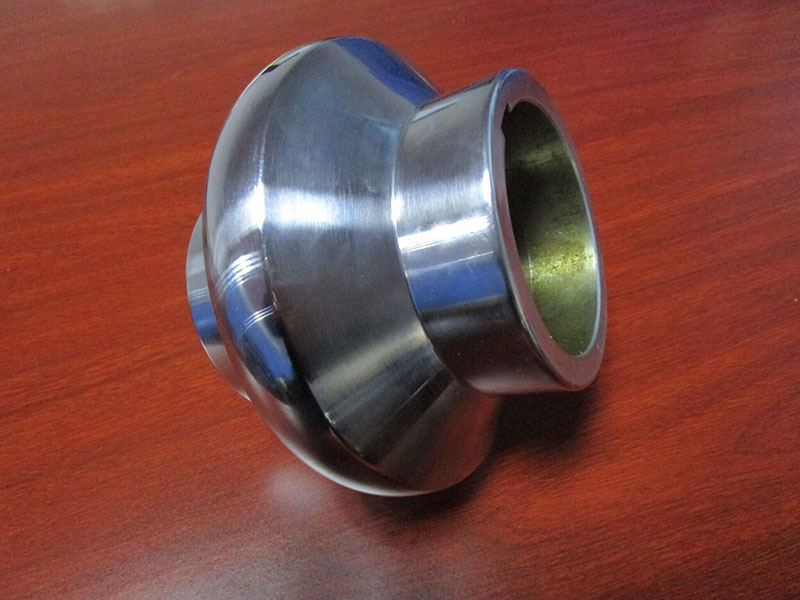

  • Special rollers design, more precise and solid

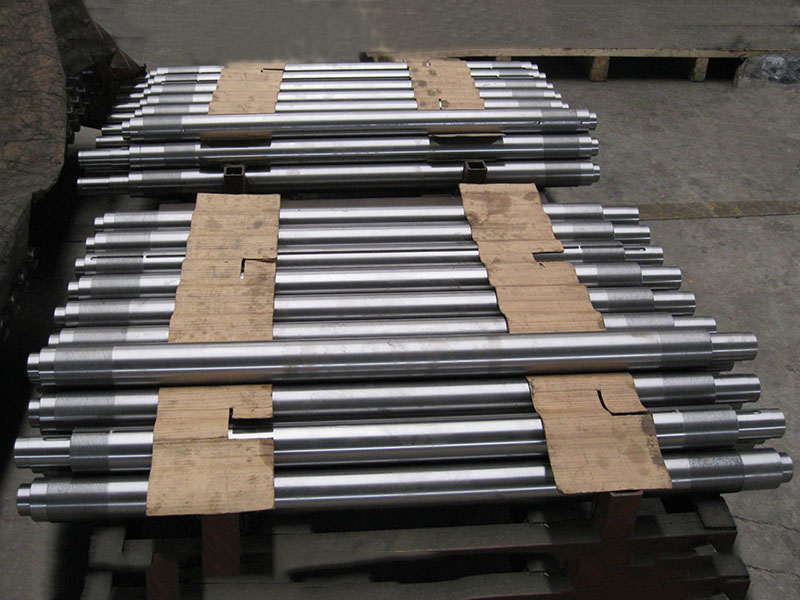

  • Shaft diameter: 55mm or more, according to profile

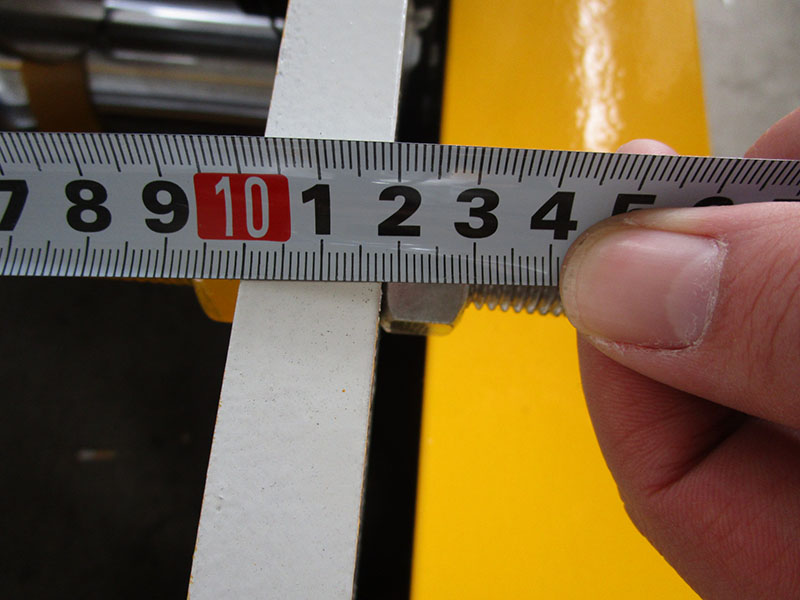

  • Wall plate 18mm thick

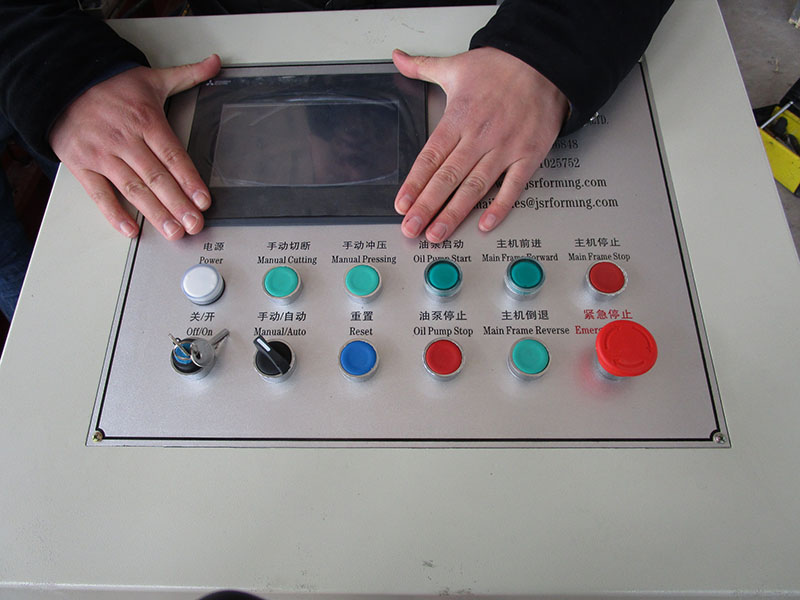

  • Mitsubishi PLC and converter

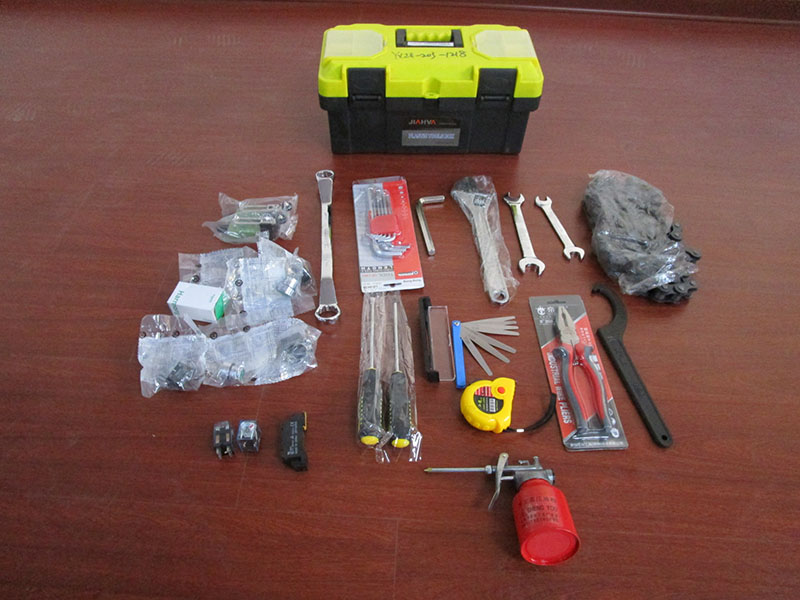

  • Tool box and technical support



Fascia covers to protect timber against splitting flaking and peeling.

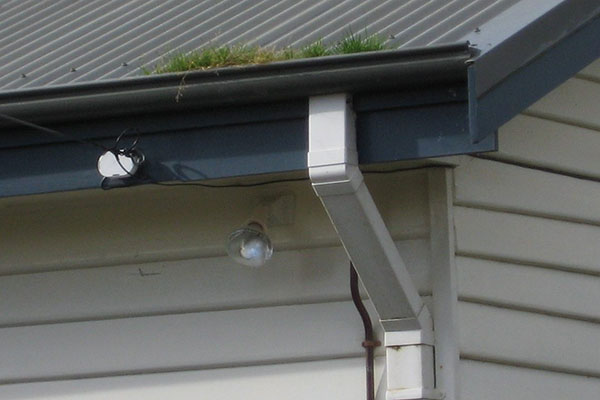

Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.
JSR machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.

We already sell half round gutter machine, square gutter machine, fascia cover machine to Australia.

Machine work automatically, operate easily.
Decoiler- forming-cut - run out
