Technical Details
| Machine Specifications | |
|---|---|
| Weight | About 6000kgs |
| Size | About 10m x 1.0m x 1.0m (length x width x height) |
| Color | Main color: blue |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Stainless steel |
| Thickness | 1.5mm |
| Yield Strength | 235Mpa |
| Main Technical Parameters | |
| Quantity of forming rollers stations | ABOUT 20 |
| Diameter of forming rollers shafts | 60mm |
| Working Speed | about 6-10m/min |
| Forming rollers material | GCR15 mould steel, with quenched treatment |

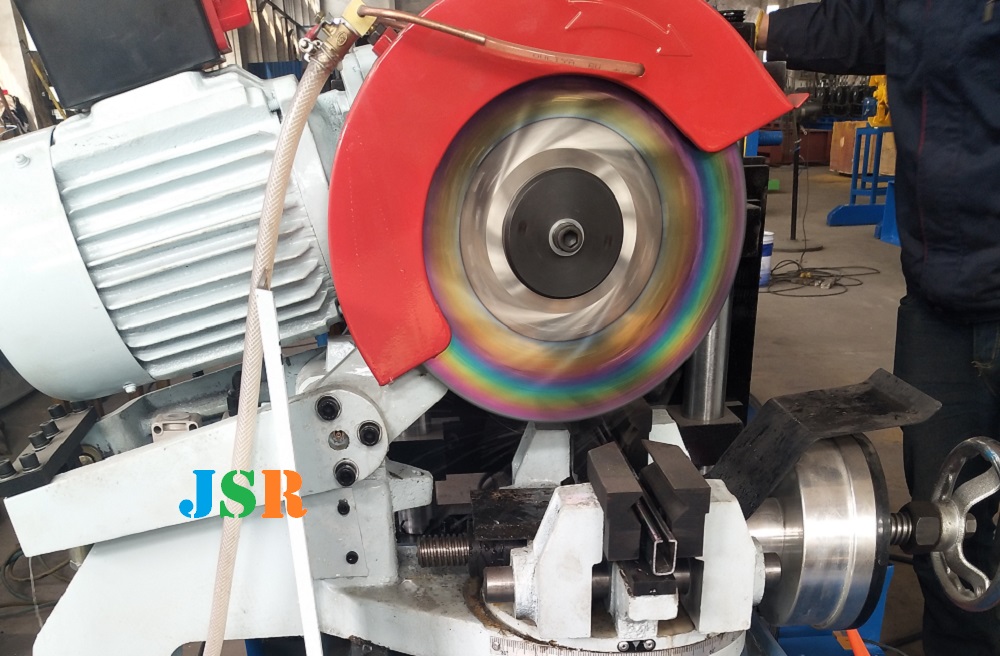

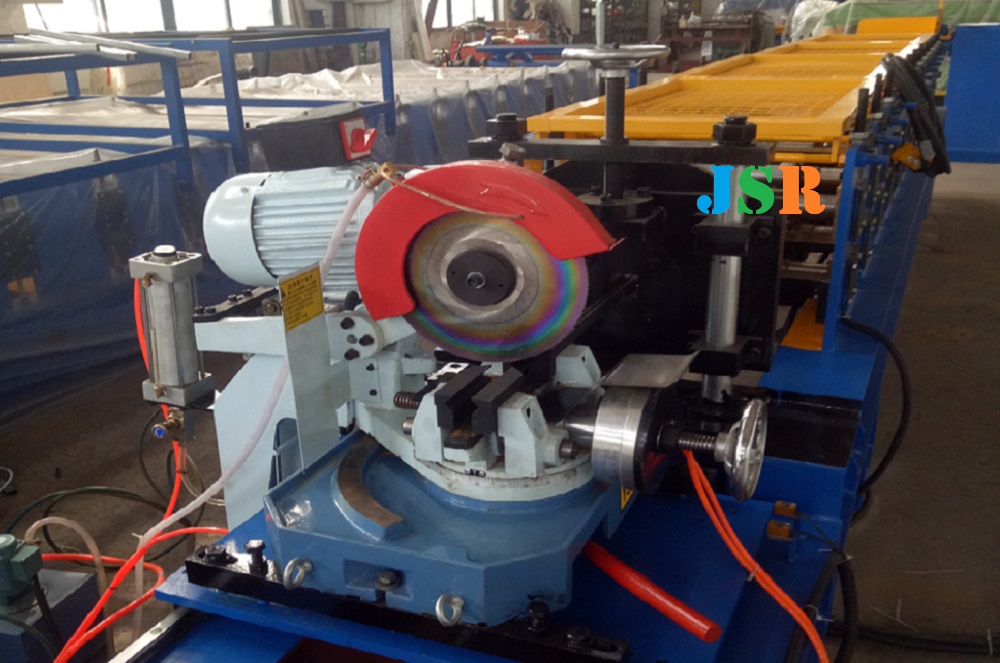

| Cutter material | CR12 mould steel, with quenched treatment |
| Controlling system | PLC and Converter |
| Electric Power requirement | Main motor power:11 kw |
| Hydraulic station | Motor 3kw |
-
Special rollers design, more precise and solid
-
Solid Shaft diameter: 60 mm according to profile
-
Mitsubishi PLC and converter
-
Tool box and technical support
-
