Guardrail Roll Forming Machine
Jingshirui is one of the toppest guardrail forming machine,highway rail forming machine,Guardrail Roll Forming Machine in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets
  • Advantage
  • Popular profile
  • Application
  • Customer Comment
Technical Details
Machine Specifications
Weight About 18000kgs
Whole line’s dimension About 25m x 6m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 2-4mm
Coil width 482mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 16-18
Diameter of forming rollers shafts 90mm
Roll Forming Speed 10-15/min
Forming rollers material CR12 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 55kw
Hydraulic unit motor power: 22kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Leveling system 1 set
Punching system n 1 set
Roll Forming system (with gearbox transmission) 1 set
Hydraulic Cutting system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Run outs tables 1 set

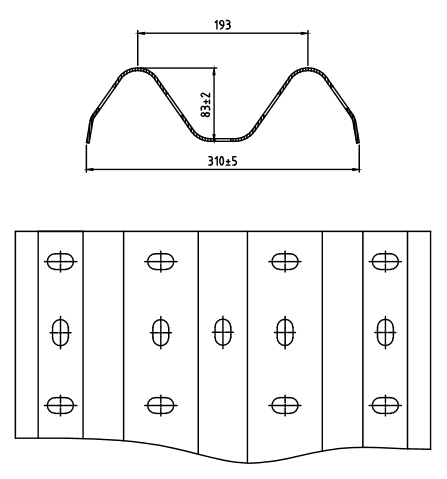

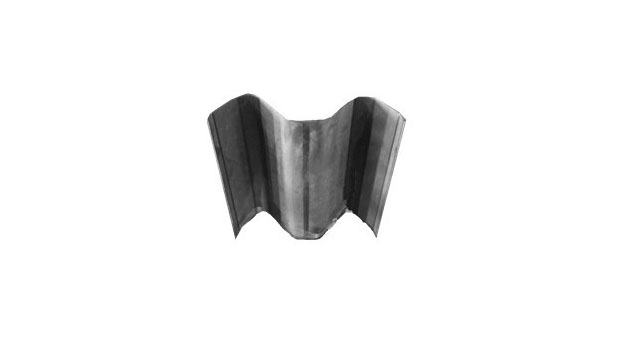

  • End product view
  • End product view

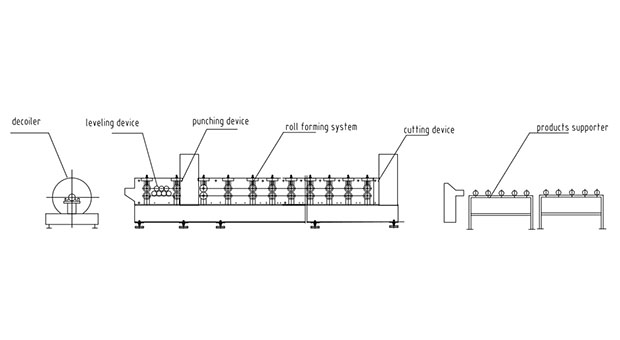

  • Layout drawing of machine for reference
  • Special rollers design, more precise and solid
  • Solid Shaft diameter: 75 mm, or more, according to profile
  • Mitsubishi PLC and converter
  • Tool box and technical support

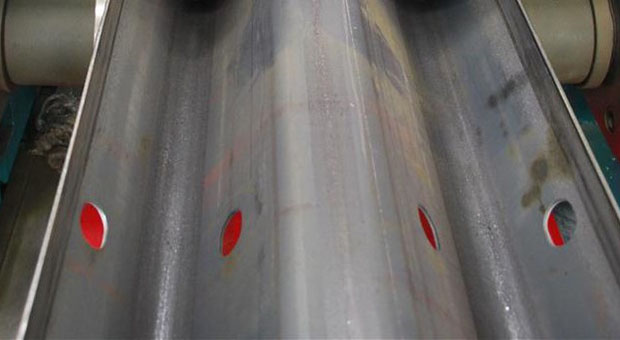

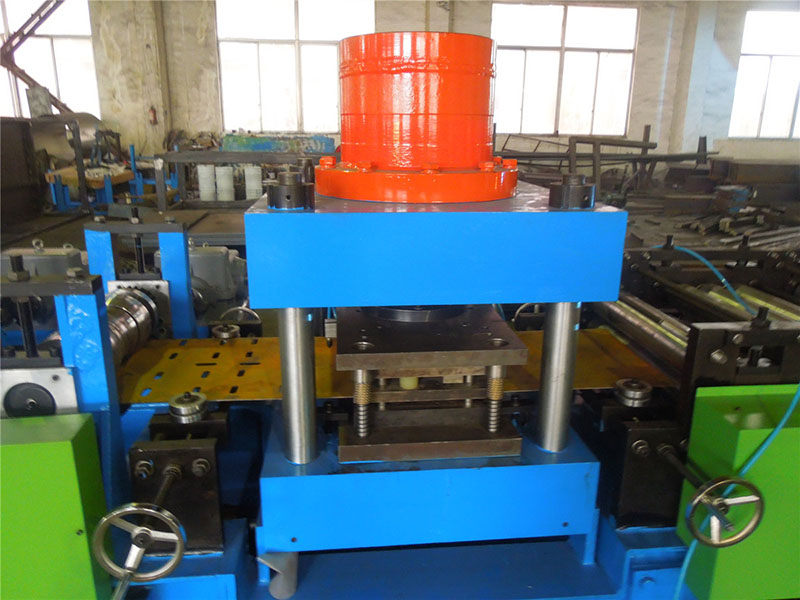

  • Hydraulic punch

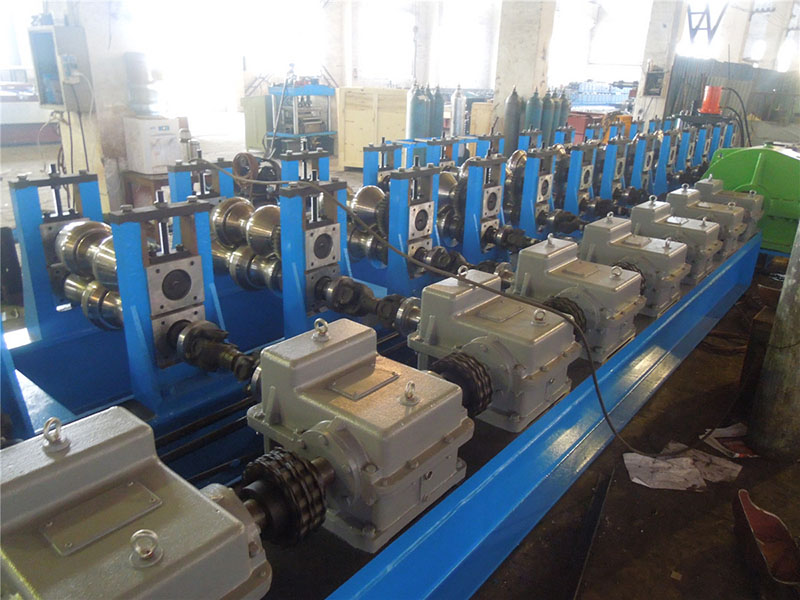

  • Gearbox transmision

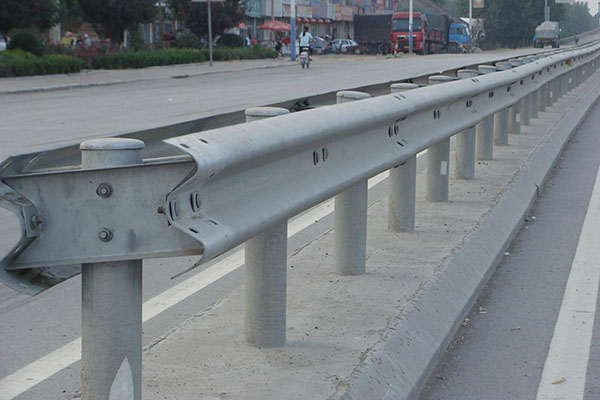

Guard rail or guardrail, sometimes referred to as guide rail or railing, is a system designed to keep people or vehicles from (in most cases unintentionally) straying into dangerous or off-limits areas. A handrail is less restrictive than a guard rail and provides both support and the protective limitation of a boundary.

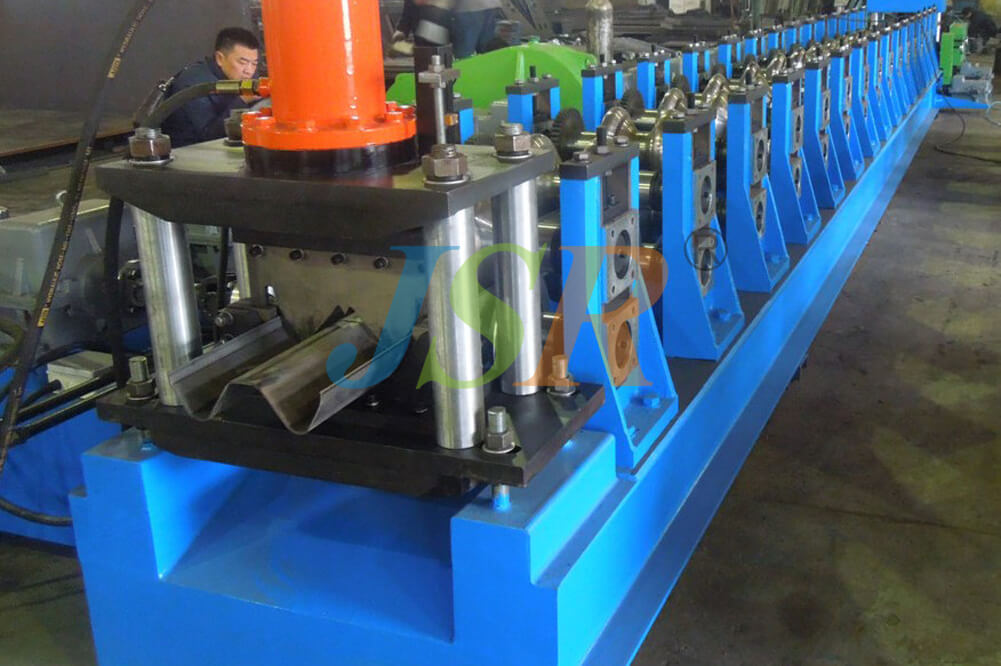

JSR machinery factory manufacture guardrail forming machine with gearbox transmission.
Operate easily , work automatically with PLC controller control.
Decoiler-Punch- forming--cut - run out
