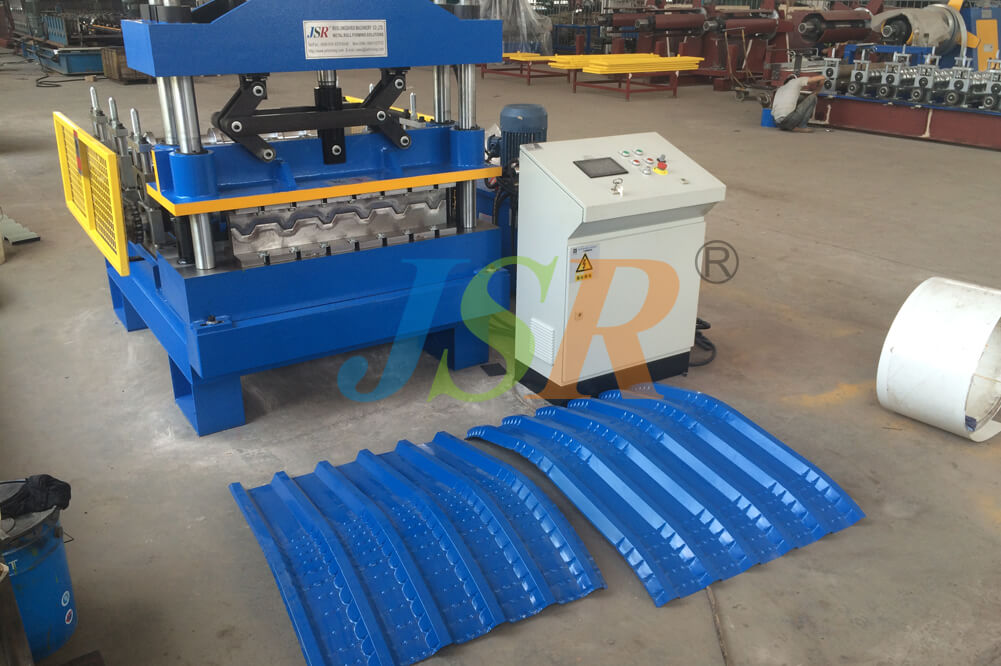

Hydraulic Crimping (Curving) Machine
Jingshiruitakes clients as the god trying best to satisfy all kinds of their requirements to manufacture theHydraulic Crimping Machine for Curving Roof Sheet
  • Advantage
  • Application
  • Customer Comment
Technical Details
Machine Specifications
Weight About 1500kgs
Size About 1.6m x 1.7m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Roofing Sheets
Thickness 0.3-0.7mm
Sheet width 1000mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of feeding rollers stations 3
Diameter of forming rollers shafts 75mm
Production Speed Pressing 12times/min
Rollers material No.45 steel, coated with chromed treatment
Pressing die material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 2.2kw
Hydraulic unit motor power: 5.5kw
Electric voltage According to customer’s requirement
Main Components

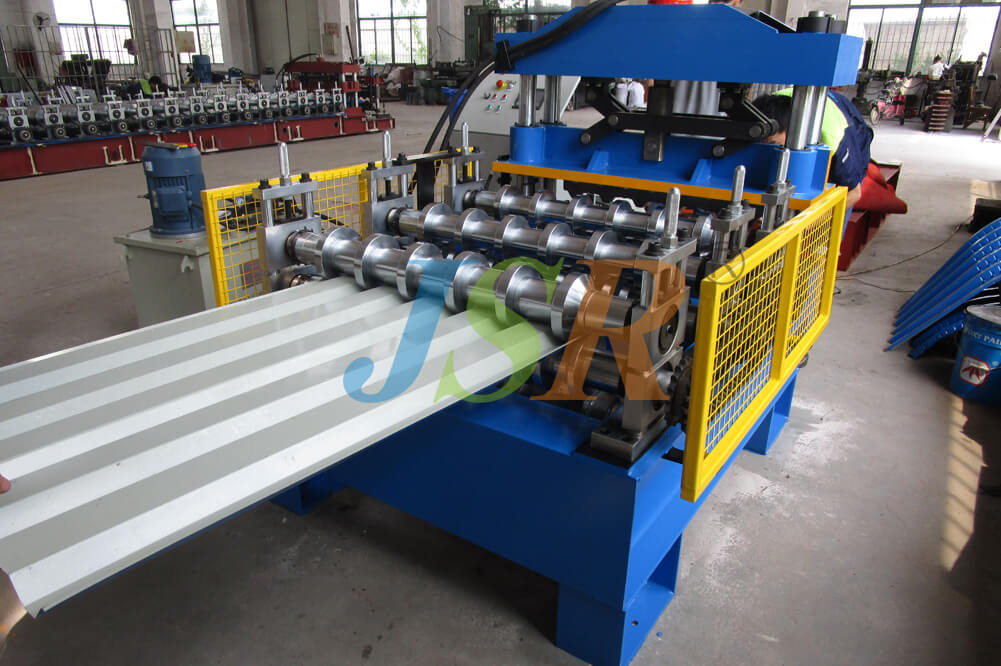

Feeding tables 1 set
Hydraulic Pressing system 1 set
PLC control box 1 set
Hydraulic unit 1 set

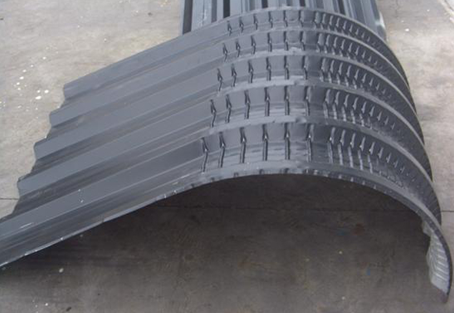

End product view

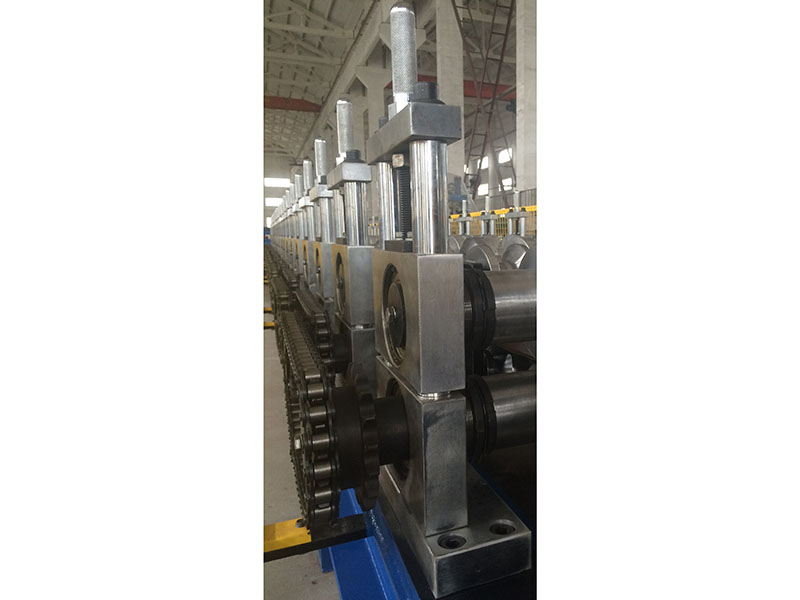

  • Special rollers design, more precise and solid
  • Shaft diameter: 75mm, according to profile
  • Mitsubishi PLC and converter
  • Tool box and technical support
  • Guide pillar design



JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced

Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut - run out
