K-Span Roll Forming Machine
K-Span Roll Forming Machine
K-Span Roll Forming Machine
Hot K-Span Roll Forming Machine - Jingshirui is the best K-Span Roll Forming Machine supplier in China.
  • Advantage

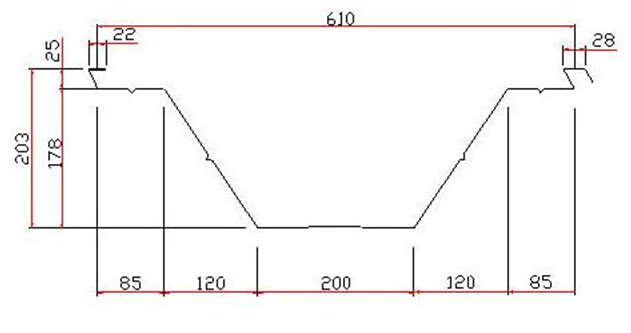

  • Popular profile
  • Customer Comment
Technical Details
Machine Specifications
Weight About 13000kgs
Size About 9.5m x 2.3m x2.5m (length x width x height)
Color Main color: white
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.6-1.6mm
Coil width 914mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 12-14
Diameter of forming rollers shafts 75mm
Working Speed Straight sheet: 15m/min
Arch sheet: 13m/min
Sewing: 10m/min
Max span 38-42m
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 15kw
Hydraulic unit motor power: 4kw
Bending power: 4kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Roll Forming system 1 set
Curving/Bending system 1 set
Hydraulic Cutting system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Products table 1 set
Sewing equipment 1 set

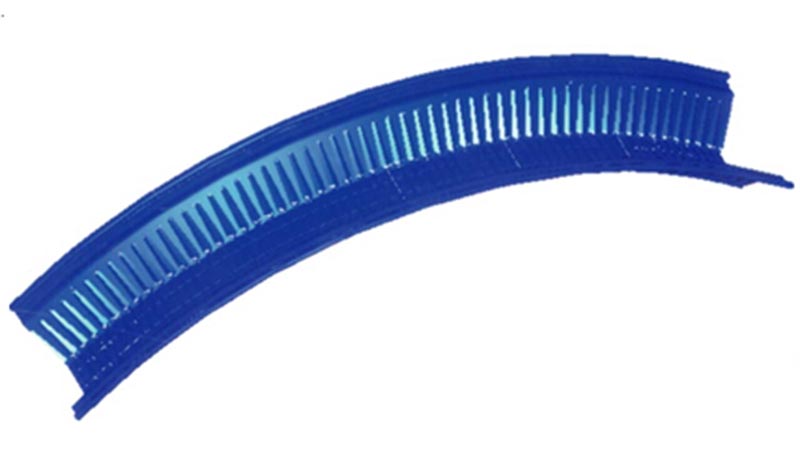

  • End product view

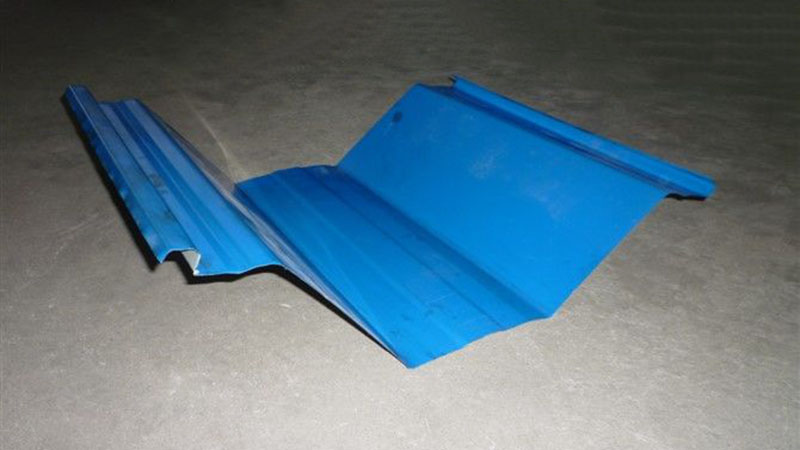

  • End product view

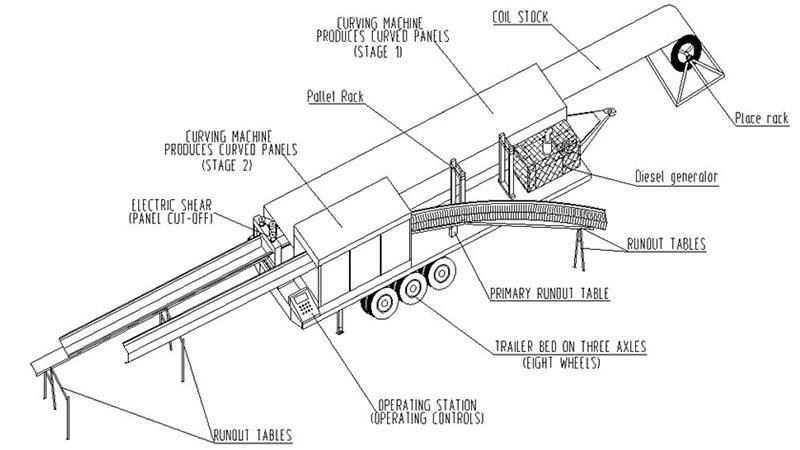

  • Layout drawing of machine for reference
  • Special rollers design, more precise and solid
  • Shaft diameter: 75 mm according to profile
  • Mitsubishi PLC and converter
  • Tool box and technical support



  • India Customer
  • Australia Customer
  • South America Customer
