Technical Details

Machine Specifications
Weight	About 9000kgs
Size	About 10m x 1.8m x 1.5m (length x width x height)
Color	Main color: blue
	Warning color: yellow
Suitable Raw Material
Material	Pre-painted Galvanized Steel Coils
Thickness	0.4-0.6mm
Coil width	1250mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	About 16
Diameter of forming rollers shafts	75mm
Roll Forming Speed	10-15m/min
Production Speed	4-6m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 5.5kw
	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customer’s requirement

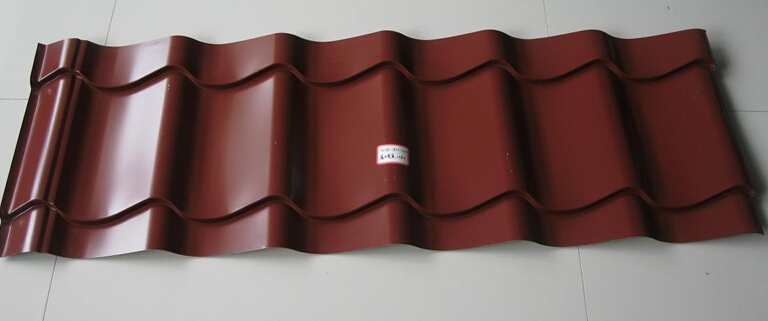

• End product view
• Profile drawing

• Sold shaft diameter 75mm
• Mitsubishi PLC and converter
• Tool box and technical support

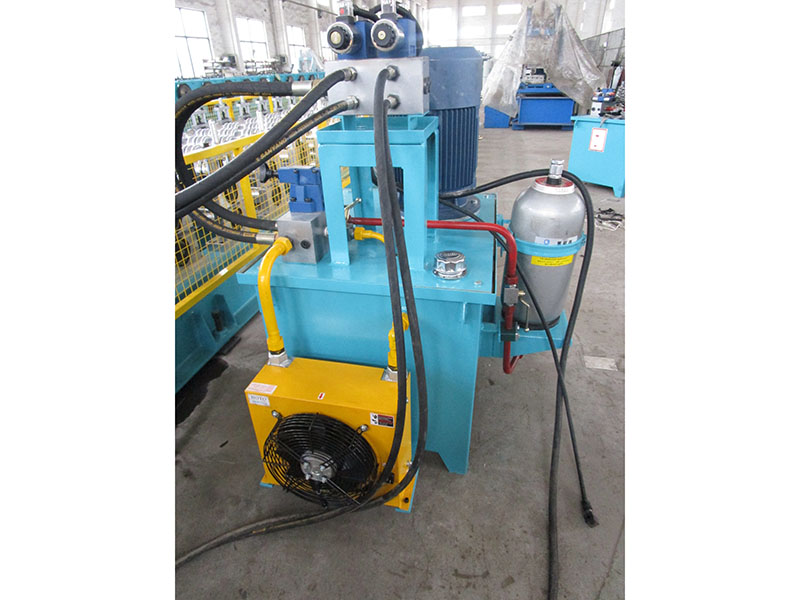

• 11kw hydraulic station to improve press speed
•

•

•

•

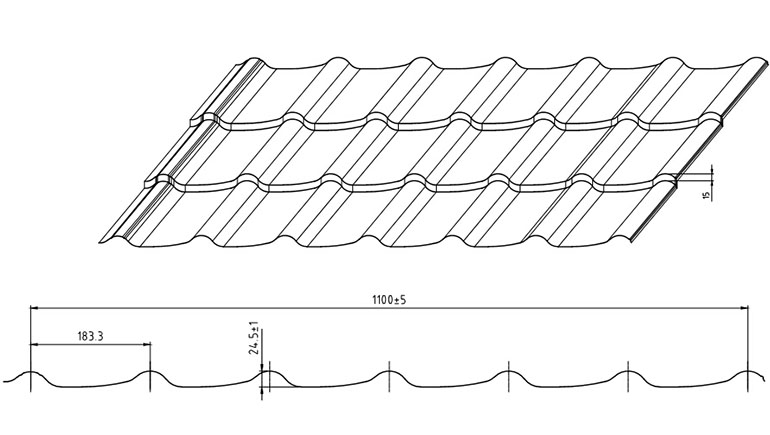

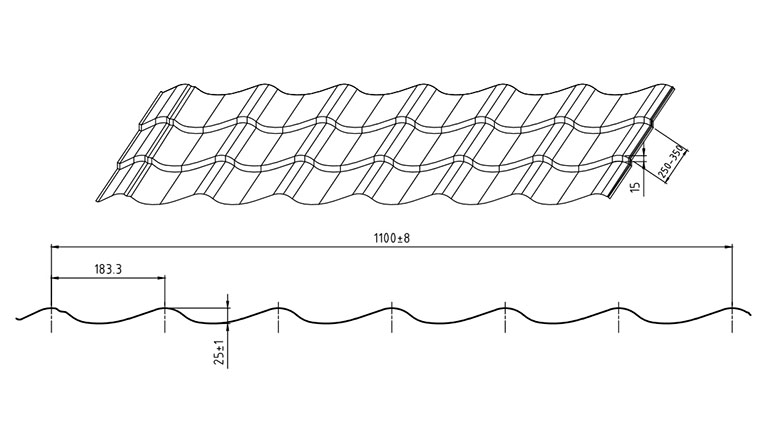

• 25-183.3-1100

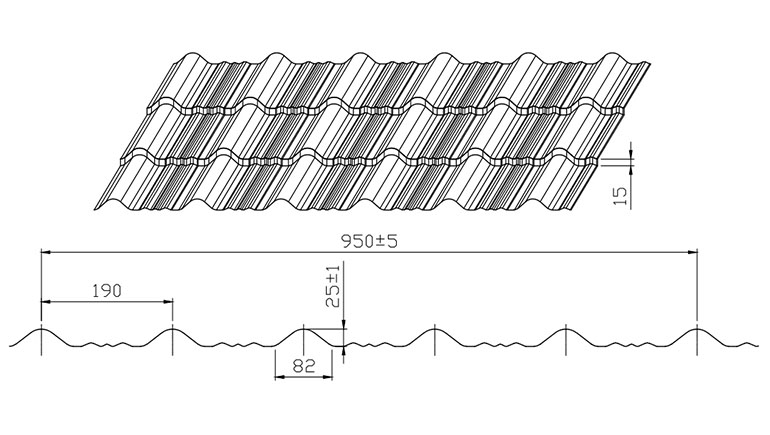

• 950 tile profile

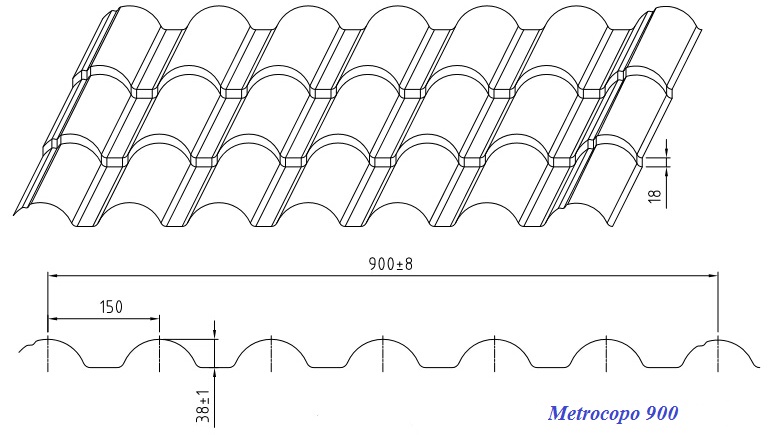

• Metrocopo 900

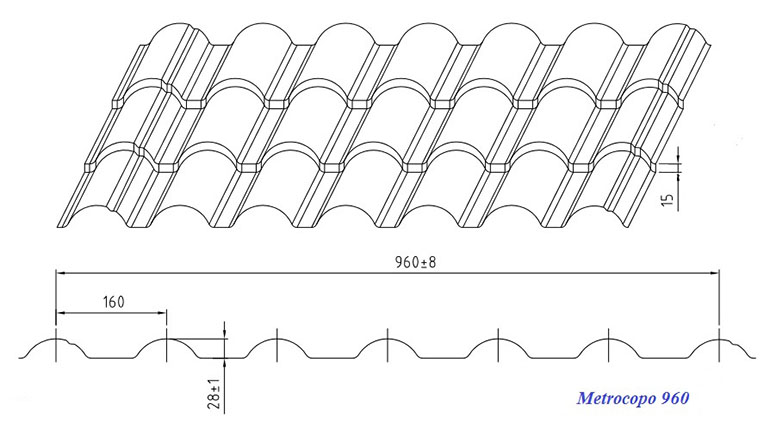

• Metrocopo 960
• metrocopo sheet

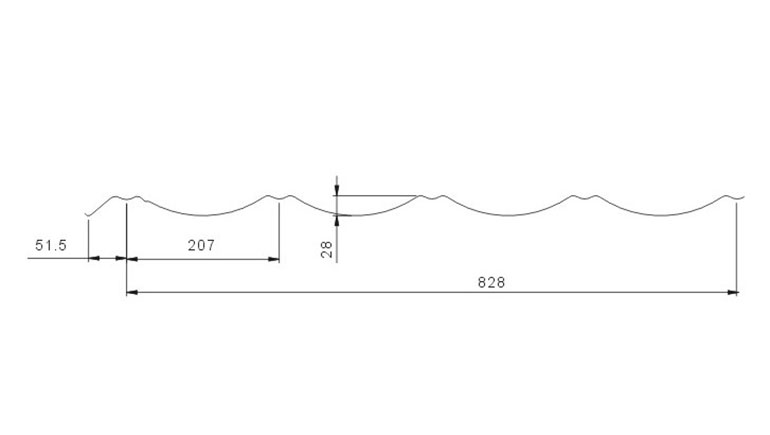

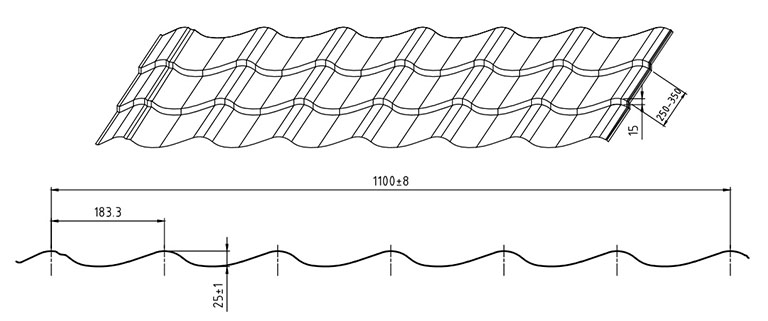

• profile drawing
• Tile & Roof Profile

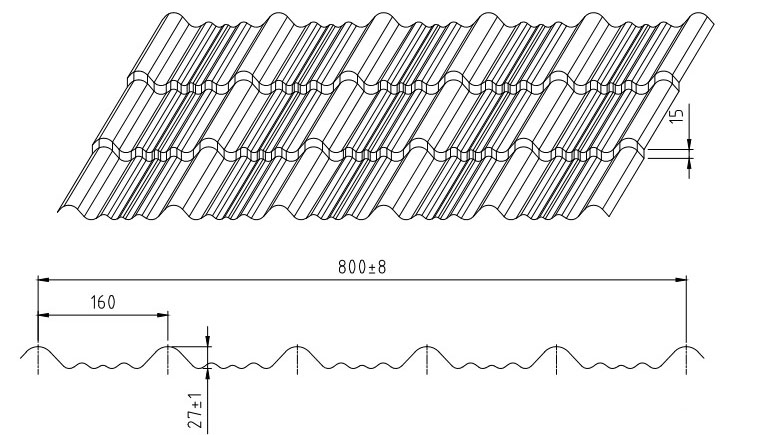

• Tile 800

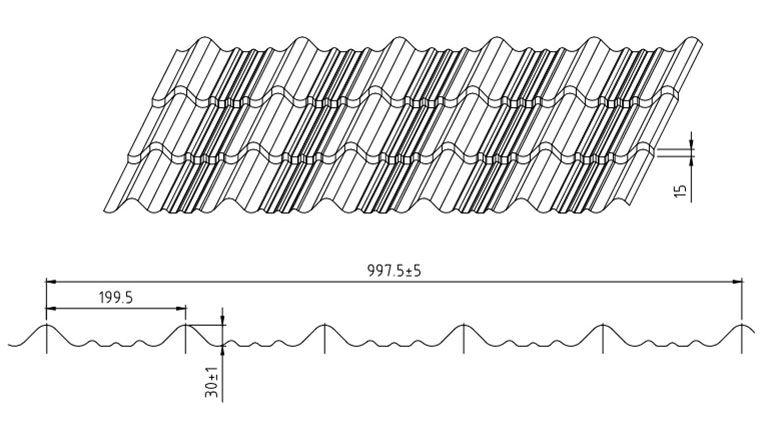

• Tile 997.5
• Tile 1100

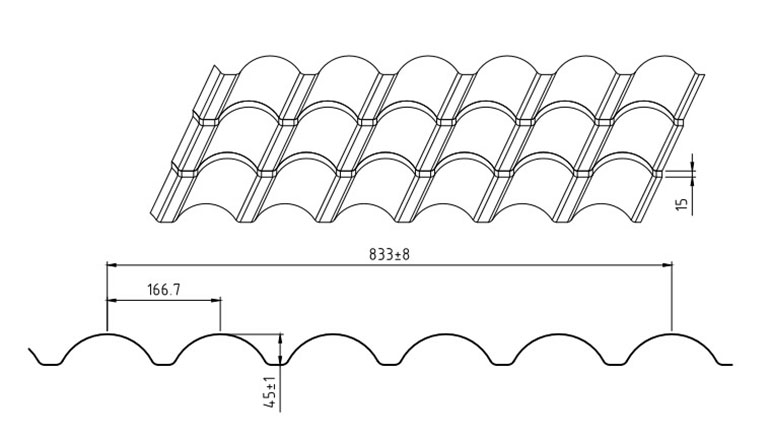

• Tile Profile 833

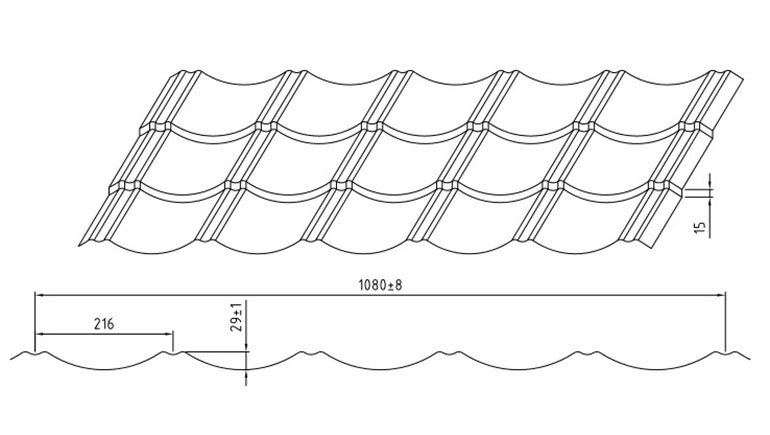

• YX29-216-1080

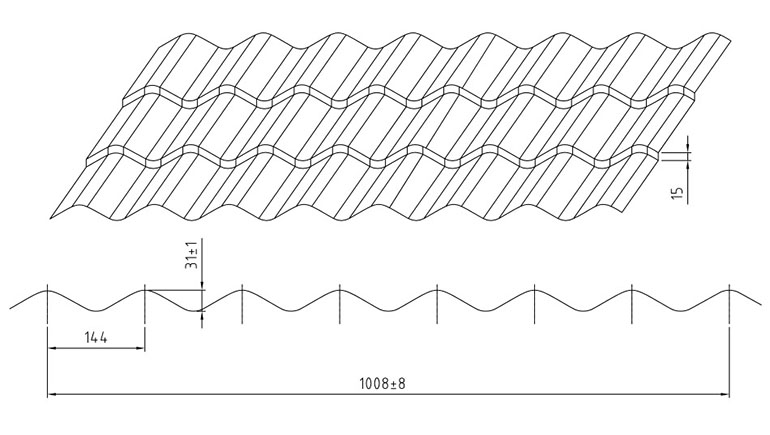

• YX31-144-1008 Tile

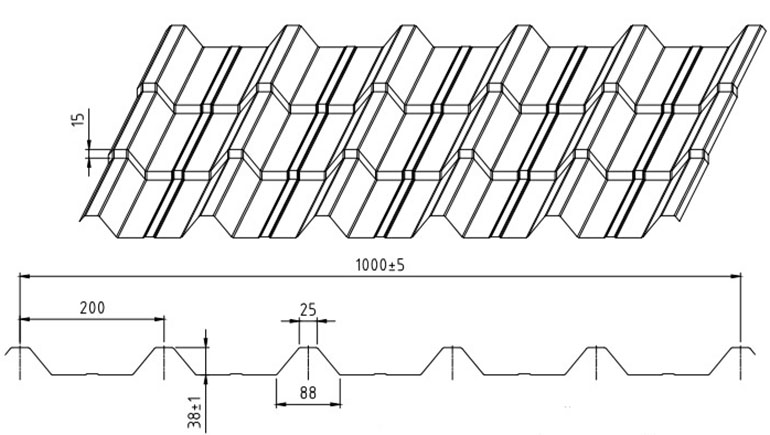

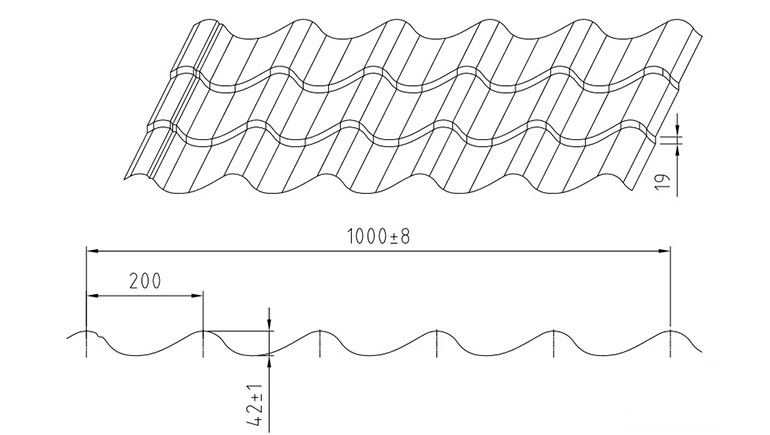

• YX42-200-1000 tile
•

•

•

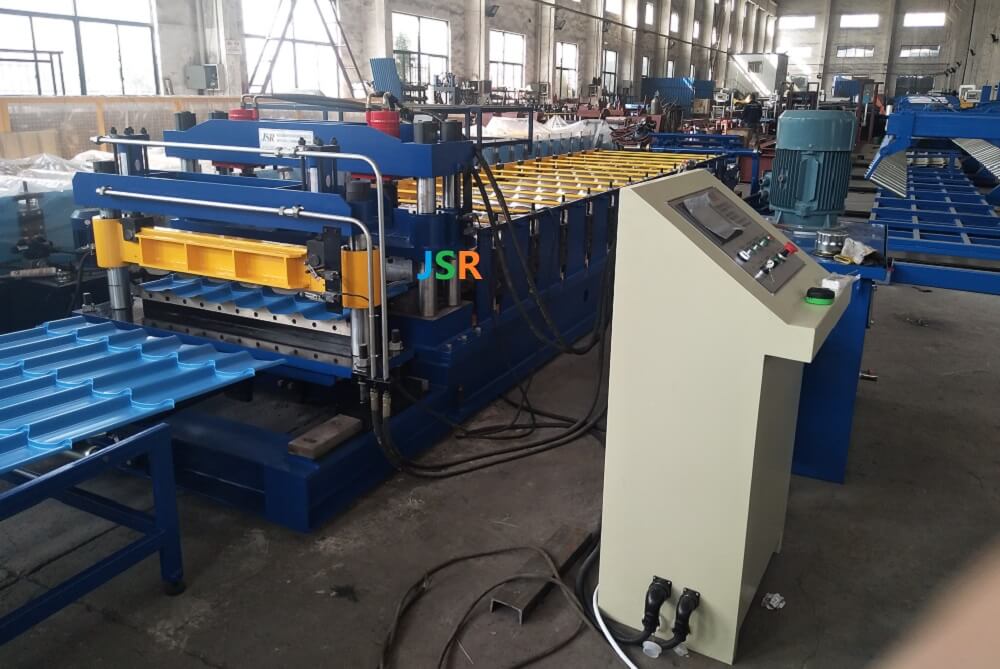

JSR tile forming machine can produce steel sheet tile, which is light weight, durable and beautiful.
Now, we improve machine working speed to 4m/min (include press and cut).

Operate easily , work automatically with PLC controller control.
Decoiler- forming- press -cut - run out
