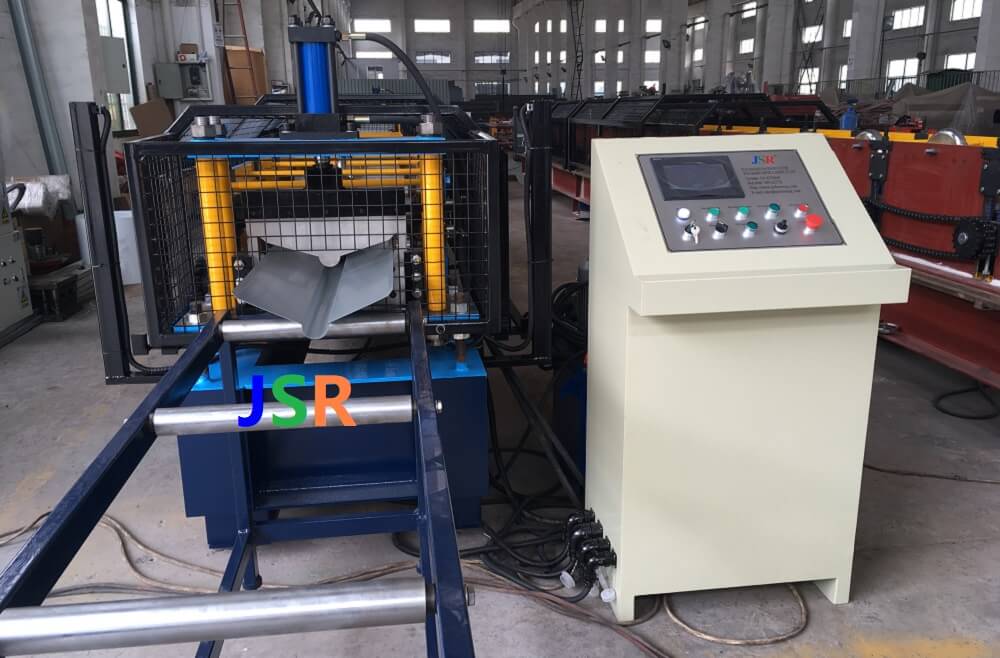

Ridge Cap Roll Forming Machine
Jingshirui is one of the toppest ridge making machine,roofing ridge forming machine,Ridge Cap Roll Forming Machine in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets
  • Advantage

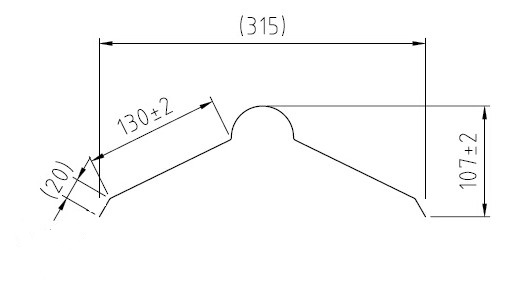

  • Popular profile
  • Application
  • Customer Comment
Technical Details
Machine Specifications
Weight About 4000kgs
Size About 6m x 1.0m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.8mm
Coil width 610mm
Yield Strength 235Mpa
Main Technical Parameters
Diameter of forming rollers shafts 55mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 4kw
Hydraulic unit motor power: 2.2kw
Electric voltage According to customer’s requirement

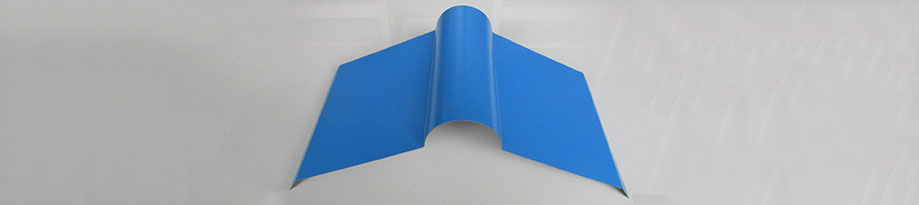

  • Product Sample

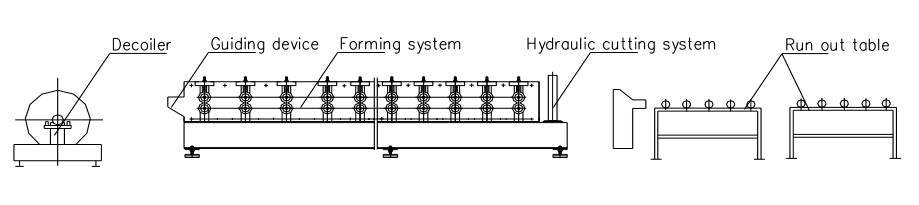

  • Layout drawing of machine (reference only)
  • Special rollers design, more precise and solid
  • Shaft diameter: 55mm or more, according to profile
  • Wall plate 18mm thick
  • Mitsubishi PLC and converter
  • Tool box and technical support



Ridge

JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced

Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut - run out
