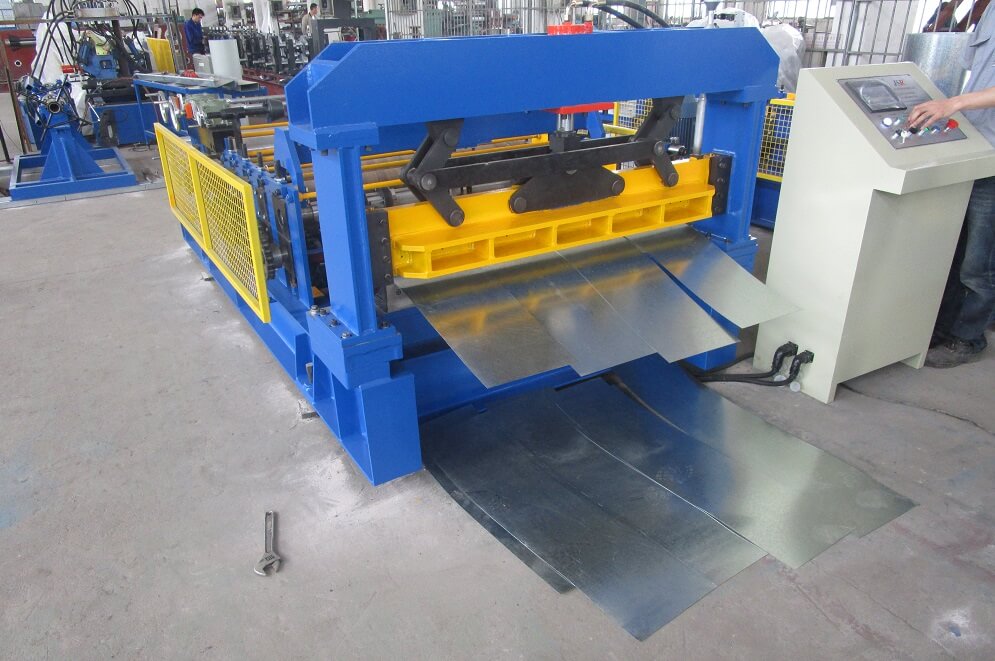

Simple Slit and Cut Machine
Simple Slit and Cut Machine
Jingshirui is one of the toppest simple slit and cut machine in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets
  • Advantage
  • Customer Comment
Technical Details
Machine Specifications
Weight About 3000kgs
Size About 3m x 1.5m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.7mm
Coil width MAX.1250mm
Yield Strength 235Mpa
Main Technical Parameters
Diameter of forming rollers shafts 75mm
Running Speed 15-20m/min
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 3kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement


This slit and cut machine ,can only cut to any length, or only slit,  or both slit and cut.

Cut length controlled by PLC controller, slit width adjust manually.

  • Shaft diameter: 75 mm, according to profile
  • Wall plate 18mm thick
  • Mitsubishi PLC and converter
  • Tool box and technical support
