Square Pipe Roll Former
Jingshirui is one of the toppest rectangle pipe making machine,downpipe former,square down pipe forming line in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets
  • Advantage
  • Popular profile
  • Application
  • Customer Comment
Technical Details
Machine Specifications
Weight About 5000kgs
Size About 11m x 1.2m x 1m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.5-0.8mm
Coil width 325mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 20-22
Diameter of forming rollers shafts 60mm
Roll Forming Speed 8-12m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Motor of roll forming machine: 5.5kw
Motor of sawing cutter: 3kw
Motor of elbow machine: 1.5kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Roll Forming system 1 set
Sawing Cutting system 1 set
PLC control box 1 set
Elbow machine 1 set
Run outs tables 1 set

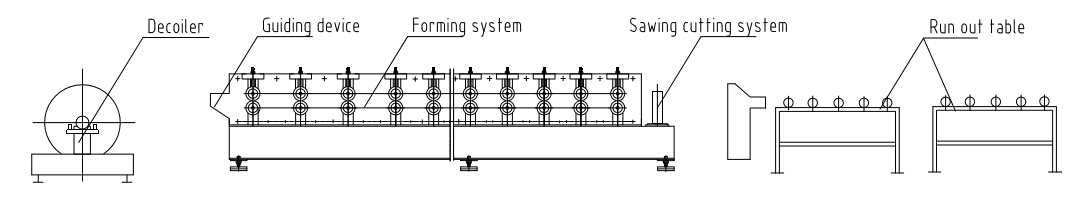

Layout of downpipe machine

  • Special rollers design, more precise and solid
  • Shaft diameter: 55 or more mm, according to profile

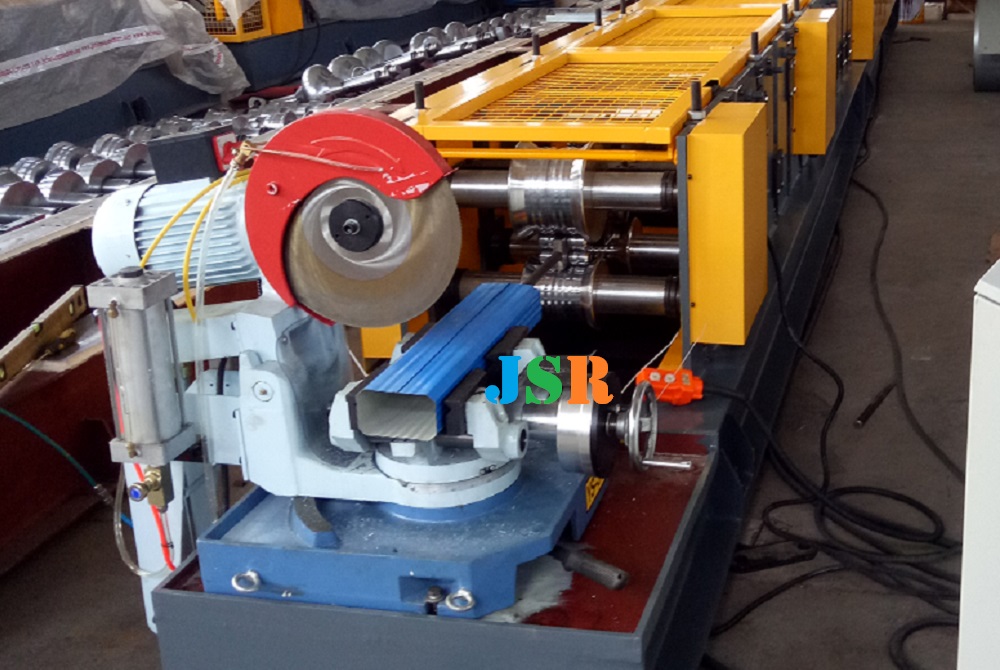

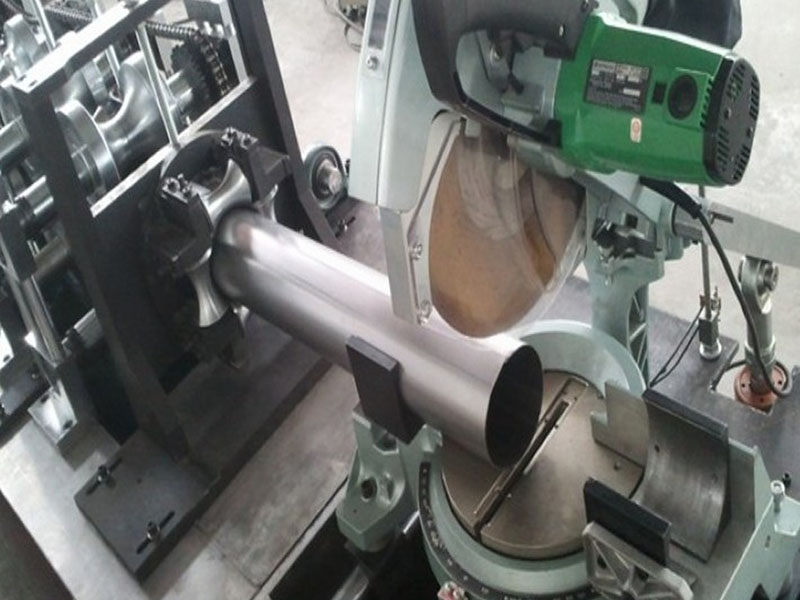

  • Final product will not deform during saw cut
  • Mitsubishi PLC and converter
  • Tool box and technical support

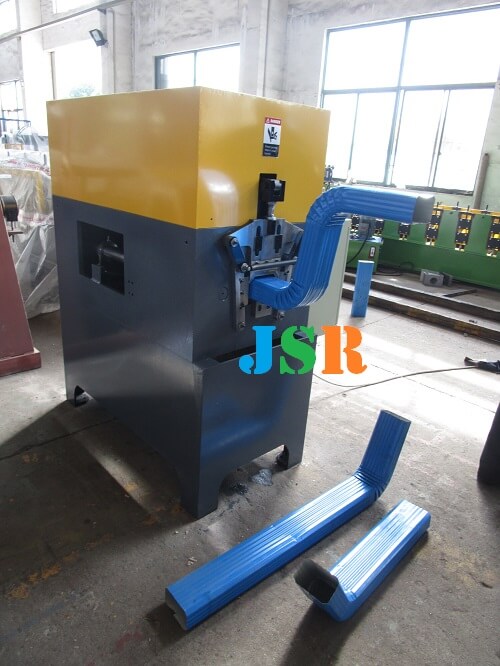

  • Pipe elbow machine

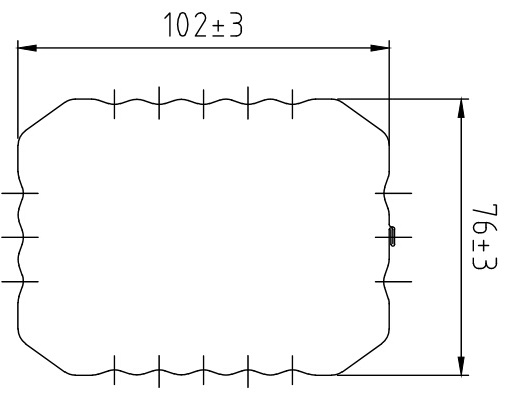

  • Down-pipe profile

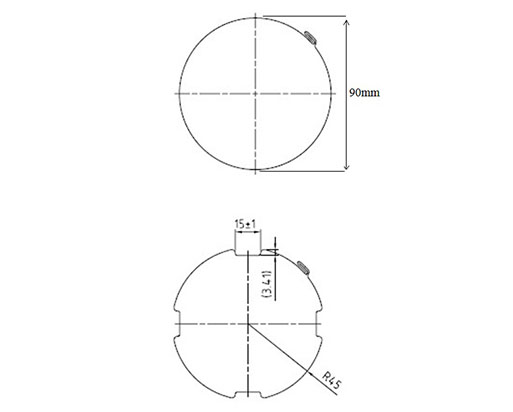

  • YX90 Round downpipe profile
Fascia covers to protect timber against splitting flaking and peeling.
Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.
JSR machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.

We already sell half round gutter machine, square gutter machine, fascia cover machine to Australia.

Machine work automatically, operate easily.
Decoiler- forming-cut - run out
