Technical Details

Machine Specifications
Weight	About 15000kgs
Size	About 16m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
Material	Galvanized or Galvalume Coils
Thickness	0.8-1.2mm
Yield Strength	235Mpa
Main Technical Parameters
Diameter of forming rollers shafts	95mm
Roll Forming Speed	10-15/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 3x11kw
	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customer’s requirement

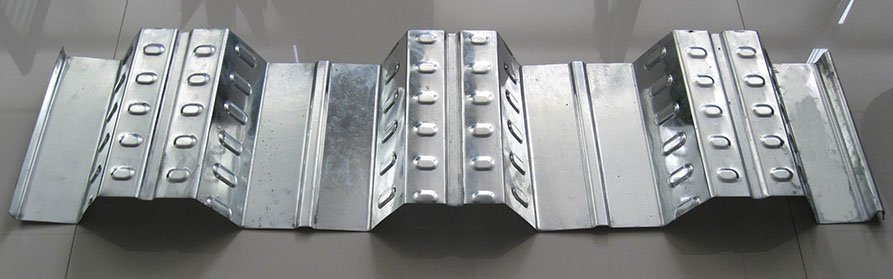

• Product sample

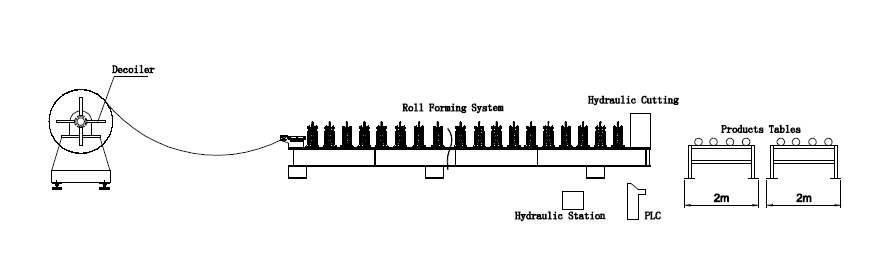

• Layout drawing of machine for reference
• 76-305-915

• Solid shaft diameter 85 mm or more according to design

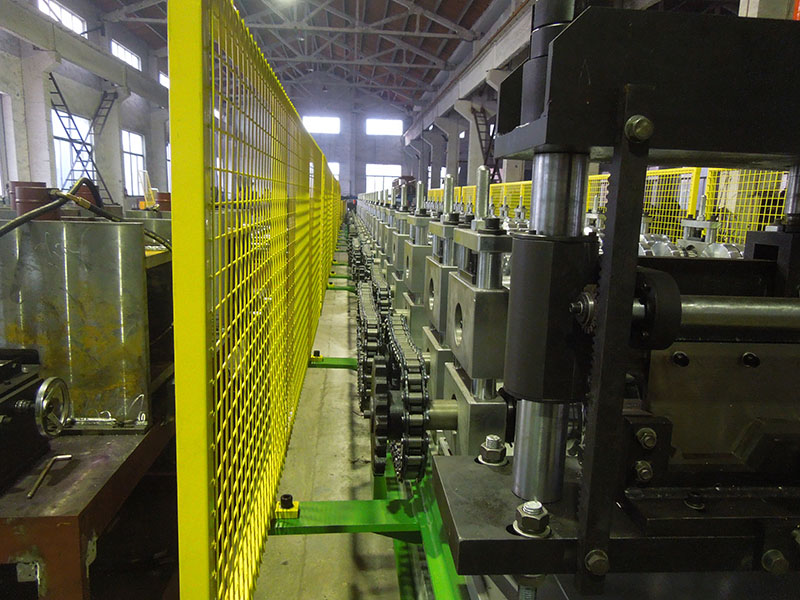

• Guide pillar, looks beautiful and easy to mantain
• Mitsubishi PLC and converter
• Tool box and technical support
•

•

•


• YX38-151-906
• YX44-130-910
• YX51-200-600
• YX51-240-960
• YX51-313-940
• YX51-315-945
• YX60-225-900
• YX64-305-915
• YX65-185-555
• YX76-305-915
•

•

•

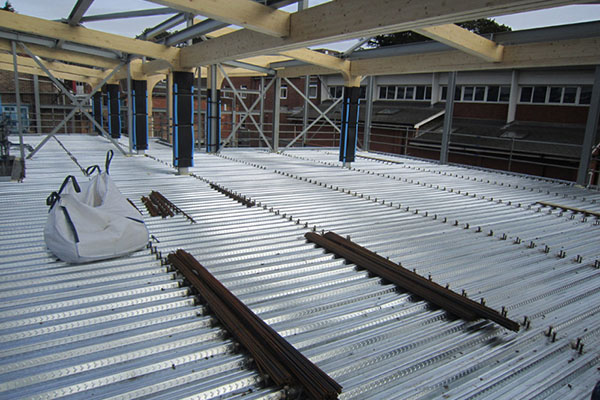

Steel deck or floor deck are widely use nowadays, for following advantage:
1.Reduce steel frame weight
2.No need formwork for concreting
3.Install speed faster
4.Safe working platform for workers.

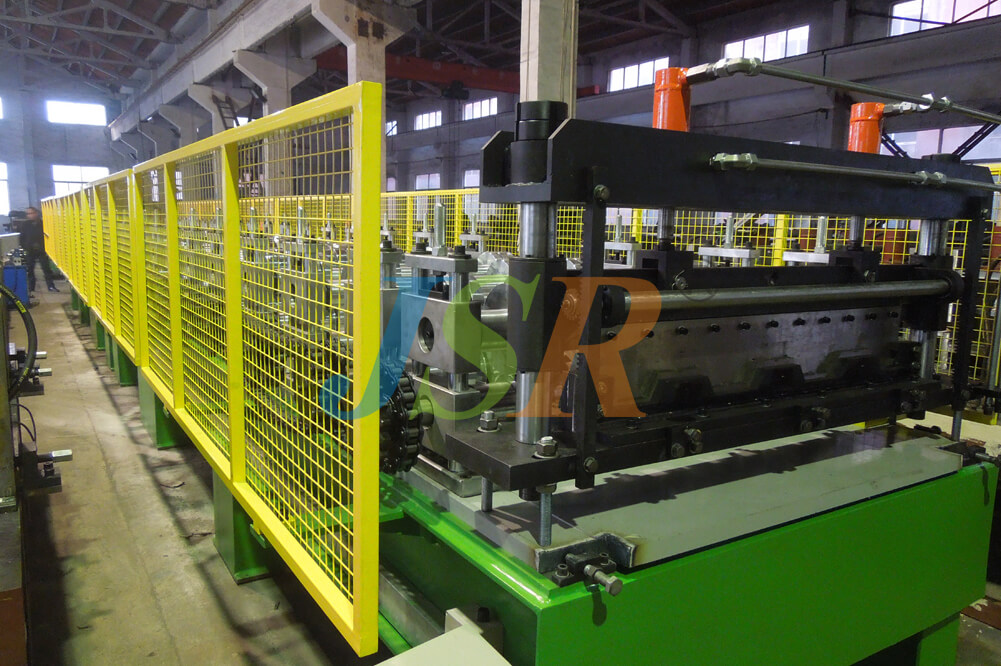

JSR machinery factory manufacture all kinds of steel deck forming machine, or floor decking machine machine.
Operate easily , work automatically with PLC controller control.
Decoiler- forming - cut - run out

• India Customer
• Australia Customer
• South America Customer
