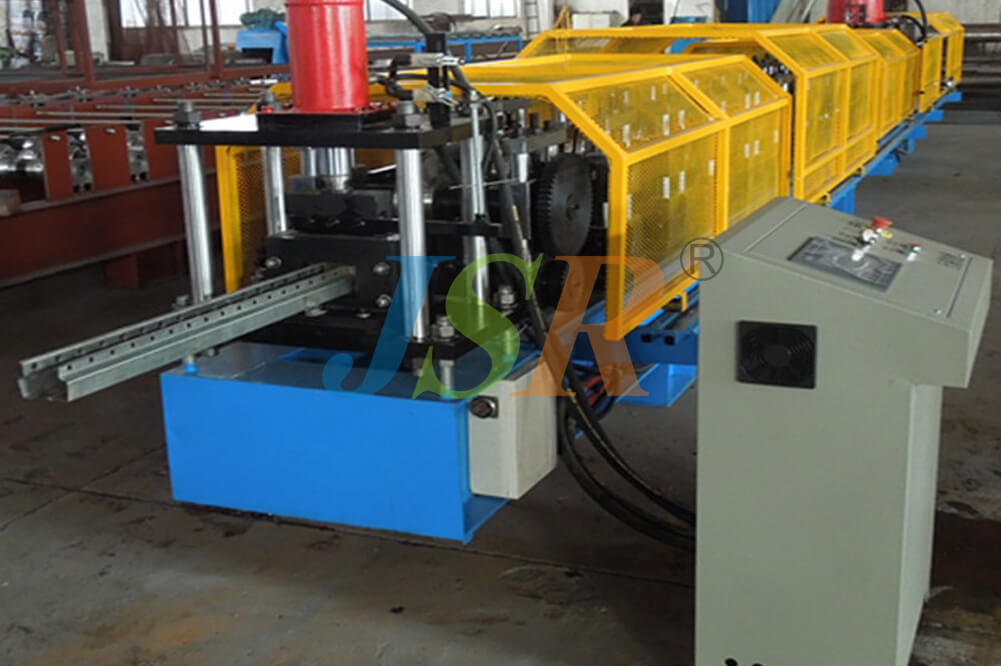

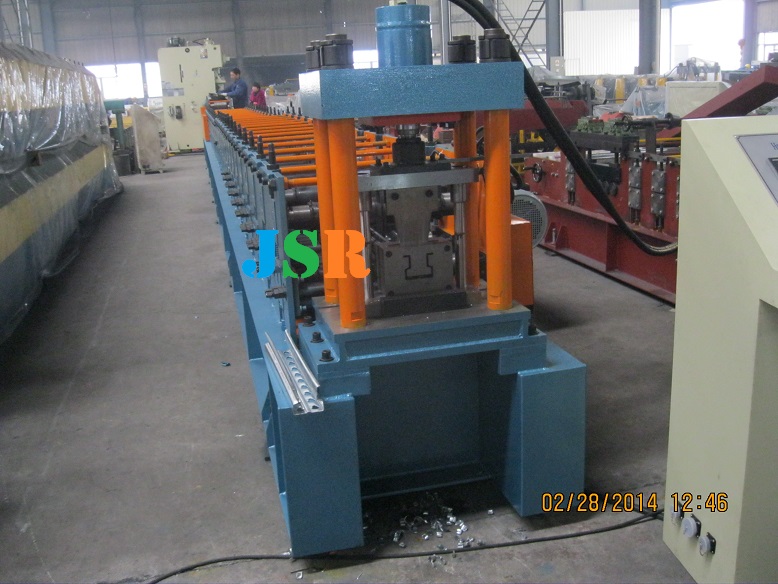

Storage Racks Roll Forming Machine
According to the requirement of working speed, upright rack machine can equip with hydraulic punch, working speed about 4m/min, or with punch machine, speed about 8m/min, if make loop in the floor, speed is faster
  • Advantage

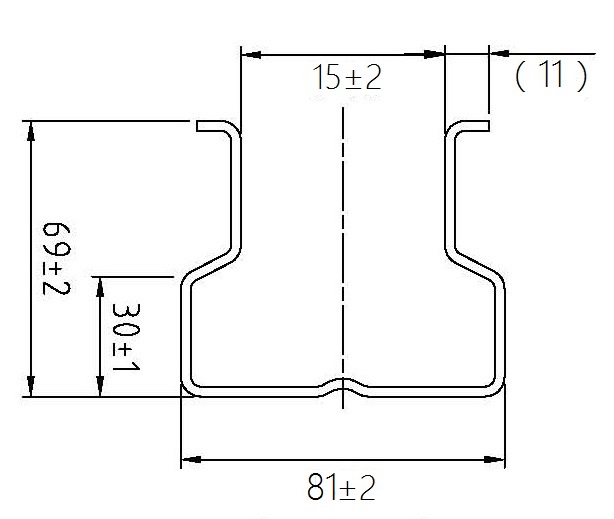

  • Popular profile
  • Application
  • Customer Comment
Technical Details
The Line’s Specifications
Weight About 10000kgs
Whole line’s dimension About 25m x 2m x 1.6m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 2.0-2.5mm
Coil width 238mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 22-26
Diameter of forming rollers shafts 82mm
Roll Forming Speed 8-10m/min
Production Speed 4-6m/min
Forming rollers material CR12 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 15kw
Hydraulic unit motor power: 7.5kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Leveling system 1 set
Punching system 1 set
Roll Forming system 1 set
Hydraulic Cutting system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Run outs tables 1 set

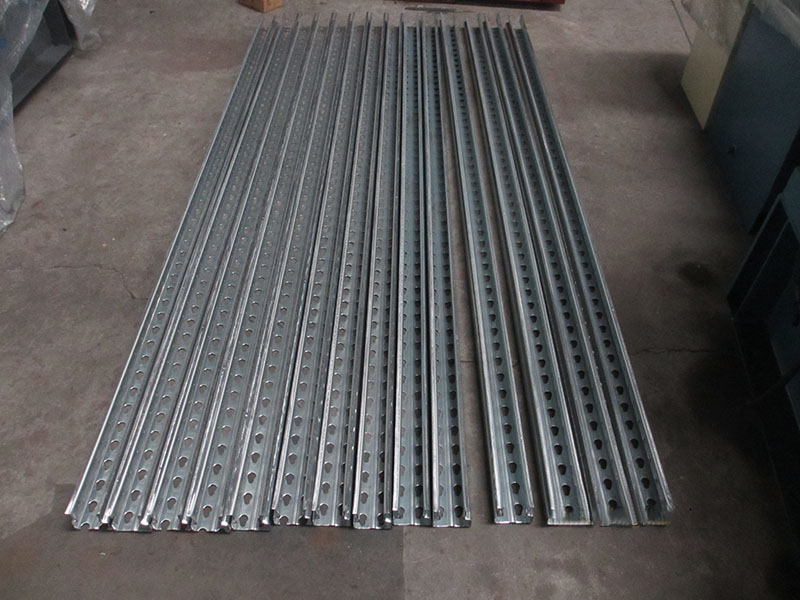

  • End products view

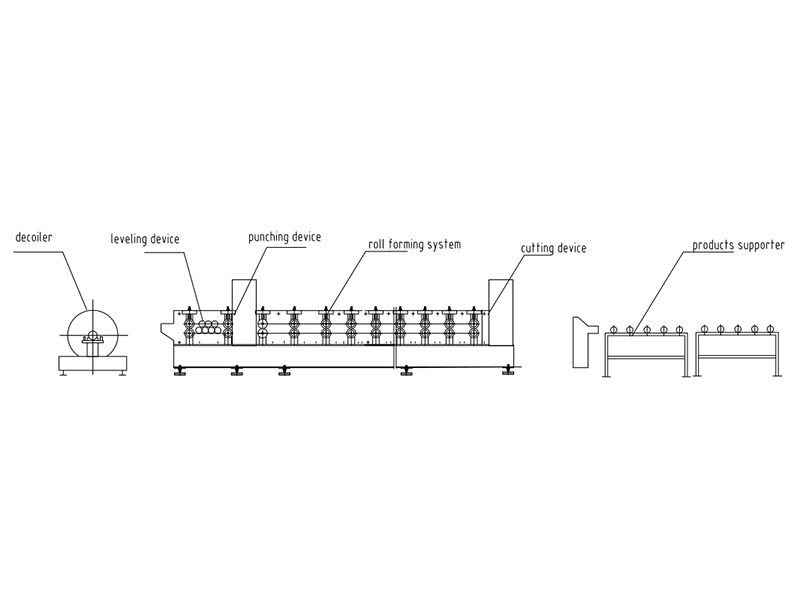

  • Layout drawing of machine for reference

upright rack machine with hydraulic punch working speed aboutm/min

if with punch machine, working speed more than 8m/min

  • Special rollers design, more precise and solid
  • Shaft diameter: 55mm or more, according to profile
  • Mitsubishi PLC and converter
  • Tool box and technical support

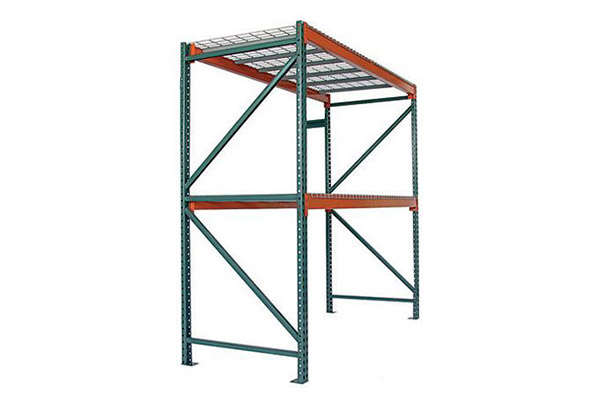

Racks provide secure upright storage as well as quick and easy upright set-up.

JSR machinery factory manufacture Rack forming machine professionally.
Operate easily , work automatically with PLC controller control.
Decoiler-Punch- forming -cut - run out
