Technical Details

Machine Specifications
Weight	About 3500kgs
Size	About 6m x 1.6m x 1.5m (length x width x height)
Color	Main color: blue
	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	0.3-0.6mm
Coil width	153mm and 175mm
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	12-14
Diameter of forming rollers shafts	60mm
Roll Forming Speed	15-20m/min
Forming rollers material	No.45 steel, coated with chromed treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric Power requirement	Main motor power: 5.5kw
	Hydraulic unit motor power: 3kw
Electric voltage	According to customer’s requirement

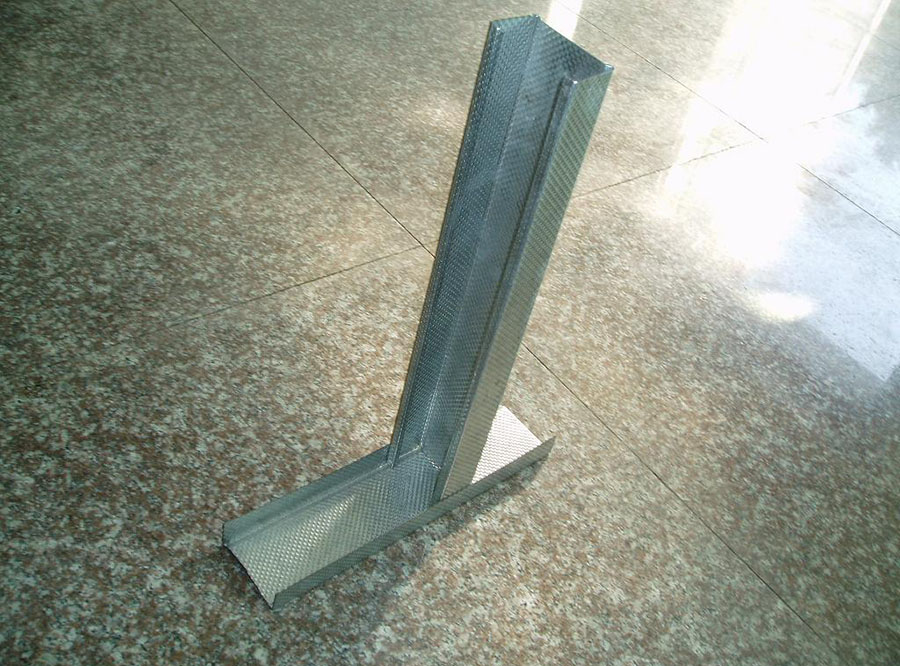

• Product Sample

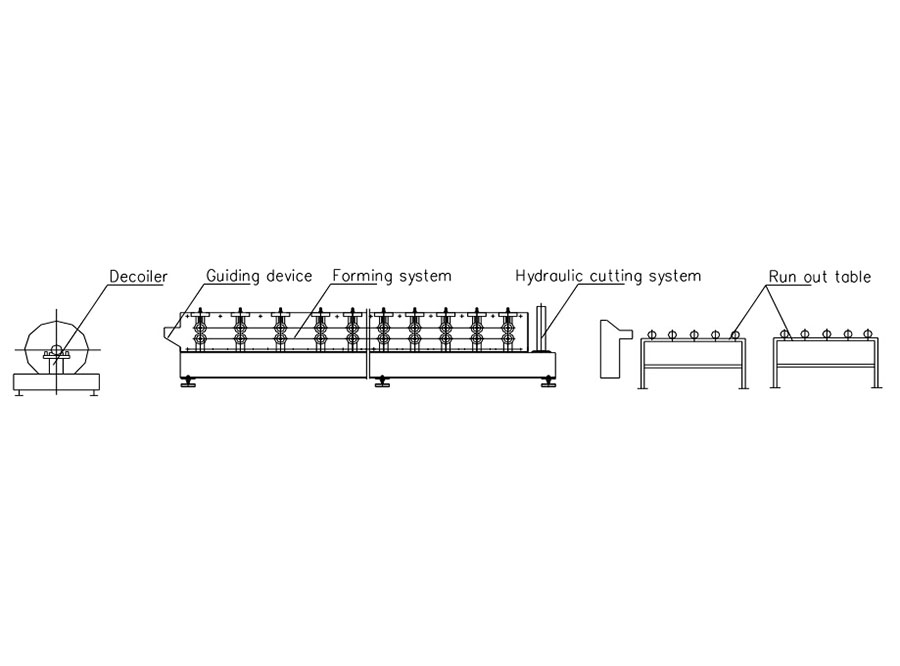

• Layout drawing of machine for reference

• Special rollers design, more precise and solid
• Shaft diameter: 55mm or more, according to profile
• Wall plate thickness 18mm
• Mitsubishi PLC and converter
• Tool box and technical support
•

•

•

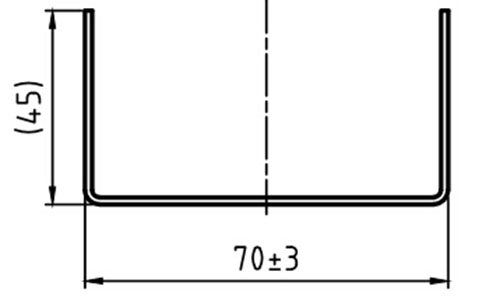

• 70-45 track

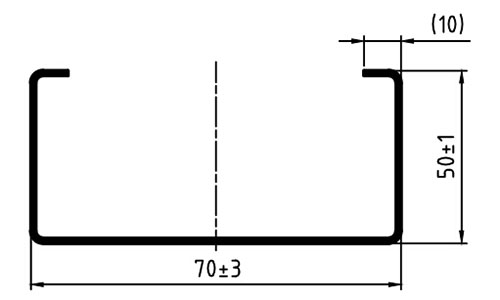

• 70-50 stud

JSR Machinery factory will design drywall (stud and track) forming machines according to customers ‘ requirement.
If stud and track width same, stud and track can be made from the same machine, just feeding in different width for stud and track.
If stud and track width difference small, for example, 1mm or 2mm, we will design another three stations rollers as a whole set to replace, therefore, the same machine can make stud and track.
If your production is big, we suggest you buy two machines, one machine for stud and one machine for track, two machines work together.

Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut - run out
