Ternium TRD-91.5 Roofing Deck Rolling Machine
Ternium TRD-91.5 Roofing Deck Rolling Machine

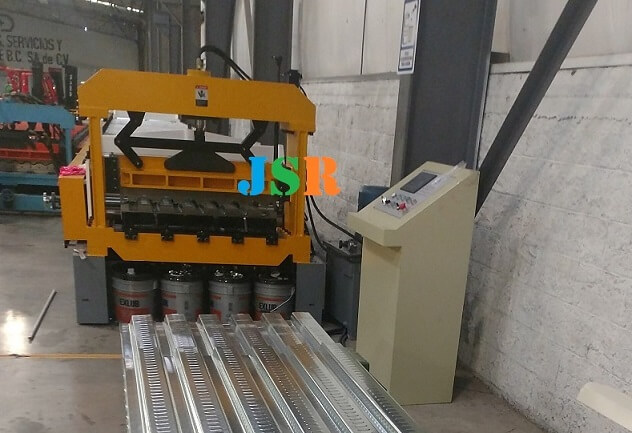

Ternium TRD-91.5 Roofing Deck Rolling Machine is Popular in Mexico. about 27 roller stations, 22kw main motor,mitsubishi or siemens control.
  • Advantage
  • Popular profile
  • Application
  • Customer Comment
  • working video in customer factory
Technical Details
Machine Specifications
Weight About 18000kgs
Size About 16m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 0.8-1.2mm
Yield Strength 235Mpa
Main Technical Parameters
Diameter of forming rollers shafts 85mm
Roll Forming Speed 10-15/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 2x11kw
Hydraulic unit motor power: 5.5kw
Electric voltage According to customer's requirement



  • Layout drawing of machine for reference


Ternium TRD91.5 with exclent structure capicity.

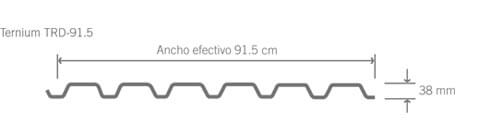

covering 914.4mm(36'')
for 18-24 gauge
for any length
Mitsubishi or siemens control, makes roll former automatically running.

you can imput 20 group of data, each data as deck length and deck pieces, forming lines make metal deck one by one

this deck machine can make emboss patten or not, just loose emboss roller or not.

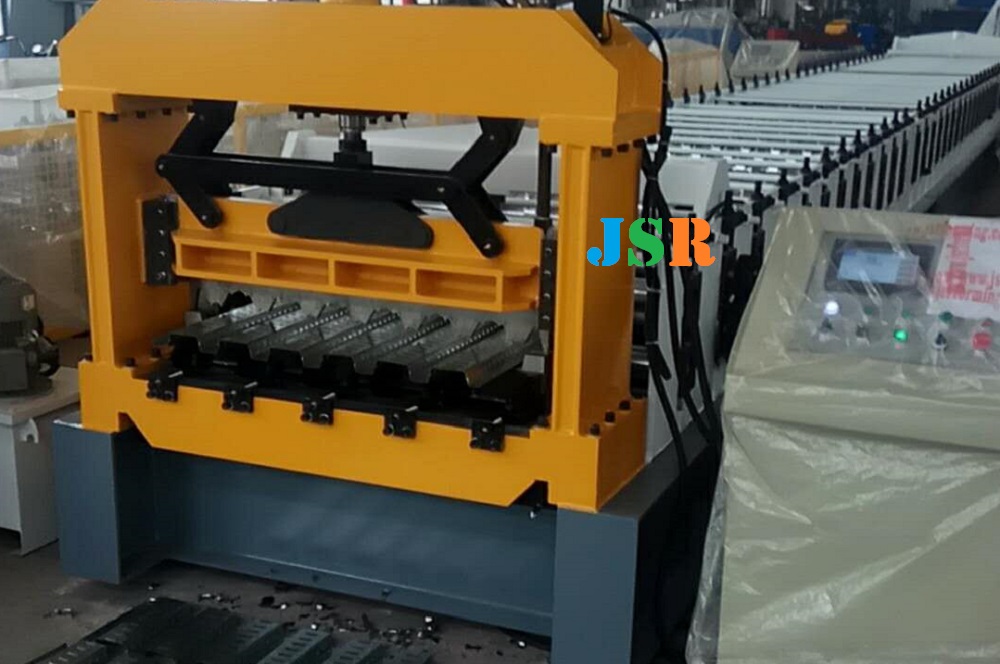

1.5'' deck roll forming machine with 36 roller stations, two 11 kw main motor  to move the line,  5.5kw hydraulic motor to cut deck length,solid shaft 85mm, whole machine weight about 18 ton.
mitsubishi or siemens control.




  • Solid shaft diameter 85 mm or more according to design
  • Wall thickness 20mm
  • Mitsubishi PLC and converter
  • Tool box and technical support



  • YX38-151-906
  • YX44-130-910
  • YX51-200-600
  • YX51-240-960
  • YX51-313-940
  • YX51-315-945
  • YX60-225-900
  • YX64-305-915
  • YX65-185-555
  • YX76-305-915



Steel deck or floor deck are widely use nowadays, for following advantage:
1.Reduce steel frame weight
2.No need formwork for concreting
3.Install speed faster
4.Safe working platform for workers.

JSR machinery factory manufacture all kinds of steel deck forming machine, or floor decking machine machine.
Operate easily , work automatically with PLC controller control.
Decoiler- forming - cut - run out
