Walking Board Making Machine with special design
Jingshirui is one of the toppest walking board making machine in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets
  • Advantage
  • Popular profile
  • Application
  • Customer Comment
Technical Details
The Line’s Specifications
Weight About 38000kgs
Whole line’s dimension About 30m x 3m x 1.5m (length x width x height)
Color Main color: green
Warning color: yellow
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 1-1.5mm
Coil width According to products size
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations About 30
Diameter of forming rollers shafts 75mm
Roll Forming Speed 10-15m/min
Production Speed about 4m/min
Forming rollers material Gcr15 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system Panasonic PLC and Yaskawa Converter
Electric Power requirement Main motor power: 30kw
Hydraulic unit motor power: 22kw
Electric voltage According to customer’s requirement

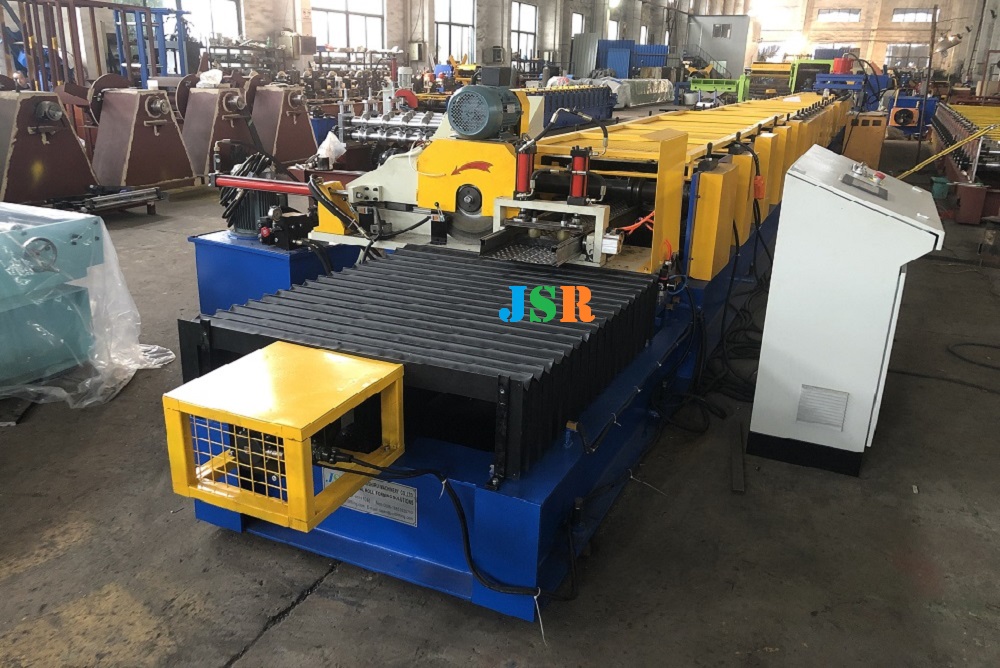

Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Leveling system 1 set

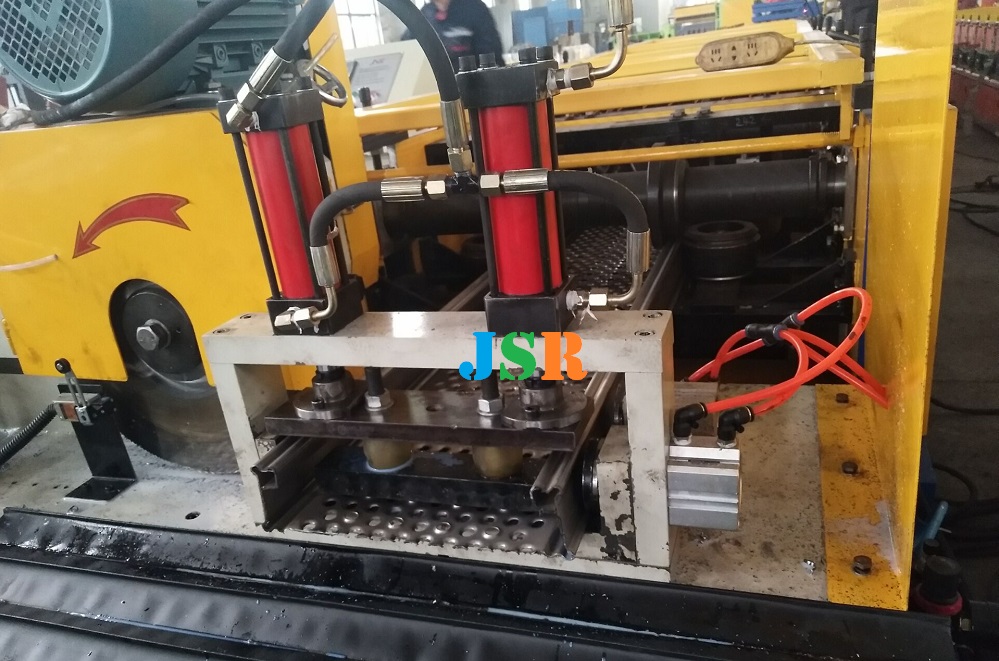

Punching device 1 set
Roll Forming system 1 set
Hydraulic Cutting system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Run outs tables 1 set

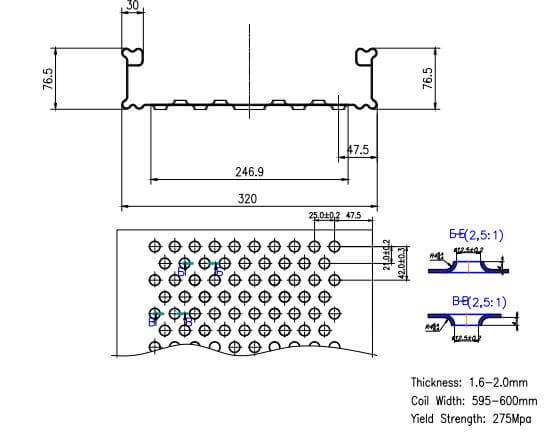

  • Layout drawing of machine for reference
  • Special rollers design, more precise and solid
  • Solid Shaft diameter: 75 mm according to profile
  • Mitsubishi PLC and converter
  • Tool box and technical support



The main function of steel plank is providing the studio for the workers. There are anti-sliding hole and drainage hole on it.

JSR machinery factory manufacture scaffolding planks forming machine professionally.
If machine with punch machine, working speed about 10m/min,
If machine with hydraulic punch, working speed about 4m/min,
Gearbox can be designed in the machine for transmision.

Operate easily , work automatically with PLC controller control.
Decoiler-Punch- forming -cut - run out
