Welding Beam Roll Forming Machine
Welding Beam Roll Forming Machine
Welding Beam Roll Forming Machine
You can buy good quality Welding Beam Roll Forming Machine, we are the best distributor from China market.
  • Advantage
  • Customer Comment
Technical Details
The Line’s Specifications
Weight About 7000kgs
Whole line’s dimension About 12m x 2m x 1.6m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 2.0mm
Coil width 238mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 20
Diameter of forming rollers shafts 82mm
Roll Forming Speed 8-10m/min
Production Speed 4-6m/min
Forming rollers material GCR15mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: about7.5kw
Hydraulic unit motor power: about 5.5kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Leveling system 1 set

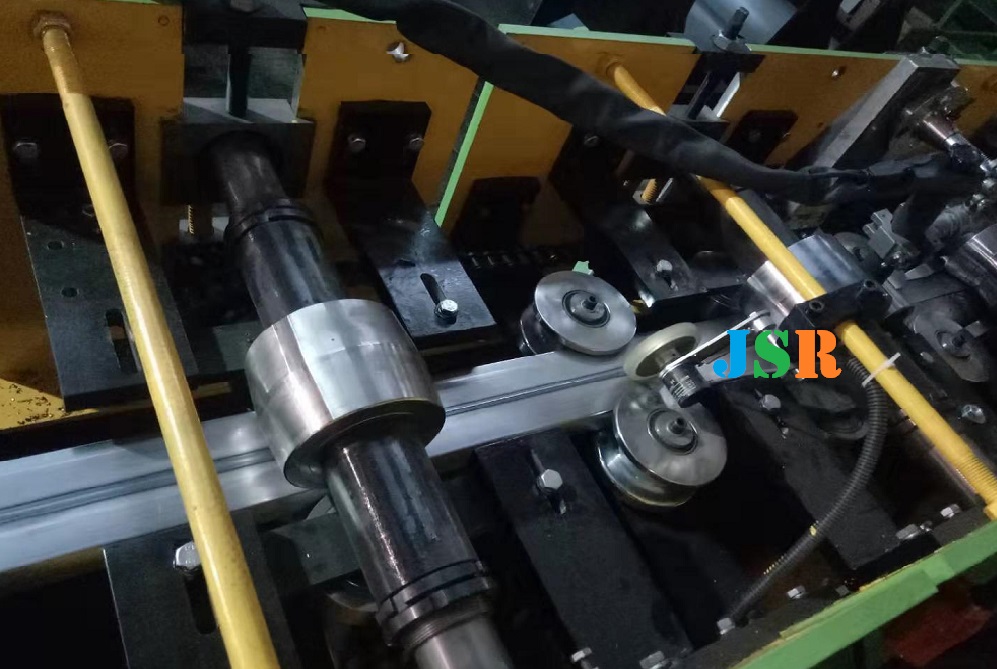

Roll Forming system 1 set

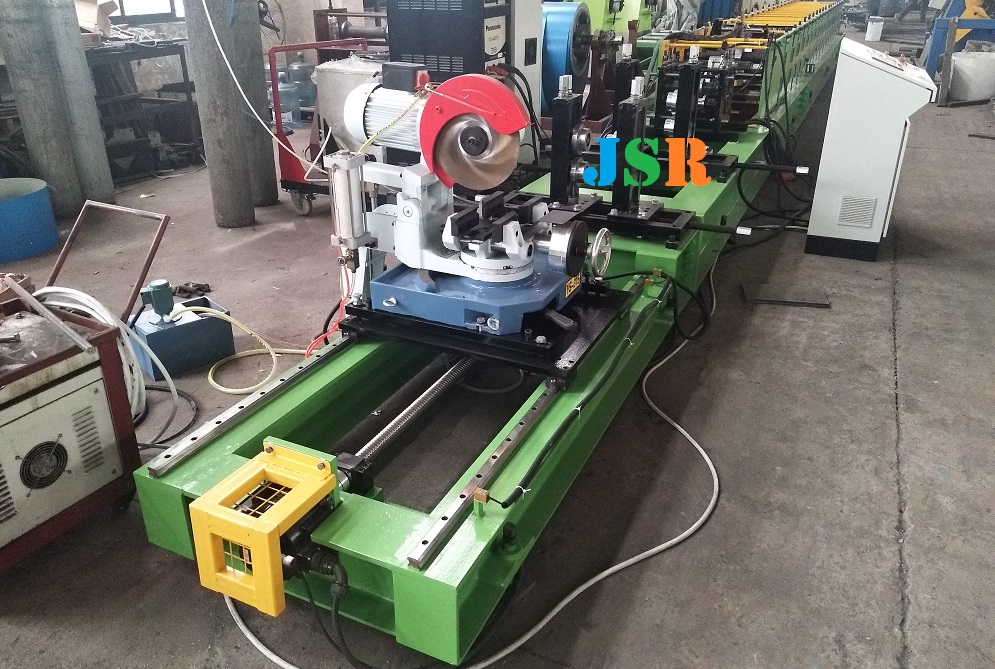

Sawing system 1 set
PLC control box 1 set
argon protect welding device 1 set
Run outs tables 1 set


  • Special rollers design, more precise and solid
  • Shaft diameter: 55mm or more, according to profile
  • Mitsubishi PLC and converter
  • Tool box and technical support
