Technical Details

Machine Specifications
Weight	About 9000kgs
Size	About 10m x 1.4m x 1.8m (length x width x height)
Color	Main color: blue
	Warning color: yellow
Suitable Raw Material
Material	Galvanized Steel Coils
Thickness	1.5-3.0mm
Coil width	According to products size
Yield strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	14-16
Diameter of forming rollers shafts	75mm
Roll Forming Speed	10-15m/min
Production Speed	4-6m/min
Forming rollers material	Gcr15 mould steel, with quenched treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	PLC and Converter
Electric power requirement	Main motor power: 15kw
	Hydraulic unit motor power: 5.5kw
Electric voltage	According to customers requirement

Layout of CZ

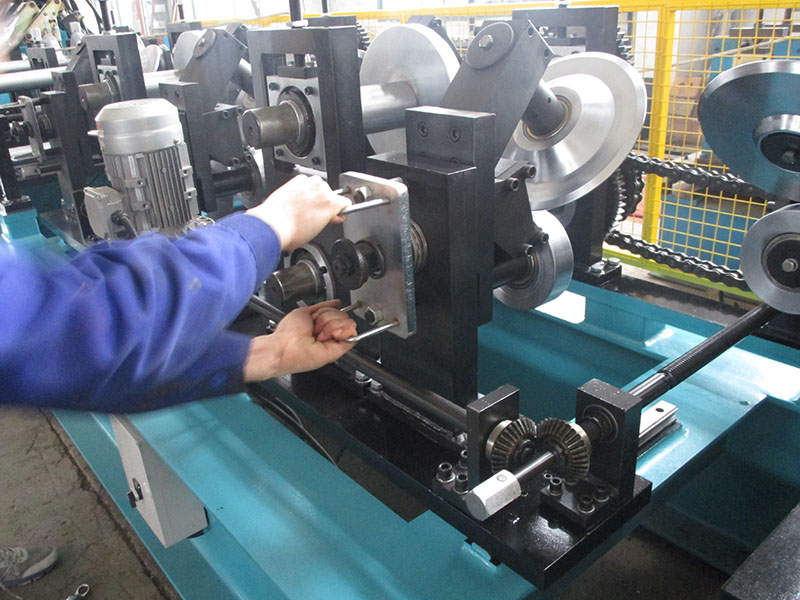

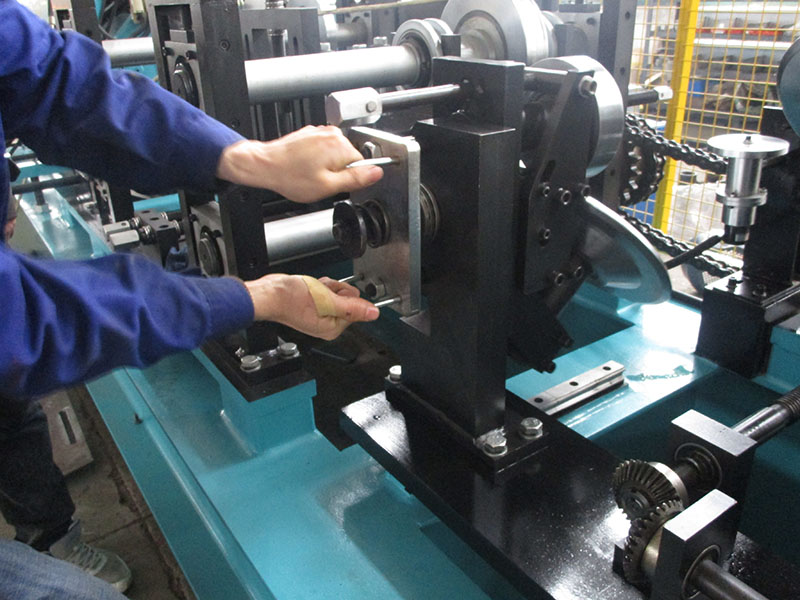

Change size within 10 minutes

•
•
•
•

•


Change between C and Z within 30 minutes

•
•

• C80-300
• Z120-300

Purlins are quite popular these days and are available in different shapes and sizes, most commonly use as C purlins and Z purlins.
JSR machinery factory make Purlin forming machine, which can produce both C and Z in the same machine, only change one hour to change between C and Z.
Besides, Purlin machine can produce size between 100-300 with easy adjustment, which take only ten minutes.
Important, our purlin machine can design with punch device with function of punch holes on purlin for screwing during installation.

Operate easily , work automatically with PLC controller control.

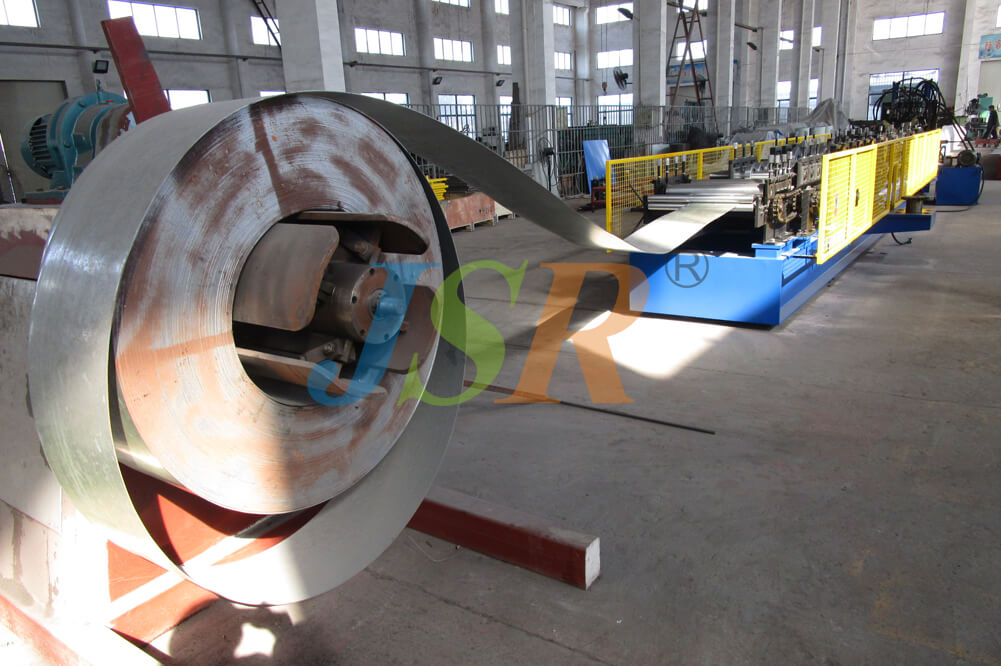

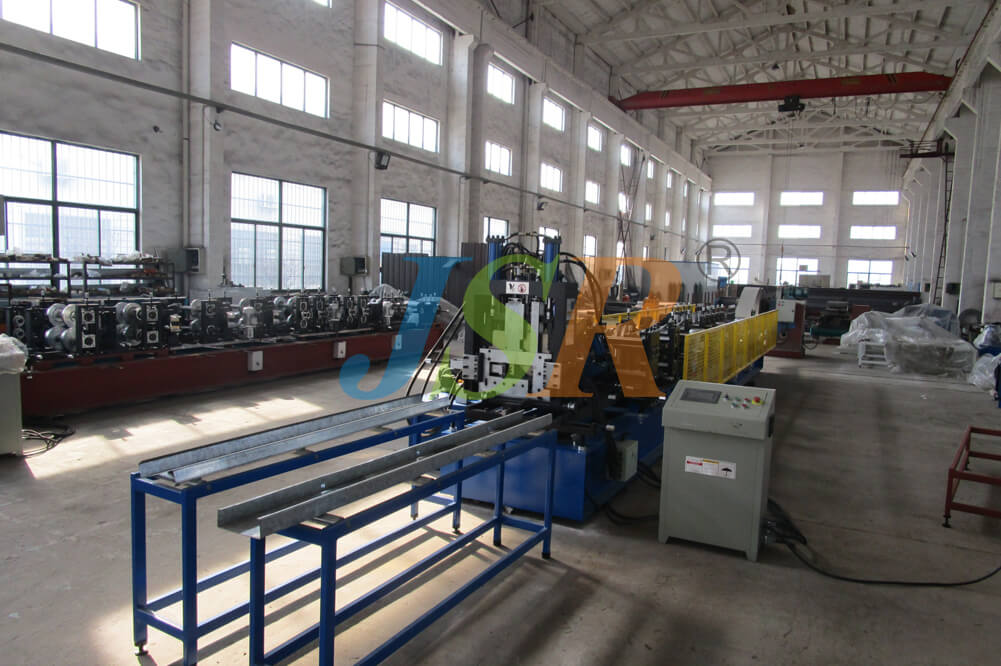

Decoiler- forming- punch - cut - run out
