EPS/Rockwool Sandwich Panel Machine
EPS/Rockwool Sandwich Panel Machine
As a specialist of EPS/Rockwool Sandwich Panel Machine , Jingshirui can offer you comprehensive selections of goods in this industry
  • Advantage

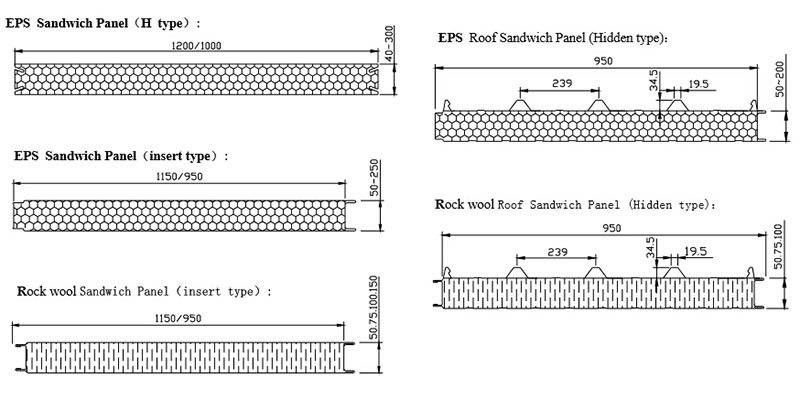

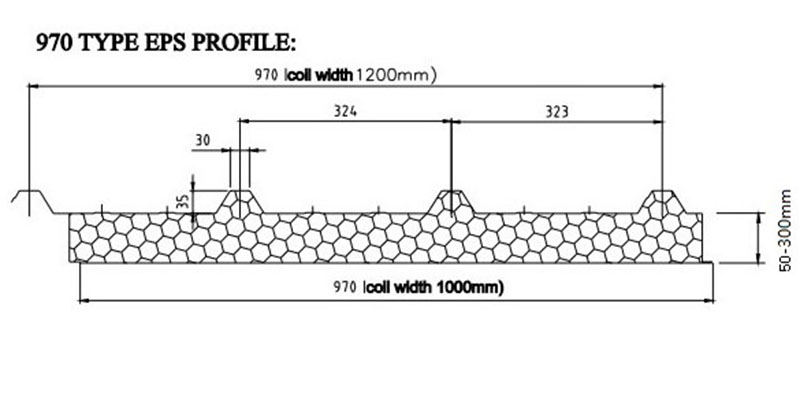

  • Popular profile
  • Customer Comment
Technical Details
Machine Specifications
Weight About 21000kgs
Whole line’s dimension About 40m x 3.0m x2.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Inner Core Material
Polystyrene (EPS) Block-shape
Rockwool Strips
Outer Skin Material
Thickness 0.3-0.7mm
Coil width 1200mm
Material Galvanized steel coils
Yield Strength 235Mpa
Main Technical Parameters
Production speed EPS Sandwich Panels: 3-5m/min
Rockwool Sandwich Panels: 1.5-2.5m/min
Controlling system PLC and Converter
Electric power About 30kw totally
Electric voltage 380V/3Phase/50HZ or as per clients requirement
Air pressure 0.7Mpa (for buyer to prepare air compressor)
Suitable working temperature Around 25 degree
Main Components
Decoiler (manual and automatic for options) 1 set
Roll Forming machine 1 set
EPS Feeding table 1 set
Heating device 2 sets
Laminator system 1 set
PLC control box 1 set
Cutting unit 1 set
Run racks tables 1 set

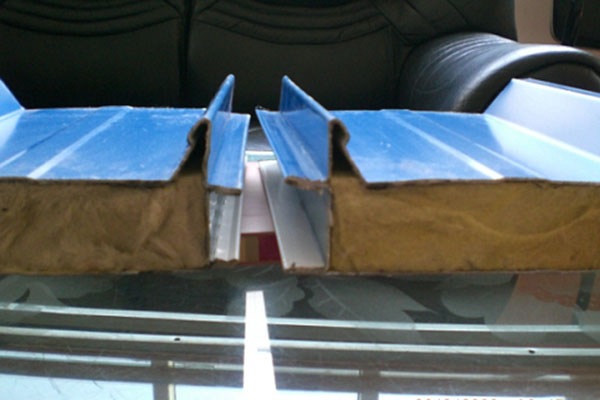

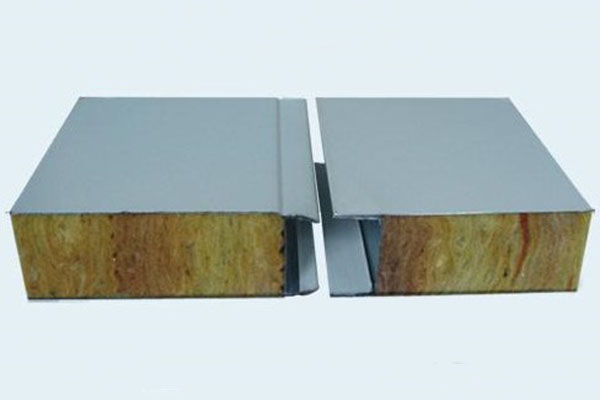

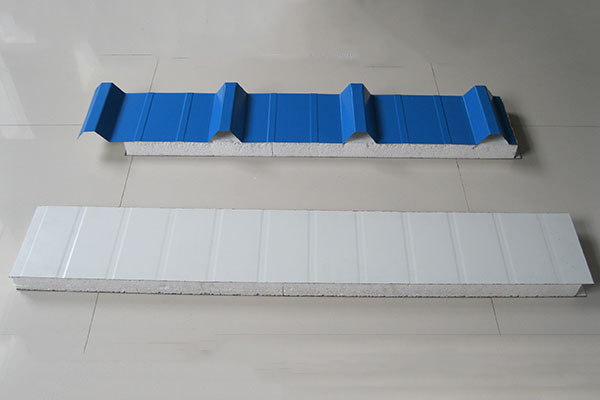

  • End product view
  • End product view
  • End product view

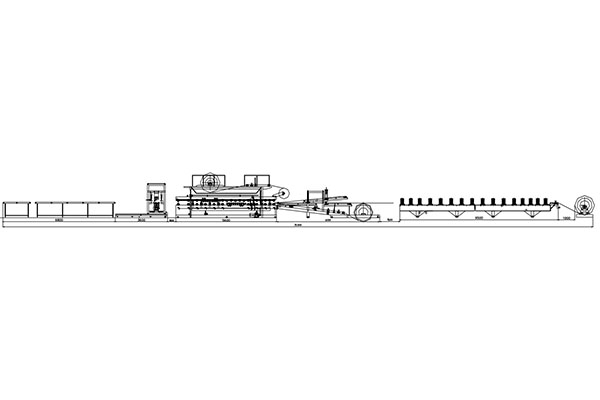

  • Layout drawing of machine for reference
  • Special rollers design, more precise and solid
  • Shaft diameter: 75 mm according to profile
  • Mitsubishi PLC and converter
  • Tool box and technical support



  • EPS & Roclwool
  • EPS Roof
  • India Customer
  • Australia Customer
  • South America Customer
