Furring Channel Forming Machine

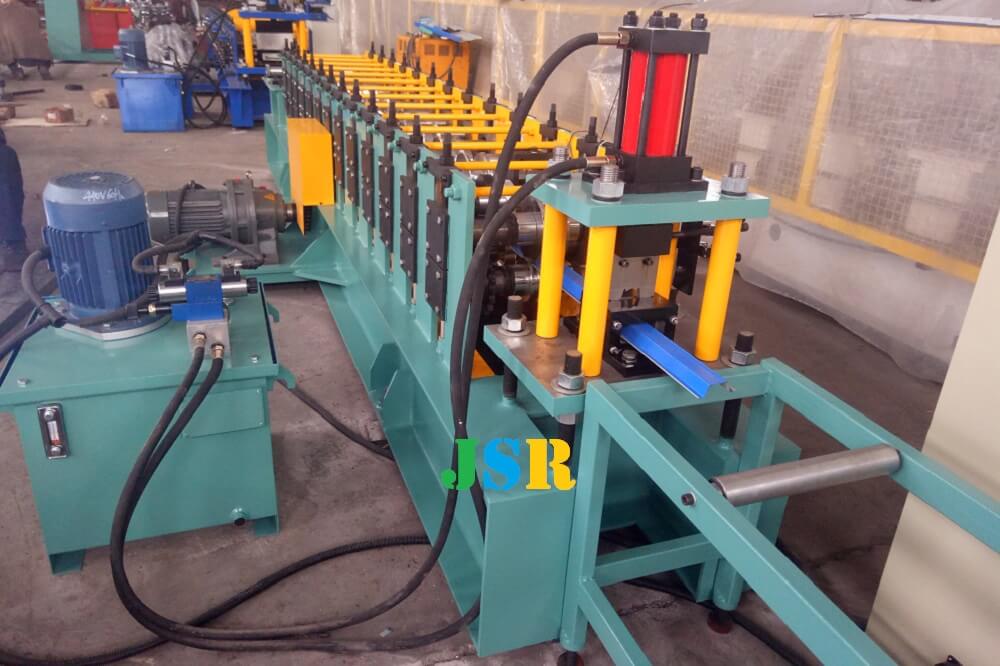

Furring Channel Forming Machine
Jingshirui is one of the toppest omega forming machine,drywall forming machine,Furring Channel Forming Machine in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets
  • Advantage

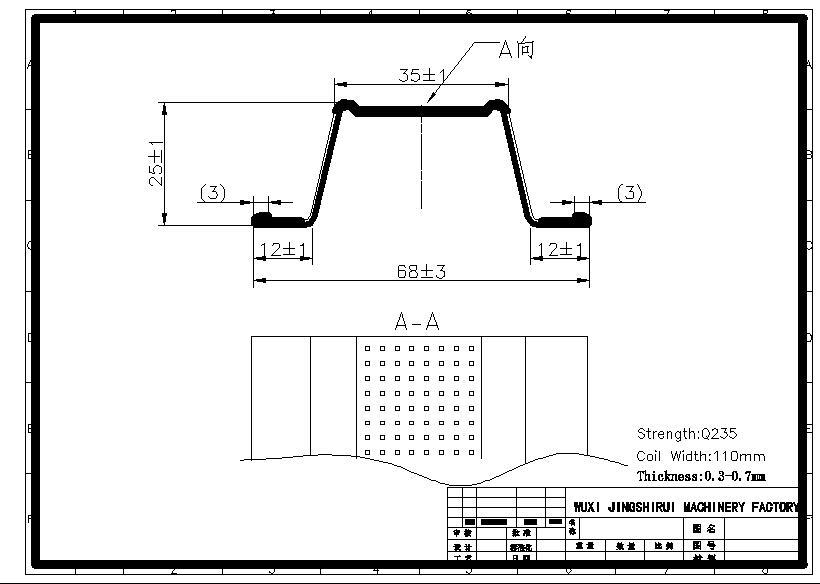

  • Popular profile
  • Customer Comment
Technical Details
Machine Specifications
Weight About 2500kgs
Size About 5m x 1.6m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized Steel Coils
Thickness 0.3-0.6mm
Coil width 112mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 12-14
Diameter of forming rollers shafts 60mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 4kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement

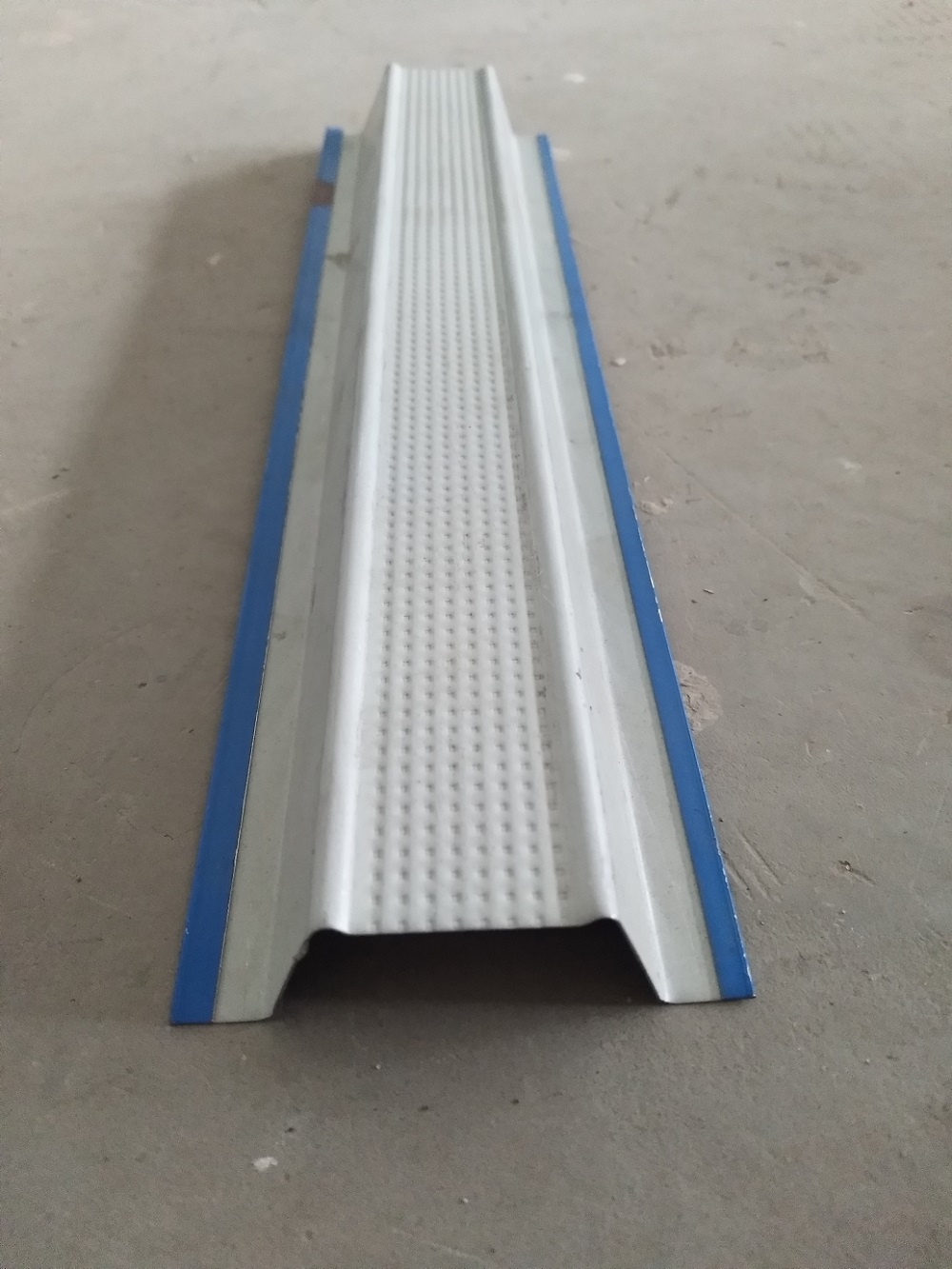

  • End products view
  • Layout drawing of machine for reference
  • Special rollers design, more precise and solid
  • Shaft diameter: 55mm or more, according to profile
  • Wall plate 18mm thick
  • Mitsubishi PLC and converter
  • Tool box and technical support



  • India Customer
  • Australia Customer
  • South America Customer
