Gutter Forming Machine
As the largest Gutter Forming Machine manufacturer in china, Jingshirui sales quality Gutter Forming Machine to customers all over the world.
  • Advantage

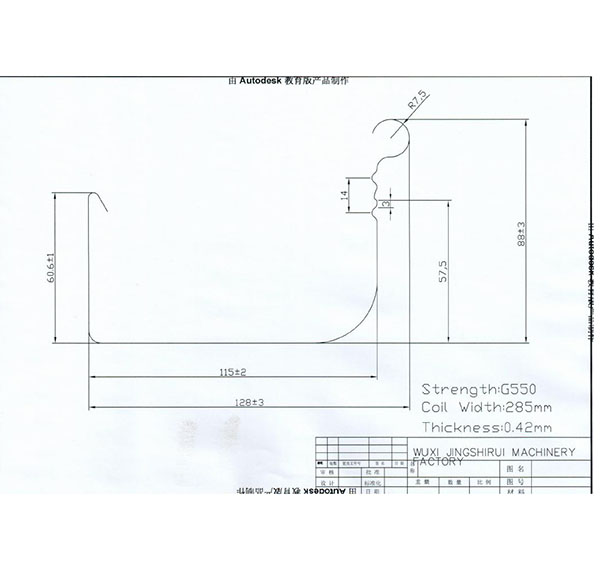

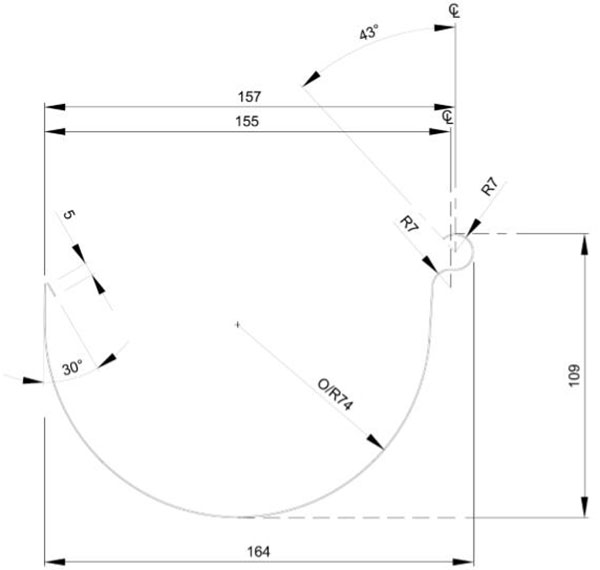

  • Popular profile
  • Application
  • Customer Comment
Technical Details
Machine Specifications
Weight About 4000kgs
Size About 6m x 1.0m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.8mm
Coil width 610mm
Yield Strength 235Mpa
Main Technical Parameters
Diameter of forming rollers shafts 55mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 4kw
Hydraulic unit motor power: 2.2kw
Electric voltage According to customer’s requirement

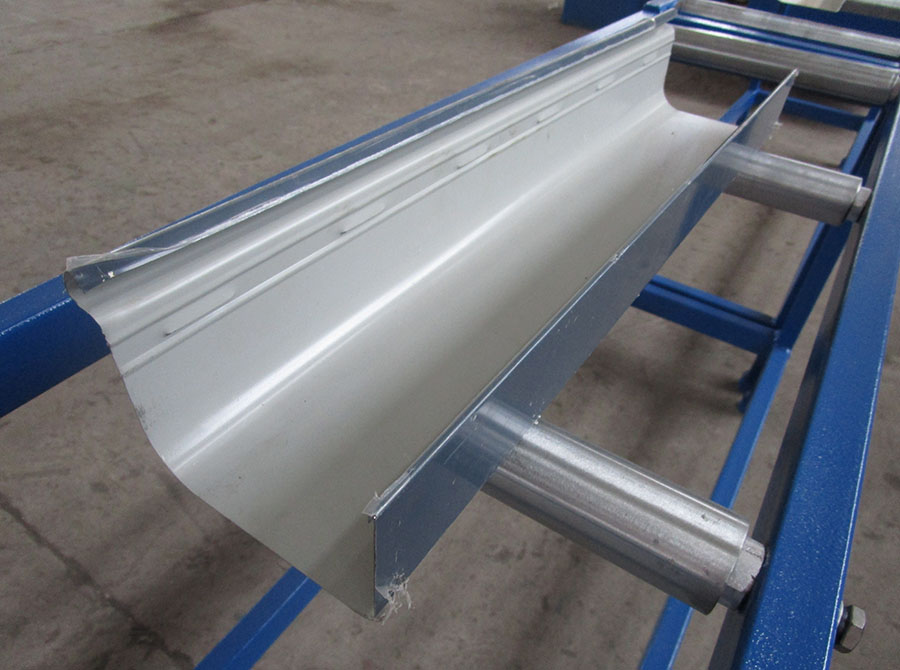

  • Product Sample

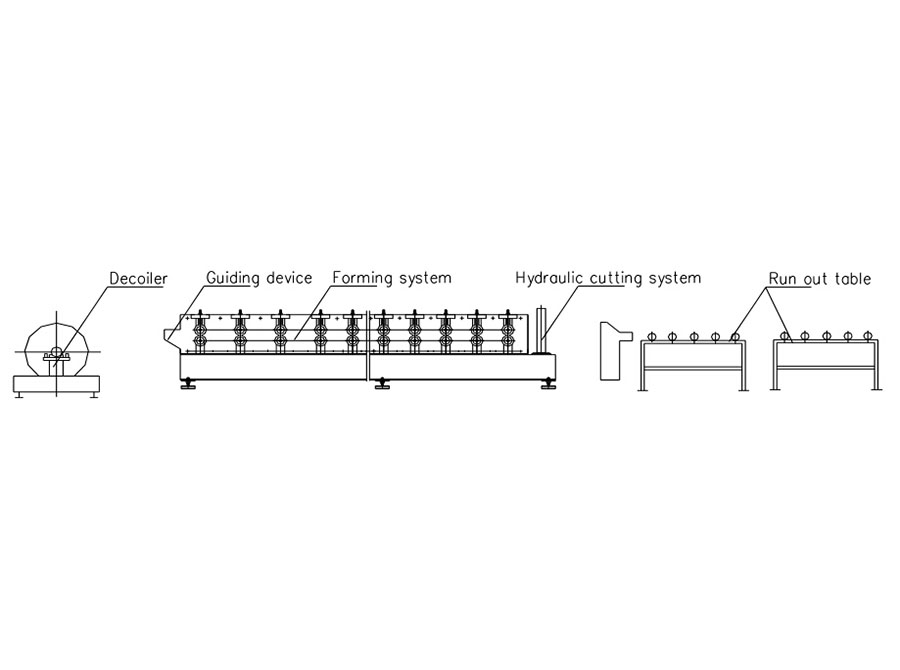

  • Layout drawing of machine (reference only)
  • Special rollers design, more precise and solid
  • Shaft diameter: 55mm or more, according to profile
  • Wall plate 18mm thick
  • Mitsubishi PLC and converter
  • Tool box and technical support



Fascia covers to protect timber against splitting flaking and peeling.
Gutter minimise the risk of serious water damage to buildings.
Downpipe is bridge let water pass from gutter to a local stormwater.
JSR machinery factory can manufacture fascia cover machine, gutter machine , downpipe machine with high quality and reasonable price to you, you will emjoy one stop purchase from us.

We already sell half round gutter machine, square gutter machine, fascia cover machine to Australia.

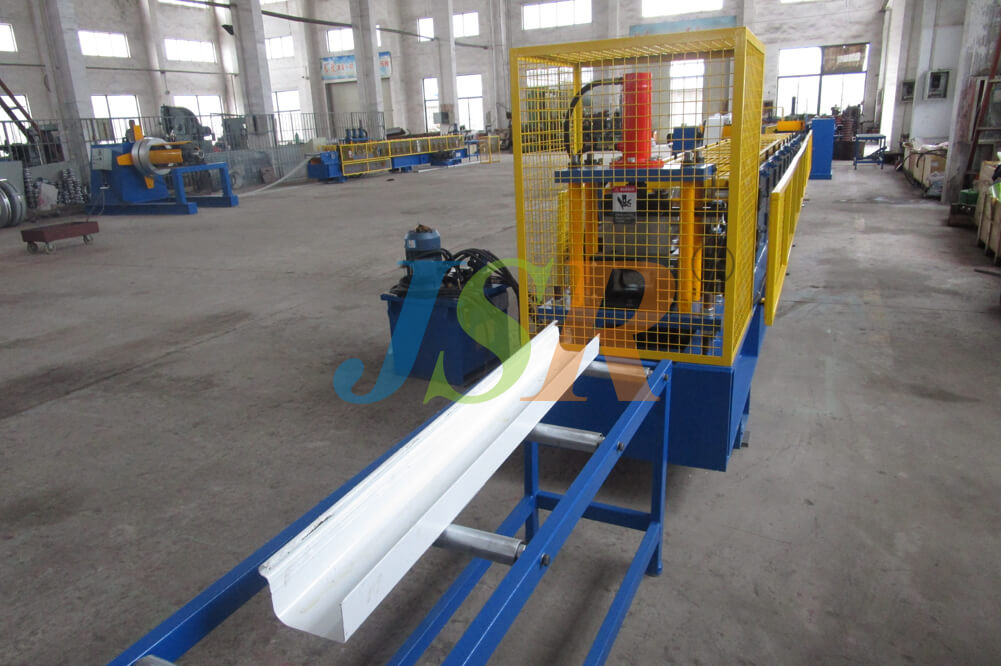

Machine work automatically, operate easily.
Decoiler- forming-cut - run out

  • India Customer
  • Australia Customer
  • South America Customer
