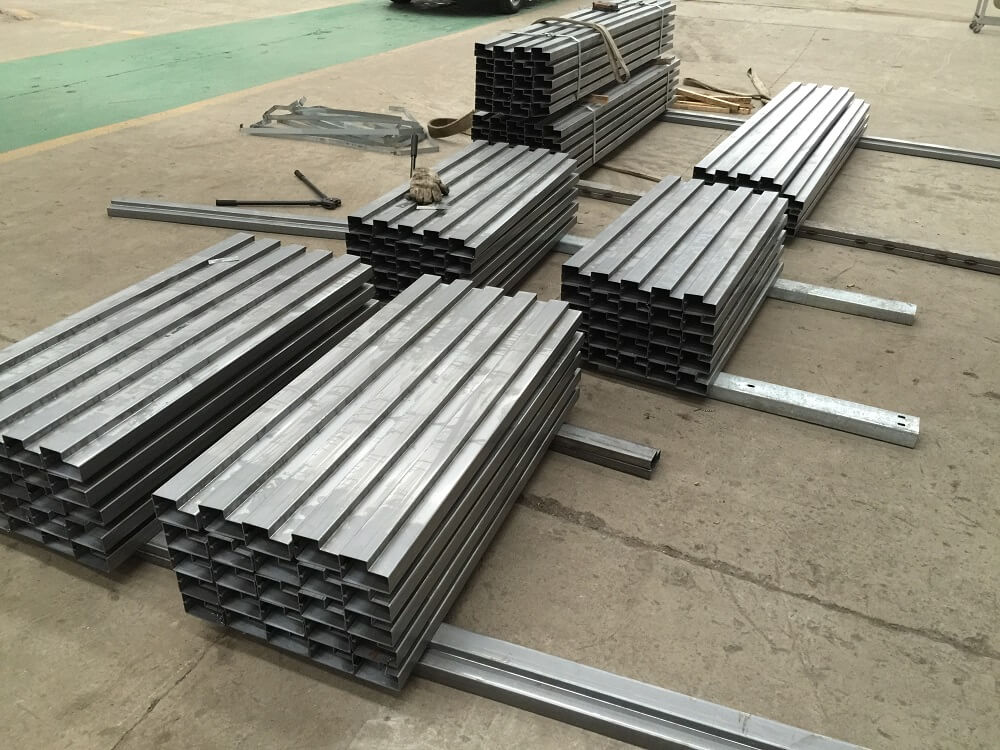

Pallet Rack Step Beams Forming Machine
Pallet Rack Step Beams Forming Machine
Pallet Rack Step Beams Forming Machine
Pallet Rack Step Beams Forming Machine
Jingshirui is one of the toppest stepbeam forming machine,rack forming machine,Pallet Rack Step Beams Forming Machine in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets
  • Advantage
  • Customer Comment
Technical Details
The Line’s Specifications
Weight About 10000kgs
Whole line’s dimension About 25m x 2m x 1.6m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized or Galvalume Coils
Thickness 2.0-2.5mm
Coil width 238mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 22-26
Diameter of forming rollers shafts 82mm
Roll Forming Speed 8-10m/min
Production Speed 4-6m/min
Forming rollers material CR12 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: about15kw
Hydraulic unit motor power: about 5.5kw
Electric voltage According to customer’s requirement
Main Components
Decoiler (manual and automatic for options) 1 set
Guiding device 1 set
Leveling system 1 set

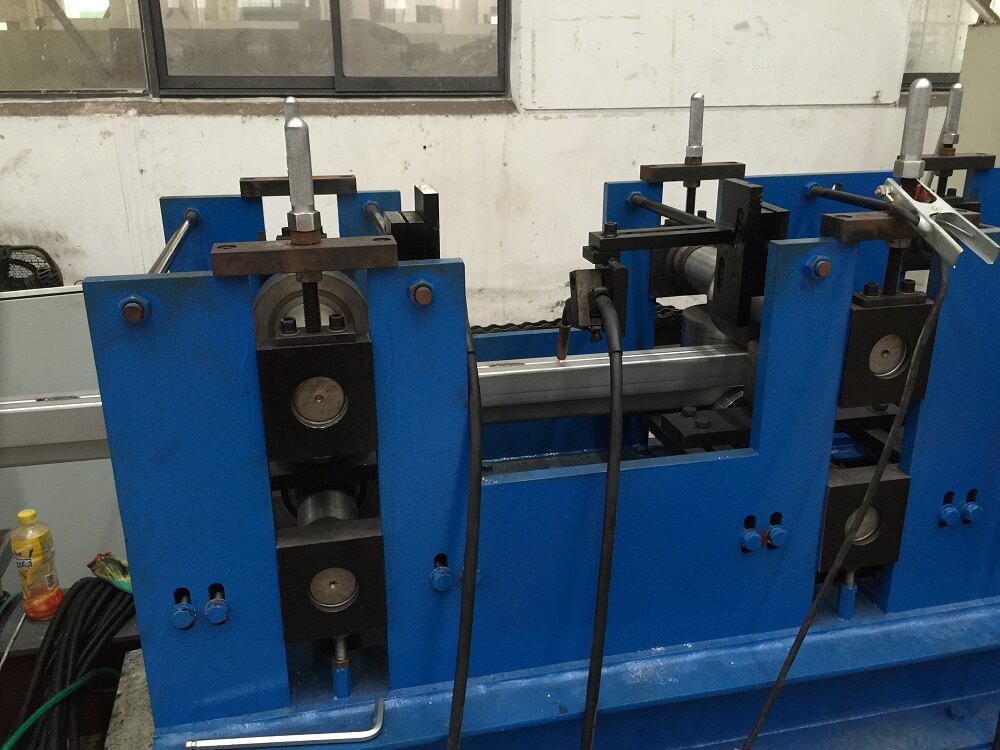

Roll Forming system 1 set

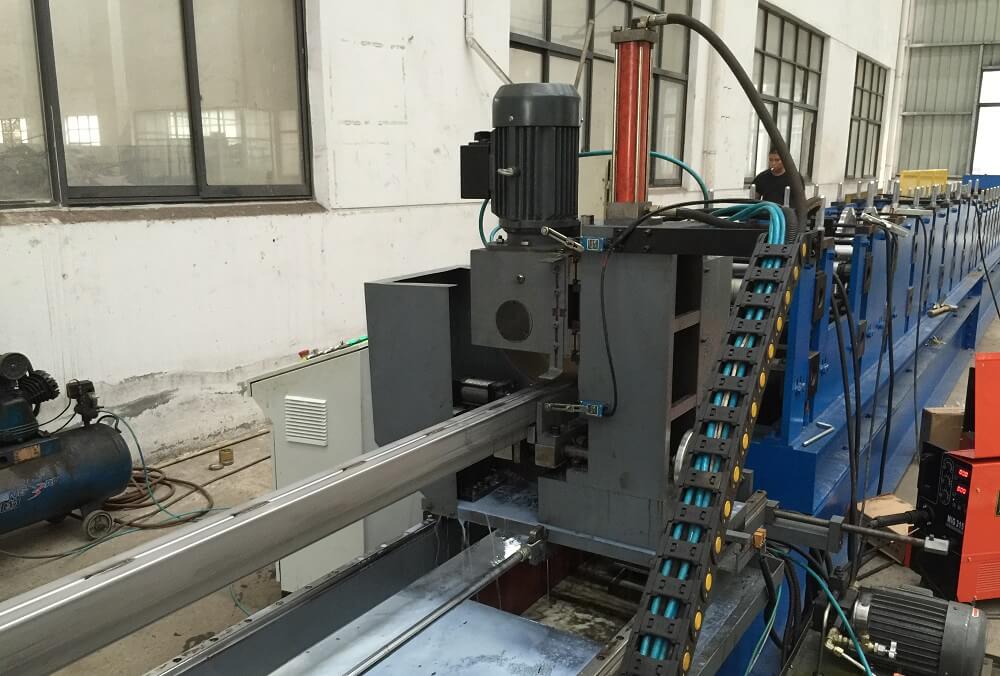

Hydraulic Cutting system 1 set
PLC control box 1 set
Hydraulic unit 1 set
Run outs tables 1 set


  • Special rollers design, more precise and solid
  • Shaft diameter: 55mm or more, according to profile
  • Mitsubishi PLC and converter
  • Tool box and technical support



  • India Customer
  • Australia Customer
  • South America Customer
