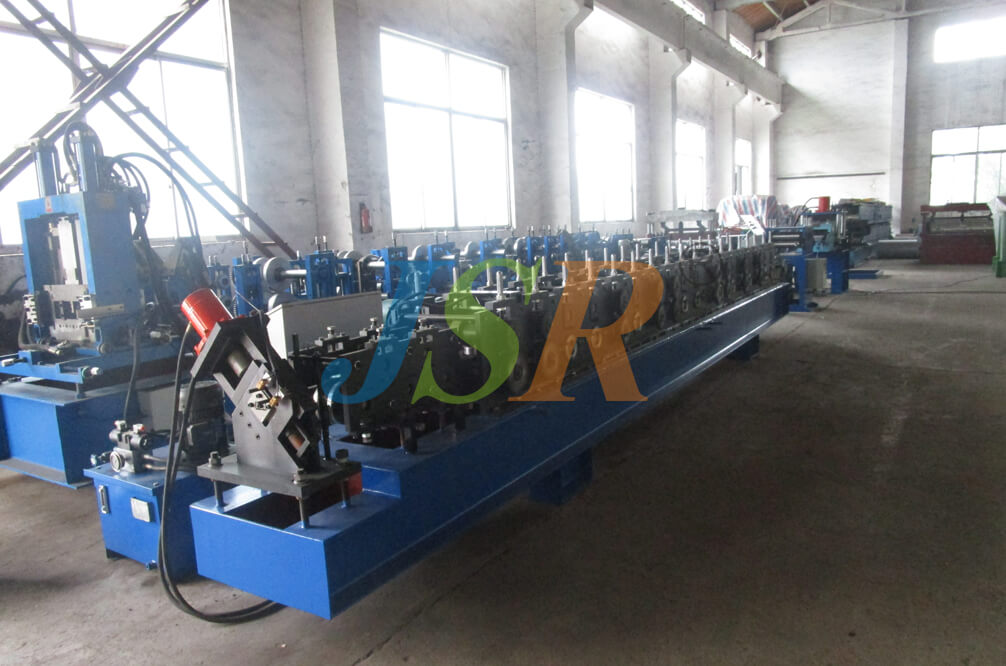

Rittal C Profile Rail Forming Machine
Rittal C Profile Rail Forming Machine
Jingshirui is one of the toppest forming equipment,c shape forming machine,Rittal C Profile Rail Forming Machine in China.During these years of exporting , Jingshirui now has rich experience in the worldwide markets
  • Advantage
  • Popular profile
  • Customer Comment
Technical Details
Machine Specifications
Weight About 6000kgs
Size About 10m x 1.0m x 1.0m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material Galvanized steel
Thickness 2mm
Yield Strength 235Mpa
Main Technical Parameters
Quantity of forming rollers stations 20
Diameter of forming rollers shafts 60mm
Working Speed 4m/min
Forming rollers material Gr15 mould steel, with quenched treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5x2 kw
Hydraulic station Motor 3kw

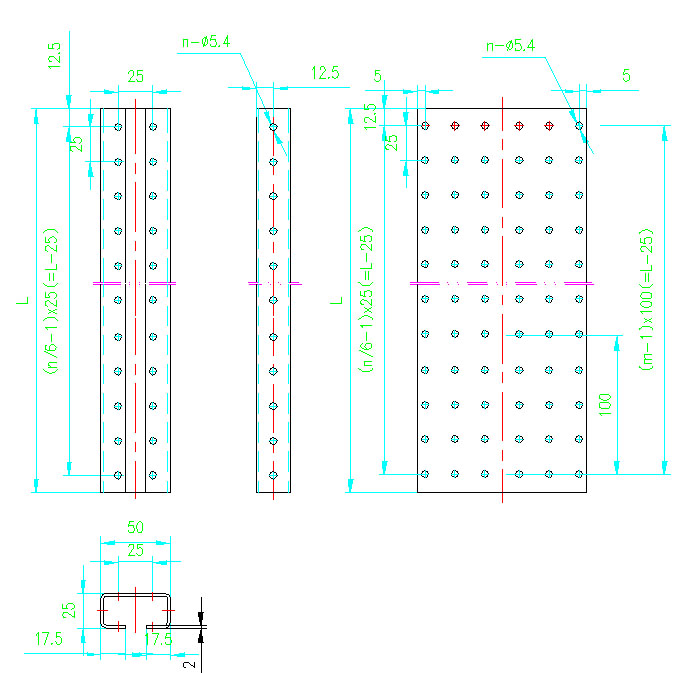

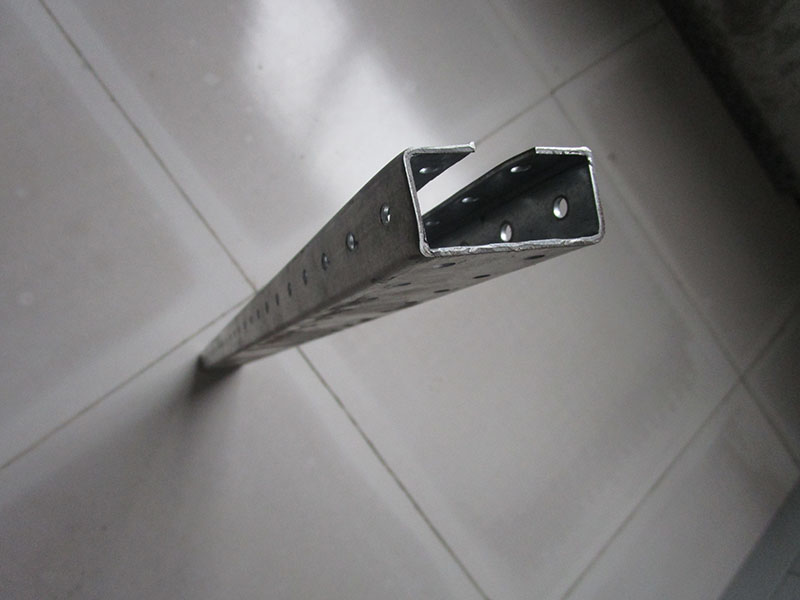

  • End product view

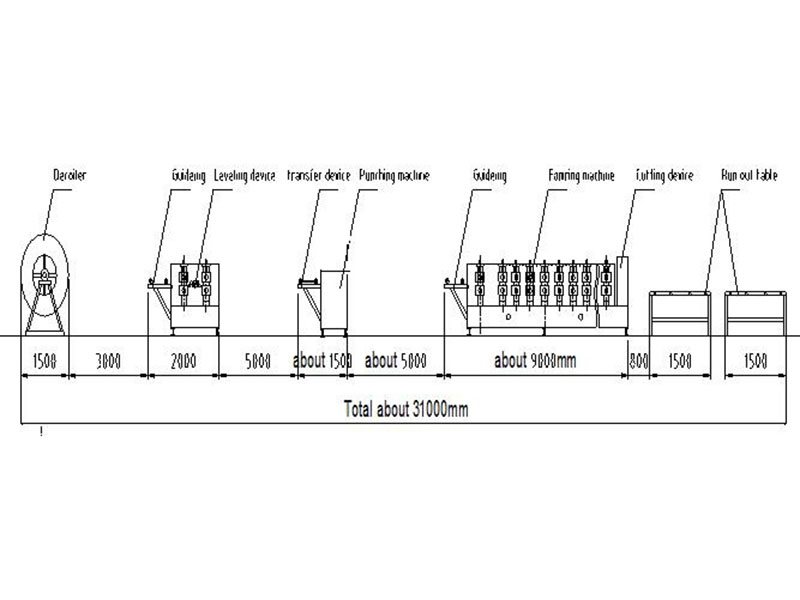

  • Layout drawing of machine for reference
  • Special rollers design, more precise and solid
  • Solid Shaft diameter: 60 mm according to profile
  • Mitsubishi PLC and converter
  • Tool box and technical support



  • India Customer
  • Australia Customer
  • South America Customer
