Roofing Sheet Forming Machine India
Roofing Sheet Forming Machine India
Roofing Sheet Forming Machine India

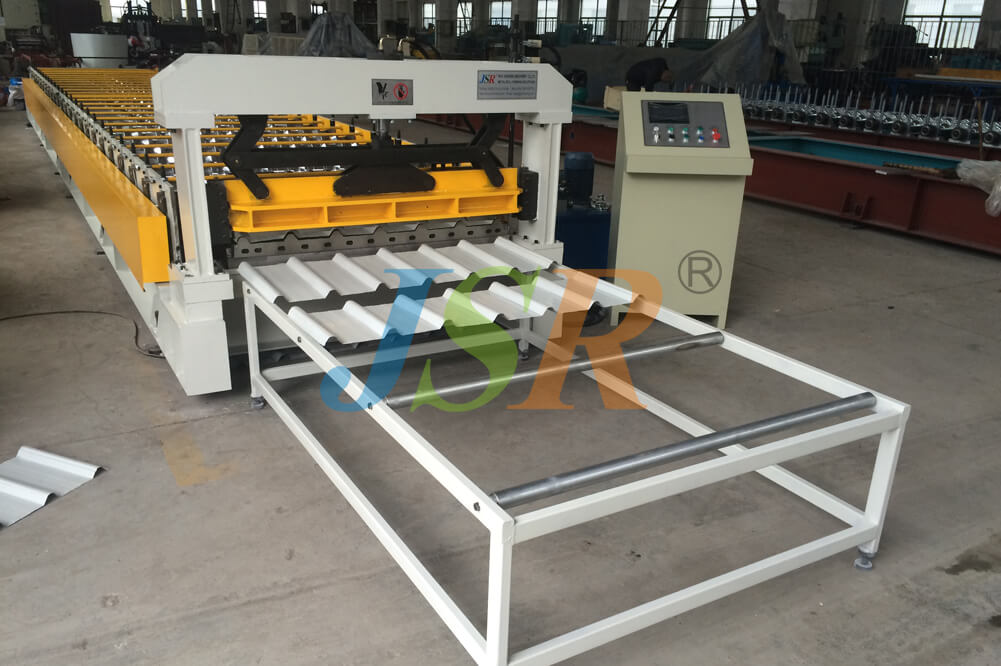

This roofing sheet machines are very popular in India, rolling sheets for TATA,JSW Feeding width 1220 and 1450mm, ( only feed different width raw material, no need to change machine to produce different width roofing cladding) Thickness 0.3-0.8mm(to produce different thickness, no need to change machine) Yield strength:235Mpa-550Mpa Any length product can be manufactured
  • Advantage
  • Popular profile
  • Application
  • Customer Comment
  • Working video in customer factory
Technical Details
Machine Specifications
Weight About 9000kgs
Size About 11m x 1.7m x 1.5m (length x width x height)
Color Main color: blue
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.8mm
Coil width 1220mm & 1450mm
Yield Strength 235Mpa-550Mpa
Main Technical Parameters
Quantity of forming rollers stations 24
Diameter of forming rollers shafts 80mm
Roll Forming Speed 15-20m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 7.5kw
Hydraulic unit motor power: 3kw
Electric voltage According to customer’s requirement


  • New Profile drawing

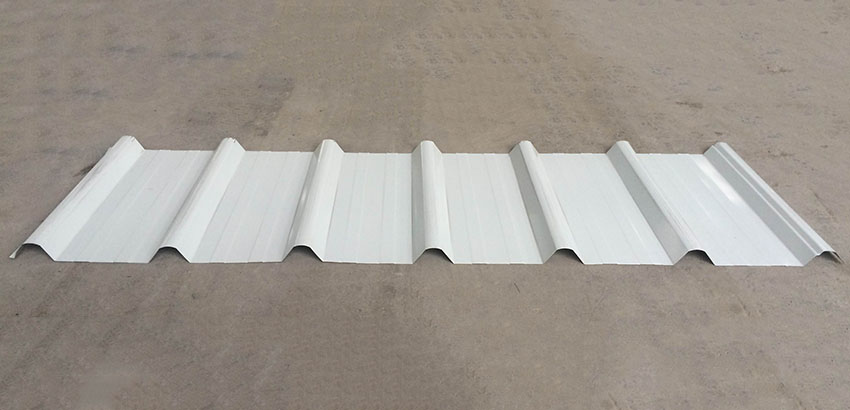

  • Product Sample

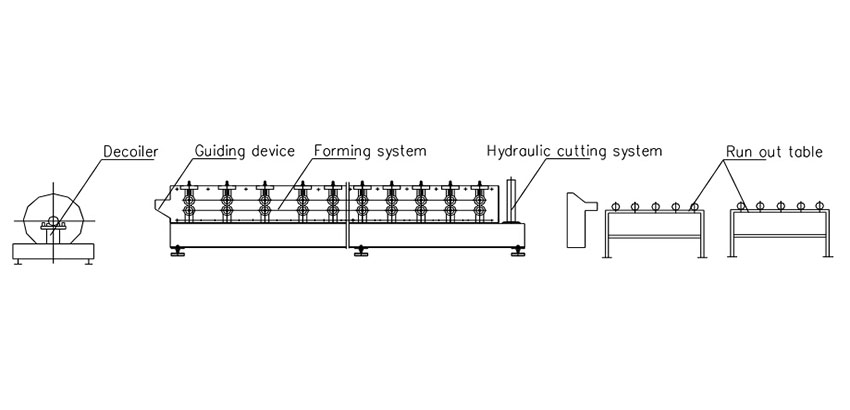

  • Layout drawing of machine (reference only)

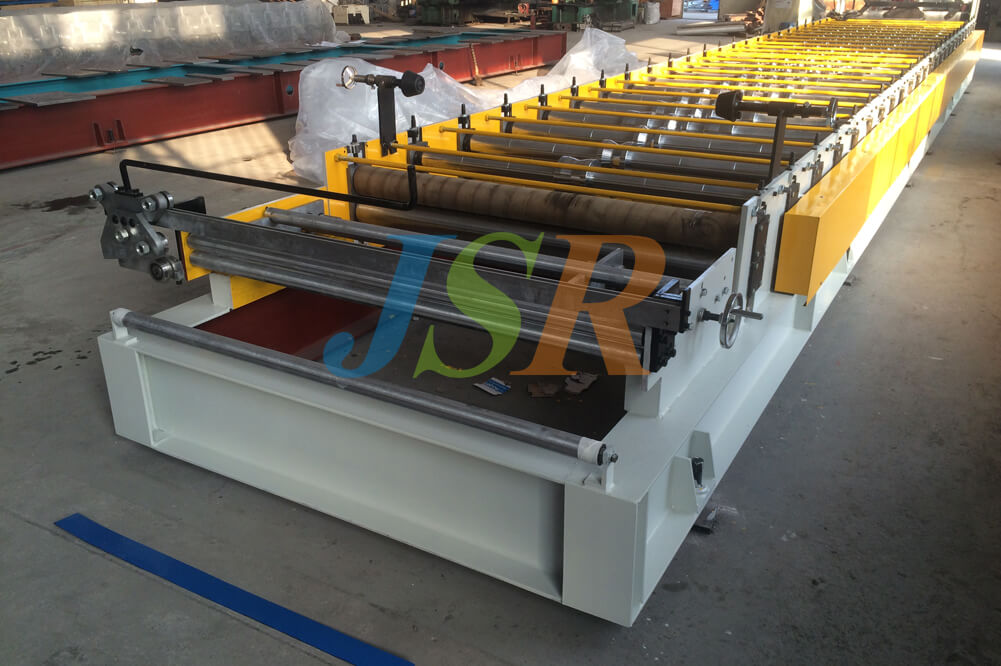

  • Special rollers design, more precise and solid
  • Shaft diameter: 75 or80mm, according to profile
  • Wall plate 18mm thick
  • Mitsubishi PLC and converter
  • Tool box and technical support



  • Corrugated sheet profile
  • Sinusoidal Profile 1064
  • 889 INDUSTRIAL SEVEN PROFILE
  • C21 Profile
  • C35 Profile
  • Corrugated Roof Profile
  • Corrugated Sheet 836
  • IBR
  • Jindal Profile
  • Telha trapezio
  • Trapezoidal Profile 930
  • YX15-225-900
  • YX20-123-984
  • YX24-210-840
  • YX25-143-1001
  • YX26-200-1000
  • YX27-155-930
  • YX27-195-780
  • YX28-200-1000
  • YX30-200-1000
  • YX32-150-900
  • YX32-250-1000
  • YX35-190-950
  • YX35-250-1000
  • YX35-333.3-1000



JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced

Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut - run out
