Roofing Sheet Forming Machine With Fly Cut
Roofing Sheet Forming Machine With Fly Cut
Roofing Sheet Forming Machine With Fly Cut
roofing panel forming machine with faster speed and high automatical requirement, forming line can equipped with hydraulic decoiler and loading car, non stop fly shear, automatical stacker. only one operator required. you will save a lot money during production and make more roofing panels per day.
  • Advantage
  • Popular profile
  • Application
  • Customer comment
  • working machine video in customer factory
Technical Details
Machine Specifications
Weight About 11000kgs
Size About 12m x 1.7m x 1.5m (length x width x height)
Color Main color: Green
Warning color: yellow
Suitable Raw Material
Material PPGI and PPGL Coils
Thickness 0.3-0.7mm
Coil width 1220mm
Yield Strength 235Mpa-550Mpa
Main Technical Parameters
Quantity of forming rollers stations 22-24
Diameter of forming rollers shafts 75mm
Roll Forming Speed 20-45m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Cutting type Non-stop cutting design (fly cutting)
Electric Power requirement Main motor: 11kw
Servo motor: 2.2kw
Hydraulic unit motor: 5.5kw
Electric voltage According to customer’s requirement

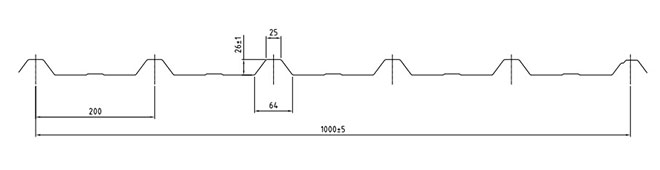

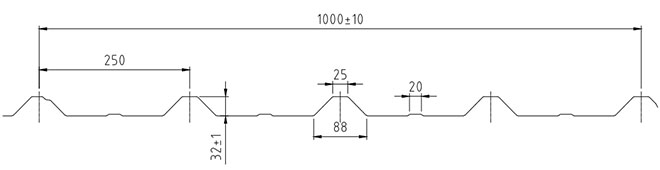

  • Profile drawing

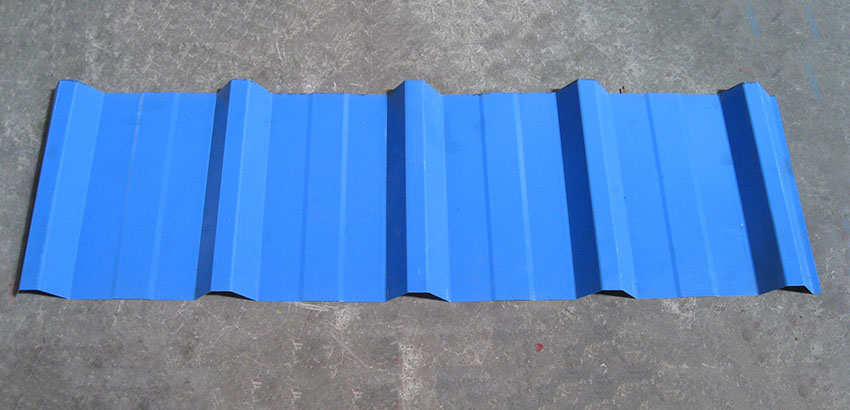

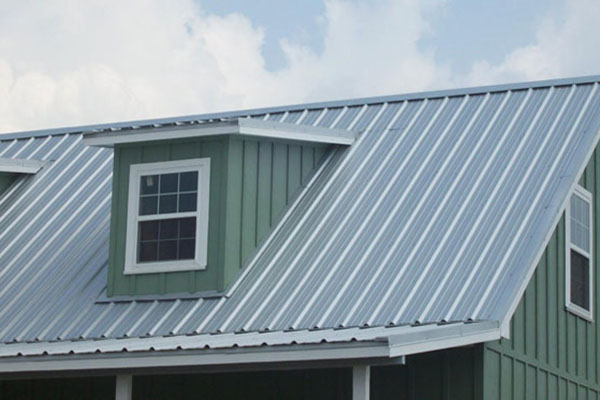

  • End product view

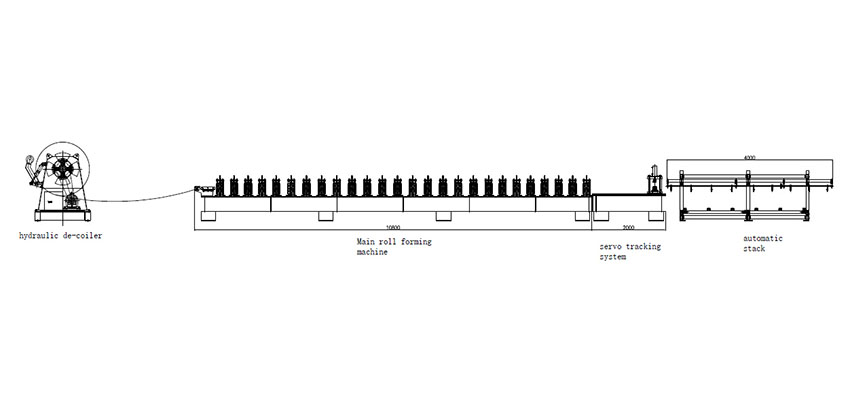

  • Layout drawing of machine (reference only)

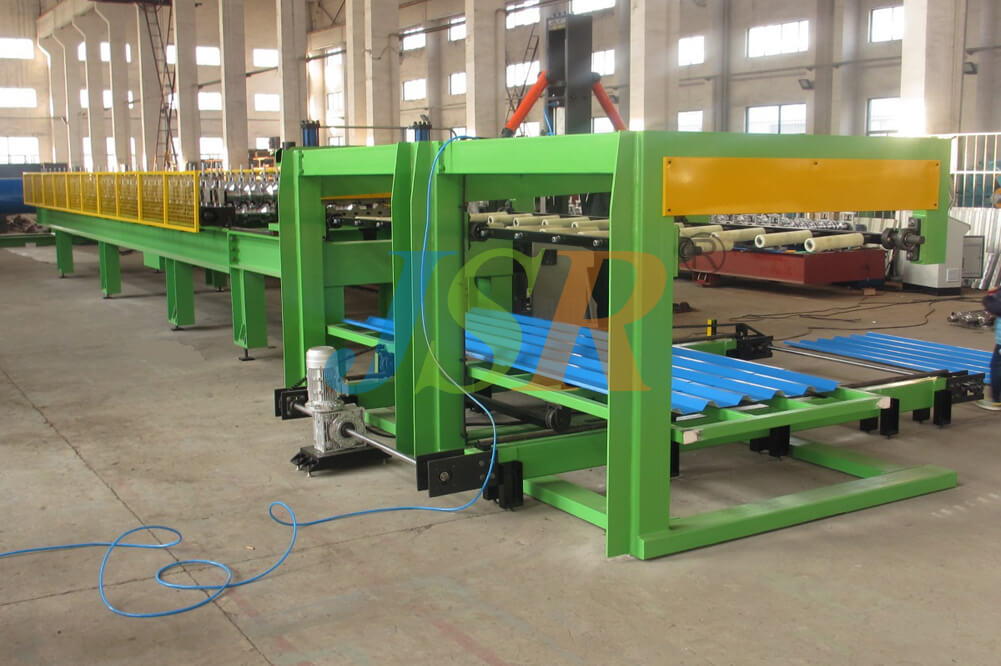

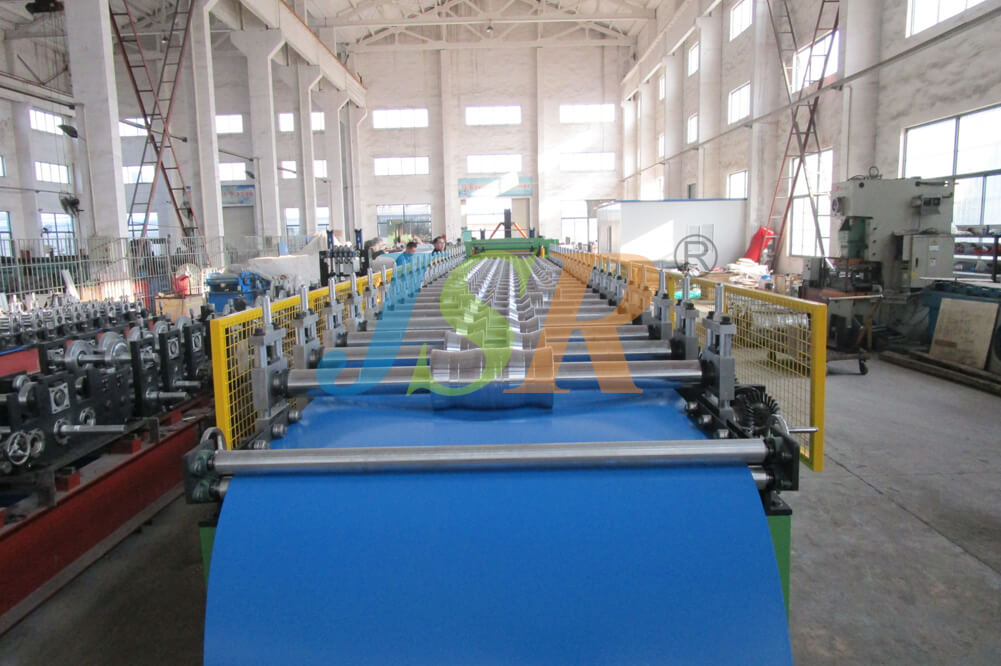

Full automatical fast speed panel forming machine make for LAROSA MACHINERY ,the biggest machine agent in UAE,working speed max to 40m/min from JSR machinery Factory in China

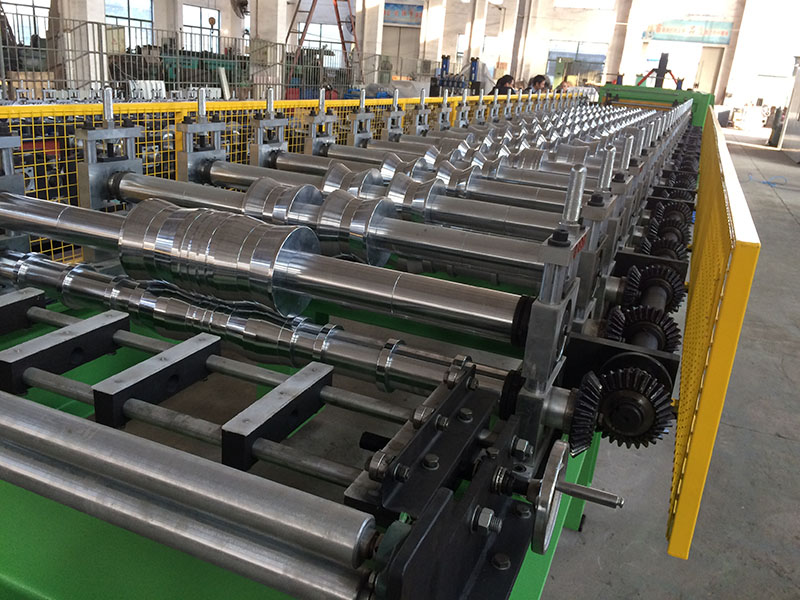

  • Special rollers design, more precise and solid
  • Solid shaft diameter 75 or 80mm according to design
  • Pillar structure and gear transmission
  • Mitsubishi PLC and converter
  • Tool box and technical support

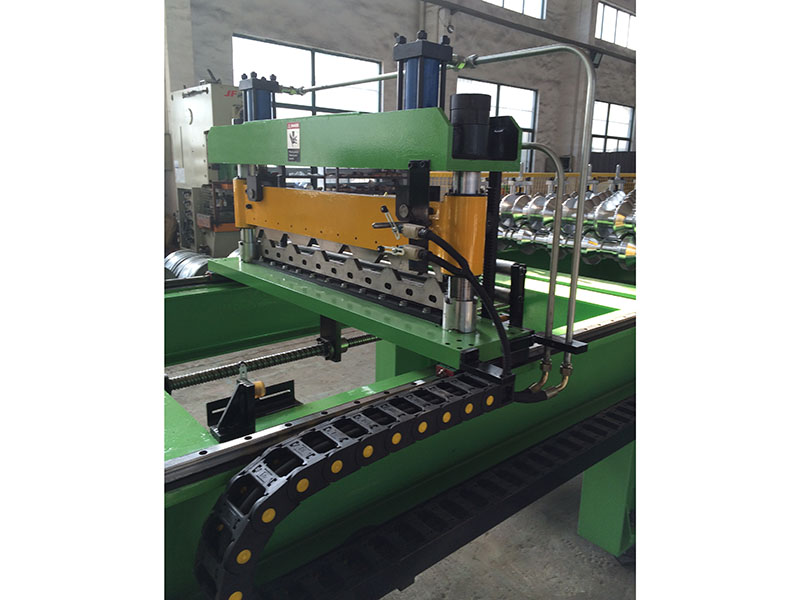

  • Fly cutting system



  • Corrugated sheet profile

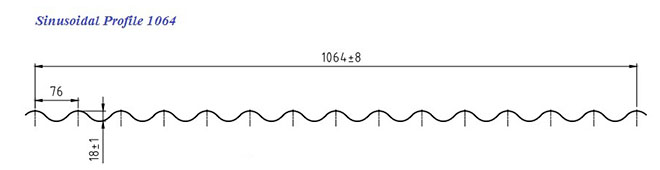

  • Sinusoidal Profile 1064

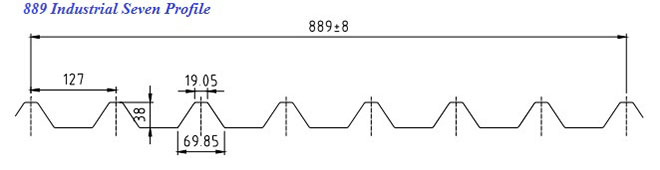

  • 889 INDUSTRIAL SEVEN PROFILE

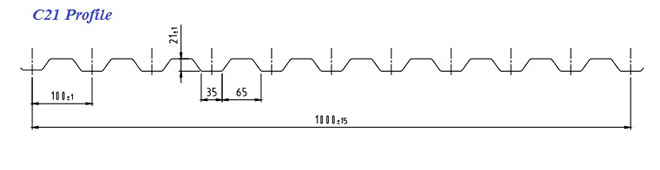

  • C21 Profile

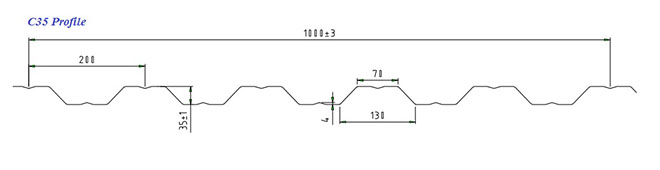

  • C35 Profile

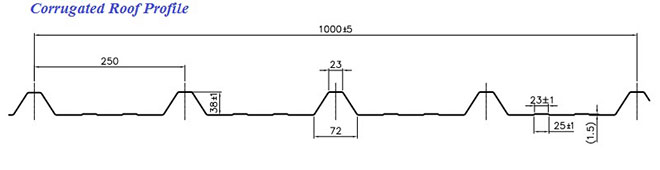

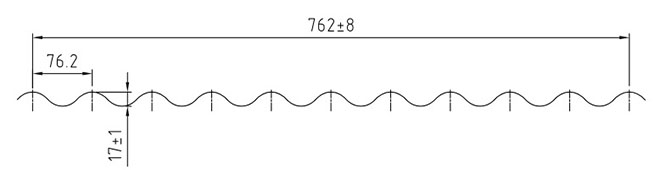

  • Corrugated Roof Profile

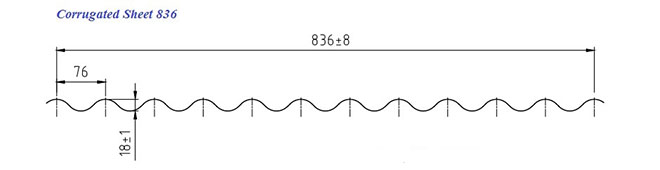

  • Corrugated Sheet 836

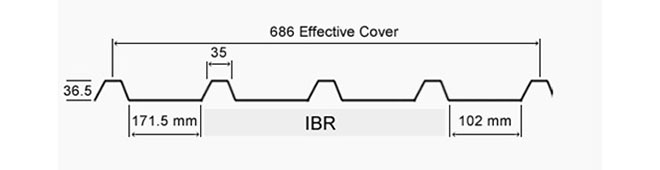

  • IBR

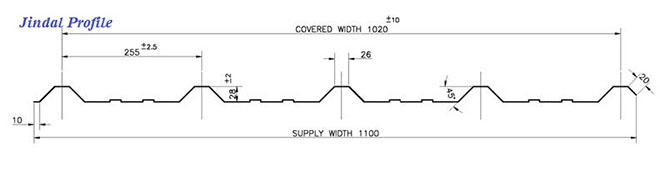

  • Jindal Profile

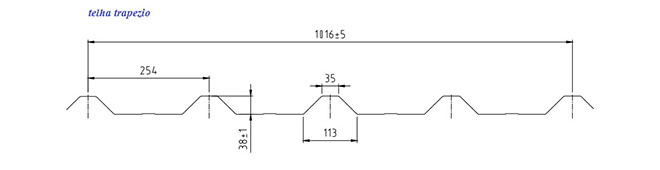

  • Telha trapezio

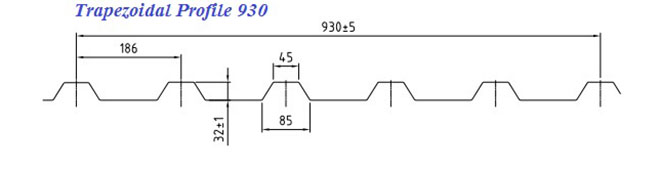

  • Trapezoidal Profile 930

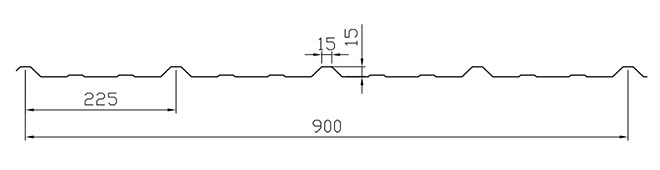

  • YX15-225-900

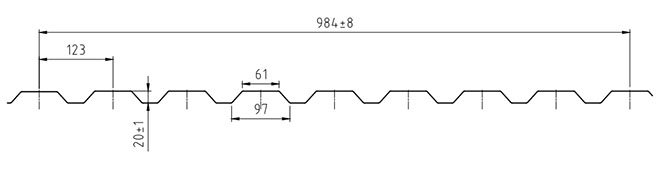

  • YX20-123-984

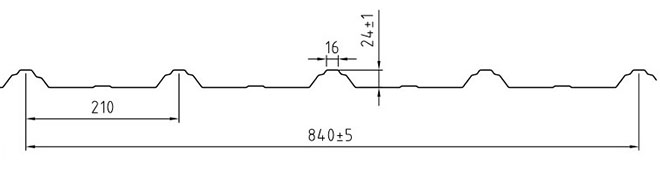

  • YX24-210-840

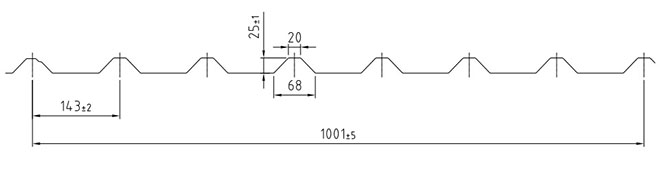

  • YX25-143-1001
  • YX26-200-1000

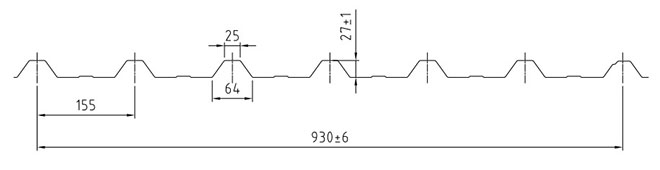

  • YX27-155-930

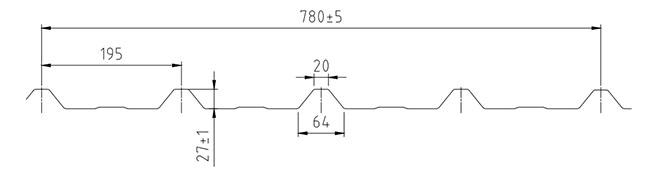

  • YX27-195-780
  • YX28-200-1000

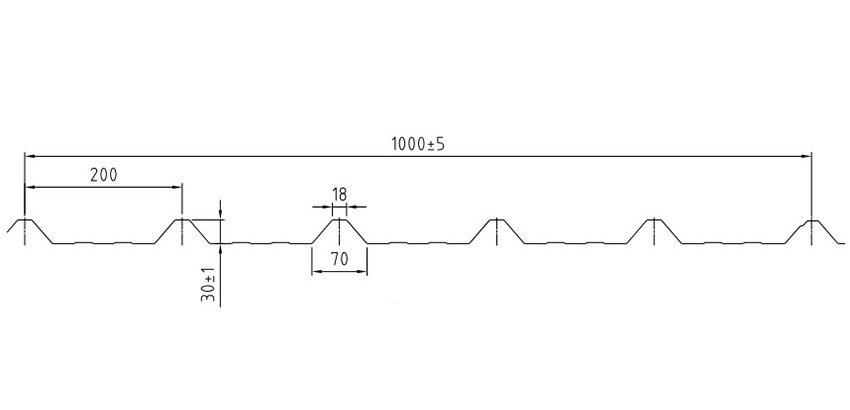

  • YX30-200-1000

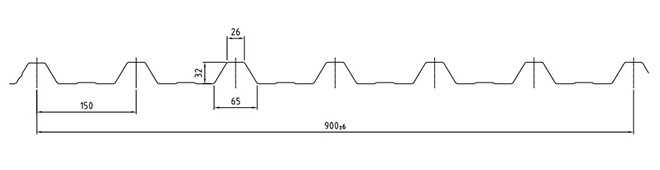

  • YX32-150-900
  • YX32-250-1000

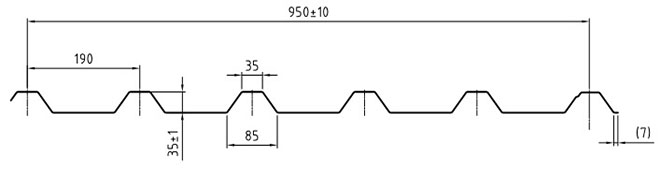

  • YX35-190-950

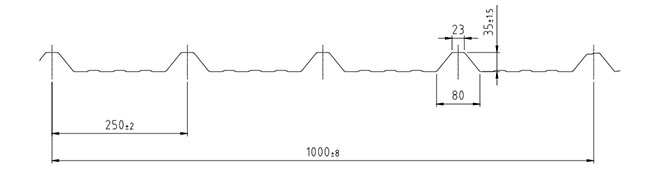

  • YX35-250-1000

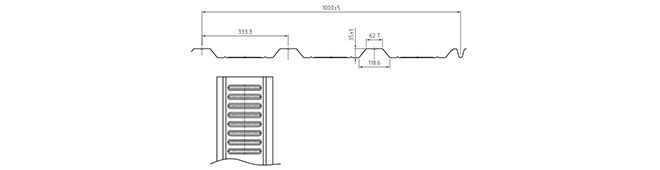

  • YX35-333.3-1000



JSR Machinery factory will design roofing machines according to your roofing profile or design, and Pre-engineered metal building advantages:
1 durable
2 withstand servere conditions.
3 low cost
4 low initial investment and low maintain cost
5 environment friendly
6 all the material can be recycled
7 flexible design
8 can relocate
9 install time considerably reduced

Operate easily , work automatically with PLC controller control.
Decoiler- forming-cut - run out


  • India Customer
  • Australia Customer
  • South America Customer
fast speed roofing sheet forming line works in Bengal

if you dont have your requirement for speed and automatical degree ,

we suggest you economic forming machines,

they make same quality metal sheets.

roofing sheet making machine in INDIA
MINI ORB PROFILE FENCE PANEL MACHINE IN MALYSIA
IBR sheet roll forming machine in Malawi
trapezoidal laminas roll former in Colombia
