Technical Details

The Line’s Specifications
Weight	About 38000kgs
Whole line’s dimension	About 30m x 3m x 1.5m (length x width x height)
Color	Main color: green
	Warning color: yellow
Suitable Raw Material
Material	Galvanized or Galvalume Coils
Thickness	1-1.5mm
Coil width	According to products size
Yield Strength	235Mpa
Main Technical Parameters
Quantity of forming rollers stations	About 16
Diameter of forming rollers shafts	75mm
Roll Forming Speed	10-15m/min
Production Speed	4m/min
Forming rollers material	Gcr15 mould steel, with quenched treatment
Cutter material	CR12 mould steel, with quenched treatment
Controlling system	Panasonic PLC and Yaskawa Converter
Electric Power requirement	Main motor power: 15kw
	Hydraulic unit motor power: 15kw
Electric voltage	According to customer’s requirement
Main Components

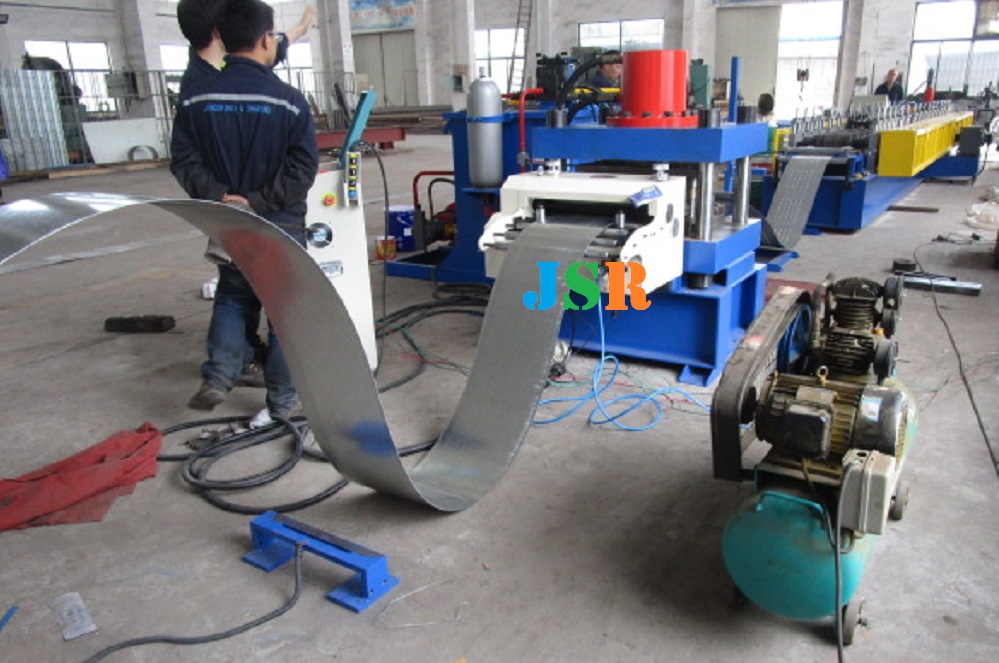

Decoiler (manual and automatic for options)	1 set
Guiding device	1 set
Leveling system	1 set

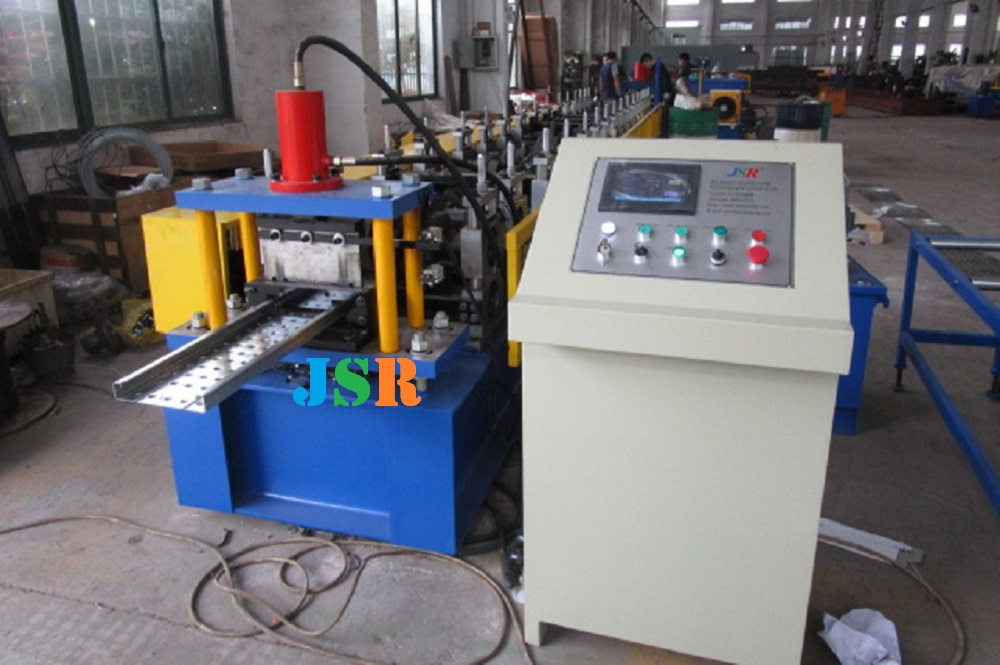

Punching machine	1 set
Roll Forming system	1 set
Hydraulic Cutting system	1 set
PLC control box	1 set
Hydraulic unit	1 set
Run outs tables	1 set

•

• Layout drawing of machine for reference

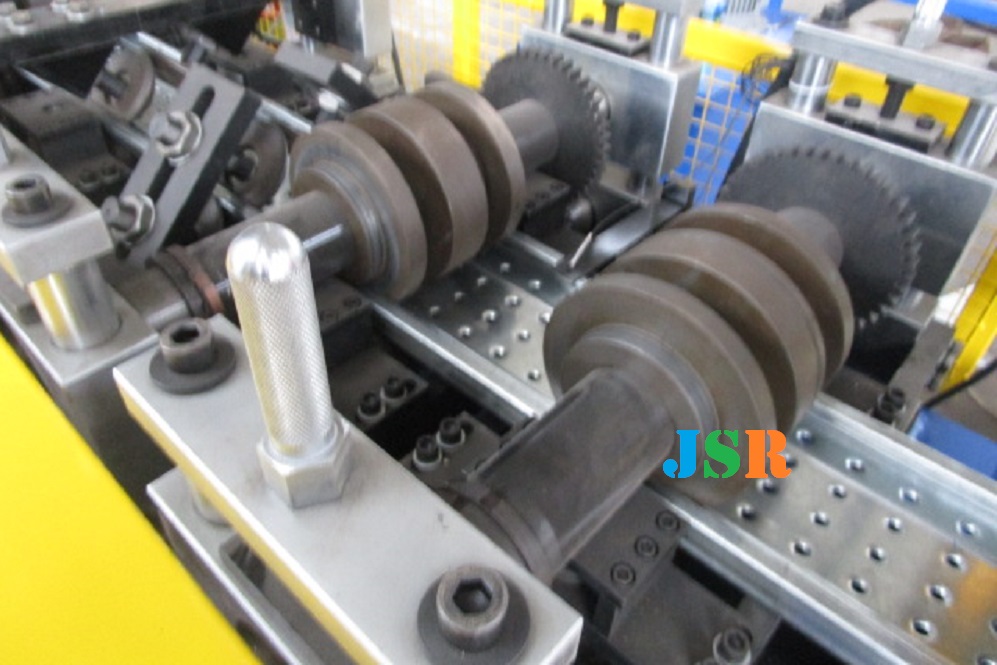

• Special rollers design, more precise and solid
• Solid Shaft diameter: 75 mm according to profile
• Mitsubishi PLC and converter
• Tool box and technical support
•

•

•


The main function of steel plank is providing the studio for the workers. There are anti-sliding hole and drainage hole on it.

JSR machinery factory manufacture scaffolding planks forming machine professionally.
If machine with punch machine, working speed about 10m/min,
If machine with hydraulic punch, working speed about 4m/min,
Gearbox can be designed in the machine for transmision.

Operate easily , work automatically with PLC controller control.
Decoiler-Punch- forming -cut - run out
