Tile Profile Sheet Forming Machine
Tile Profile Sheet Forming Machine
Tile Profile Sheet Forming Machine
JSR Machinery factory makes tile roll forming machine with high precision, each step length same , so tile sheet connect one by one (left and right) perfectly to water proof, working speed about 6m/min
  • Advantage
  • Popular profile
  • Application
  • Customer Comment
  • working video in customer factory
Technical Details
Machine Specifications
Weight About 9000kgs
Size About 10m x 1.8m x 1.5m (length x width x height)
Suitable Raw Material
Material Pre-painted Galvanized Steel Coils
Thickness 0.4-0.6mm
Coil width 1220mm
Yield Strength 235Mpa
Main Technical Parameters
Diameter of forming rollers shafts 75mm
Roll Forming Speed 10-15m/min
Production Speed 3-4m/min
Forming rollers material No.45 steel, coated with chromed treatment
Cutter material CR12 mould steel, with quenched treatment
Controlling system PLC and Converter
Electric Power requirement Main motor power: 5.5kw
Hydraulic unit motor power: 11kw
Electric voltage According to customer’s requirement

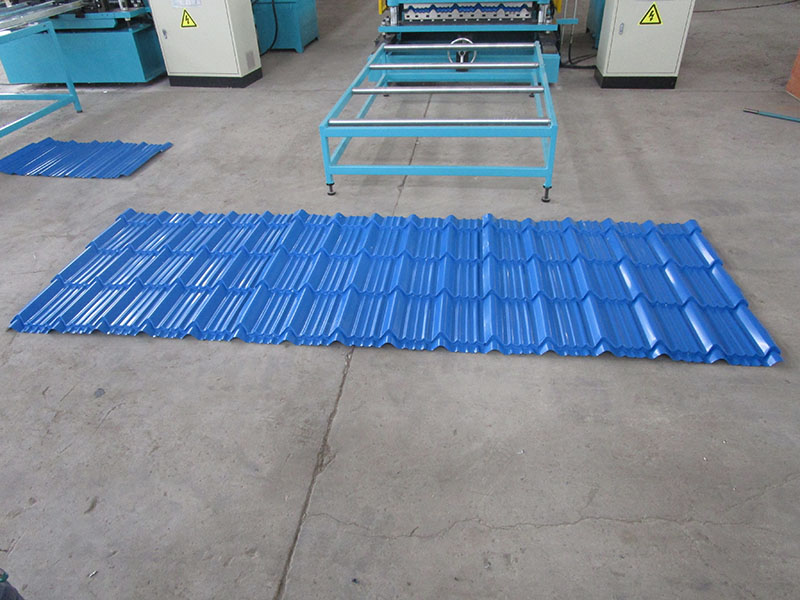

  • Product sample

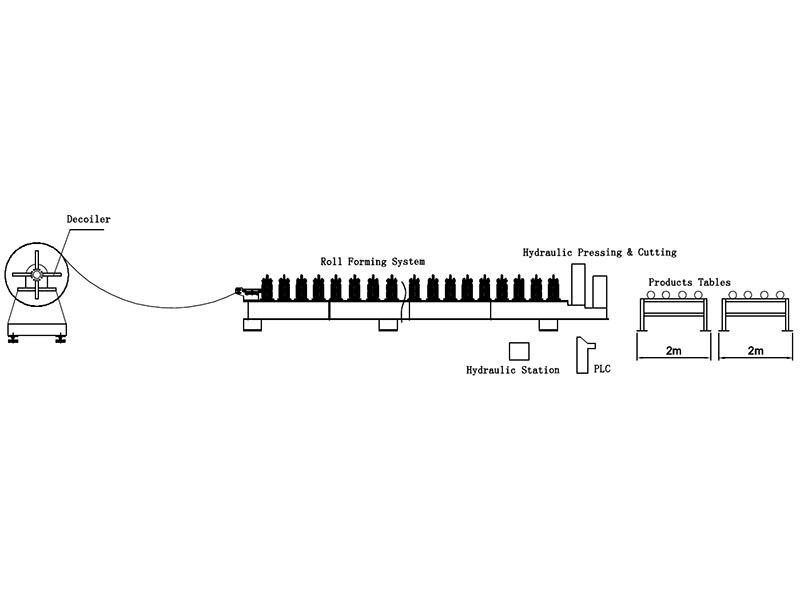

  • Layout drawing of machine (reference only)

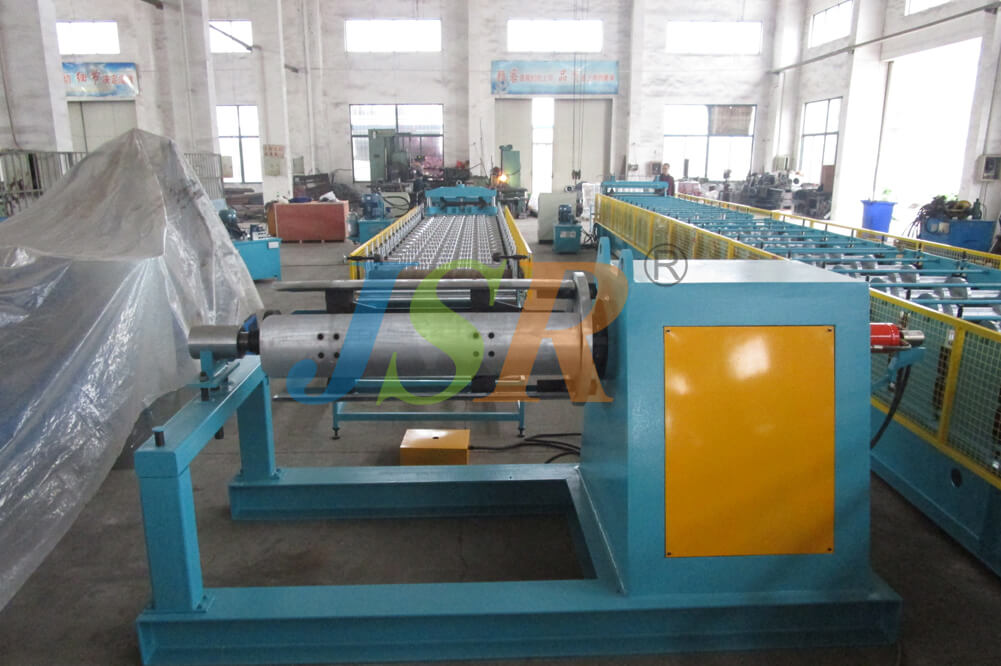

roofing tile making machine include 5 ton manual decoiler, forming machine with press and cut device ,11kw hydraulic station to make press and cut, mitsubishi control.

if you need tile machine more automatically, machine can equip with hydraulic decoiler and automatical stacker.

tile sheet roll former working speed about 6m/min

forming line make exact same step length


  • Sold shaft diameter 75mm
  • Mitsubishi PLC and converter
  • Tool box and technical support




  • 25-183.3-1100
  • 950 tile profile
  • Metrocopo 900
  • Metrocopo 960
  • metrocopo sheet
  • profile drawing
  • Tile & Roof Profile
  • Tile 800
  • Tile 997.5
  • Tile 1100
  • Tile Profile 833
  • YX29-216-1080
  • YX31-144-1008 Tile
  • YX42-200-1000 tile



JSR tile forming machine can produce steel sheet tile, which is light weight, durable and beautiful.
Now, we improve machine working speed to 4m/min (include press and cut).

Operate easily , work automatically with PLC controller control.
Decoiler- forming- press -cut - run out


  • India Customer
  • Australia Customer
  • South America Customer

tile forming machine in India

steptile forming machine in guatemala

galvateja machine in mexico

glazed tile machine in brazil
